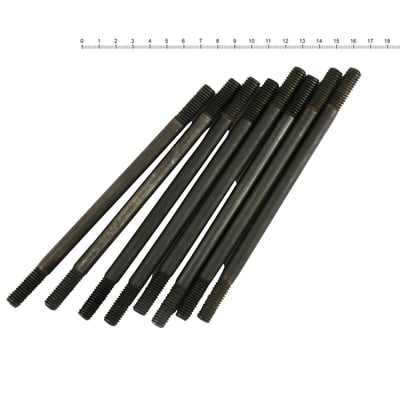

- STD length replacement High Performance cylinder studs
- Made from Nickel Chrome Moly 8740 material
- 180,000 psi yield strength, fine grain
- Threads are rolled for maximum strength and heat treated
- Black oxide corrosion resistant finish
- Entire body is centerless ground to insure concentricity and remove notch sensitivity

Kpmi, cylinder stud set

#524581

Stock:Yes

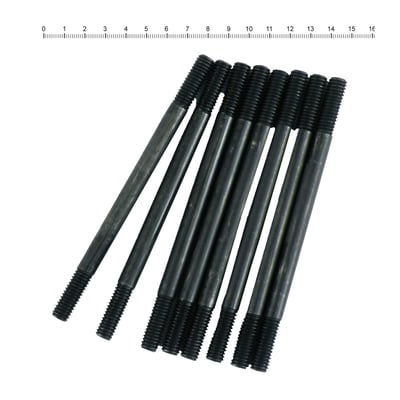

- STD length High Performance Cylinder studs
- Made from Nickel Chrome Moly 8740 material
- 180,000 psi yield strength, fine grain
- Threads are rolled for maximum strength and heat treated
- Black oxide corrosion resistant finish
- Entire body is centerless ground to insure concentricity and remove notch sensitivity
- OEM replacement reference 16832-86C

Kpmi, cylinder stud set

#524580

Stock:Yes

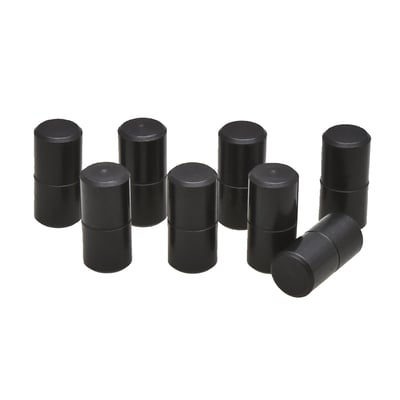

Heat treaded black oxide coated steel. Oversized at one side. Oversized Diameter on one side. 0.250" and other side is 0.252" x 0.500" long. Standard size: 0.250" diameter x 0.500" long.
Oversize replacement for OEM 358.

KPMI, dowel pin. Case to case & case to cylinder. Oversize

#587282

Stock:Yes

Steel upper valve spring collars. Installed spring pressure 165 lbs. Kibblewhite Precision Engineering racing valve spring kit for standard 7mm diameter valve stems. Chrome multiple-parts silicone spring set, steel top collars and steel lower collars. Includes valve seals.

Note: Does not include a valve key set, OEM must be re-used.
Note: See 524994 for replacement valve seals.

KPMI, valve spring kit. .630" lift. Steel top collars

#524645

Stock:Yes

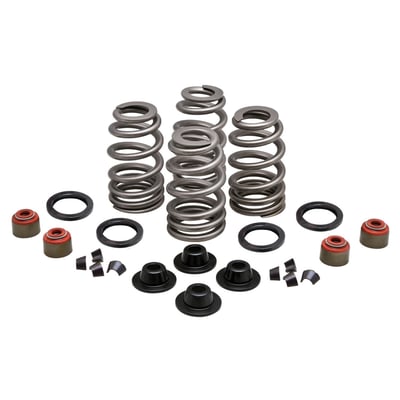

With steel top & lower collars. Reduces total valve train mass. Great for stock & moderate performance builds. The one-piece Beehive style springs are manufactured from the highest quality clean chrome silicone wire, shot peened and heat treated for maximum fatigue life. Kit includes steel upper collars, lower collars, valve keys and seals. Works with stock 7mm valve stems. Max valve lift: .660". Installed height: 1.860". Seat pressure 178 lbs. Open pressure: 371 lbs. @ .660" valve lift.

Note: See 524994 for replacement valve seals.

Kpmi, beehive valve spring kit .630 lift

#524625

Stock:Yes

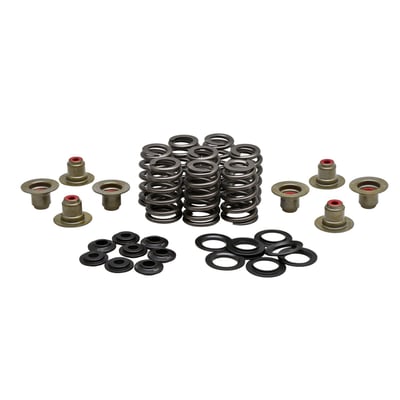

Includes steel top collars, chrome siilicone Beehive style springs and OEM style KPMI manufactured red Viton valve seals. Installed height 1.550". Installed spring pressure 85 lbs. Open pressure 257 lbs@.550 valve lift. Compatible with standard 6mm valve stem diameter.

Note: Does not include valve keys, OEM valve keys can be re-used.

KPMI, .550" high lift valve spring kit. Steel

#588696

Stock:Yes

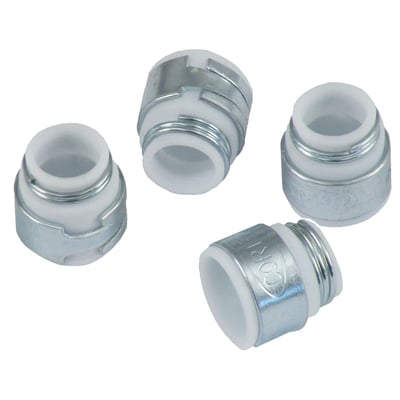

Manufactured with PTFE lining. Kibblewhite Precision Machining valve guide seals are compatible with OEM style valve guides. No machining required.
Installation note:
Valve guides made of PTFE require another fitment technique than 'regular' or non-PTFE valve guides, this is due to the PTFE material. They are typically 0.020” (0.50mm) smaller than the valve stem and guide top they’re designed to fit.
- The guide top should have a decent chamfer
- The valve stem should have a decent chamfer, but a mylar seal installation protector / installation capsule (501823 green 5/16" / 0.3125", 501824 Yellow 11/32" / 0.34375", 501825 3/8" / 0.375") is advised for easier installation over the valve stem
- You have to kind of roll the seal around the valve tip while exerting downward pressure to get it started
- Don't push directly on the very top of the seal to get it on to the guide, you’ll collapse the sealing area and tear the seal
- A 12 point 12mm socket catches the shoulder of the guide pretty well and can be used to push the seal on to the guide until it just bottoms out.
The choker wire around sealing area and the band around the area that fits the guide, combined with the hardness of the material itself makes the seal a tight fit and little harder to install than regular Viton seals. PTFE material does not have 'memory' and therefore is subject to creep. This creep allows the seal to conform to mating surfaces. Because of the ‘creep’ characteristic, the seal relaxes a bit after installation, and doesn’t drag on the valve stem as hard as it does during installation. The twin-spring design provides continuous tension on the valve guide and the valve stem of the valve during it's lifetime.

KPMI, int/exh. valve guide seal kit. PTFE

#524577

Stock:Yes

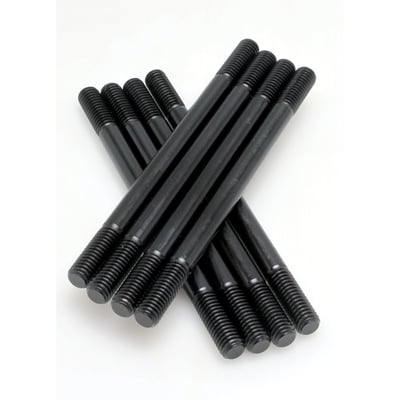

- STD length replacement High Performance cylinder studs
- Made from Nickel Chrome Moly 8740 material
- 180,000 psi yield strength, fine grain
- Threads are rolled for maximum strength and heat treated
- Black oxide corrosion resistant finish
- Entire body is centerless ground to insure concentricity and remove notch sensitivity
- OEM replacement reference 16800063.

KPMI, M8 cylinder stud set

#587240

Stock:Yes

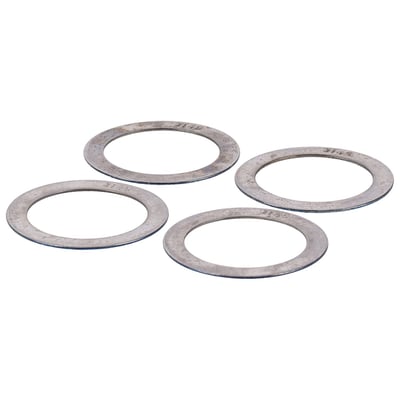

1.438 OD x 1.059 ID

KPMI shims, spring, universal

#559458

Stock:Yes

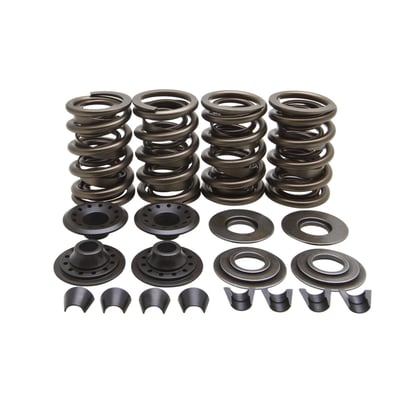

High lift high pressure spring kit. Reduces total valve train mass. Great for high performance & racing performance builds. The dual springs are manufactured from the highest quality clean chrome silicone wire, shot peened and heat treated for maximum fatigue life. Kit includes dual springs with internal damper to give a wider range of harmonic reduction, upper collars, lower collars, valve keys and seals. Max valve lift: .655". Installed height: 1.810". Seat pressure 185 lbs. Open pressure: 450 lbs. @ .655" valve lift.

KPMI, valve spring kit. .655" lift. Steel top collars

#524513

Stock:Yes

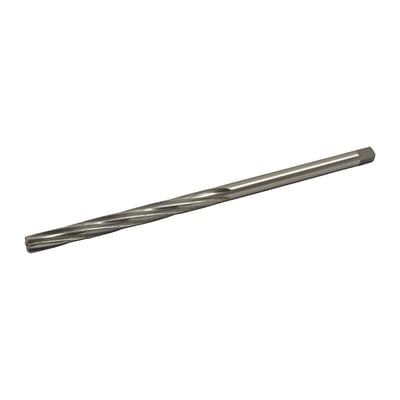

.2770" - 7mm (7.0358mm); For cast iron, manganese bronze, C630 bronze & Ampco-45 bronze valve guides

Kpmi, valve guide reamers 0.2770 hss

#525721

Stock:Yes

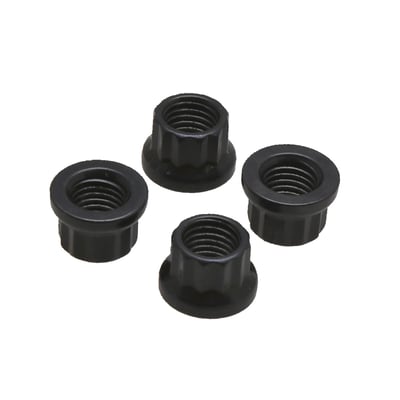

Replacement for 587241 KPMI rocker arm tower studs and nuts kit. 5/16-24 UNF threaded, one-piece with washer. High tensile strength aicraft alloy steel. Single point machined with close tolerance and a smooth surface. Black oxide finished.

KPMI, nuts for rocker arm to tower studs. 4-pk

#587242

Stock:Yes

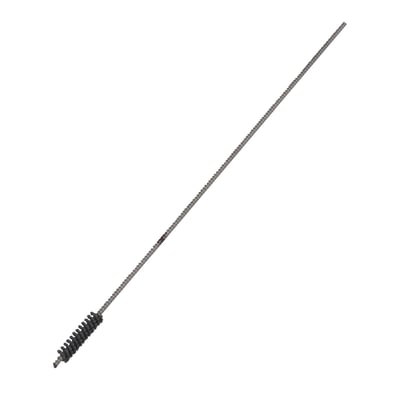

For cast iron, manganese bronze, C630 bronze & Ampco-45 bronze; Used to finish hone to correct tolerance

Kpmi, valve guide hone, 4mm

#524529

Stock:Yes

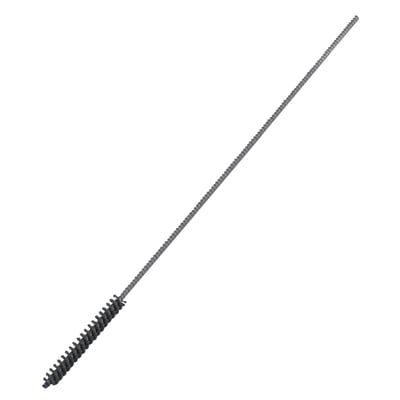

For cast iron, manganese bronze, C630 bronze & Ampco-45 bronze; Used to finish hone to correct tolerance

Kpmi, valve guide hone, 5mm

#524531

Stock:Yes

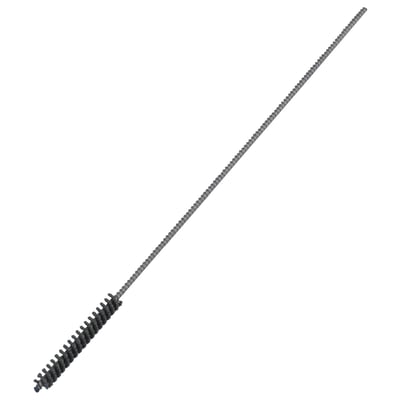

For cast iron, manganese bronze, C630 bronze & Ampco-45 bronze; Used to finish hone to correct tolerance

Kpmi, valve guide hone, 5.5mm

#524532

Stock:Yes

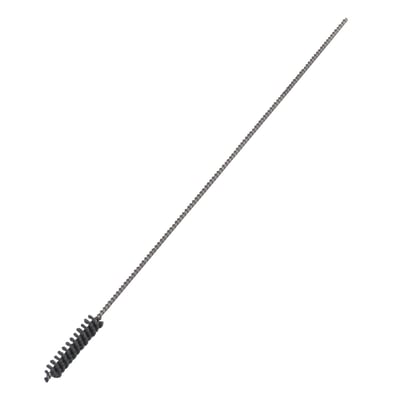

For cast iron, manganese bronze, C630 bronze & Ampco-45 bronze; Used to finish hone to correct tolerance

Kpmi, valve guide hone, 4.5mm

#524530

Stock:Yes

Solid Viton rubber, with metal jacket and choker spring. Stem diameter: 6mm, valve guide diameter: 0,385"; over all length of seal: 0,371"; outside diameter of seal: 0,480". Kibblewhite Precision Machining custom valve stem seals are a quality product and suitable for any and all custom application.
Note: Below mentioned valve stem diameters are for reference only.
- 36-84 B.T. = 3/8" (.3750")
- 57-83 XL intake = 0.3090"
- 57-83 XL exhaust = 0.3384"
- 84-04 B.T.; 86-03 XL = 5/16" (.311")
- 05-16 TCA/B; 04-22 XL; 08-12 XR = 7mm (.2760")
- 02-17 V-Rod = 6mm (0.2345")
- 17-24 M8 = 6mm (0.2345")

KPMI, custom valve guide seals. Viton

#524546

Stock:Yes

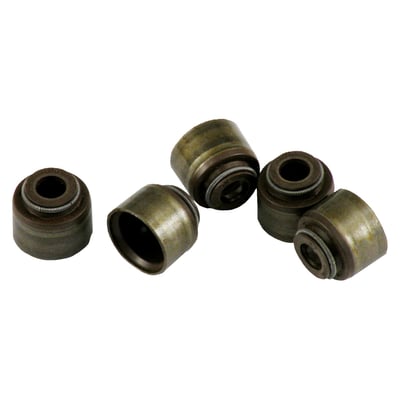

Solid Viton rubber, with metal jacket and choker spring. Stem diameter: 7mm, valve guide diameter: 0,435"; over all length of seal: 0,517"; outside diameter of seal: 0,550". Kibblewhite Precision Machining custom valve stem seals are a quality product and suitable for any and all custom application.
Note: Below mentioned valve stem diameters are for reference only.
- 36-84 B.T. = 3/8" (.3750")
- 57-83 XL intake = 0.3090"
- 57-83 XL exhaust = 0.3384"
- 84-04 B.T.; 86-03 XL = 5/16" (.311")
- 05-16 TCA/B; 04-22 XL; 08-12 XR = 7mm (.2760")
- 02-17 V-Rod = 6mm (0.2345")
- 17-24 M8 = 6mm (0.2345")

KPMI, custom valve guide seals. Viton

#524547

Stock:Yes

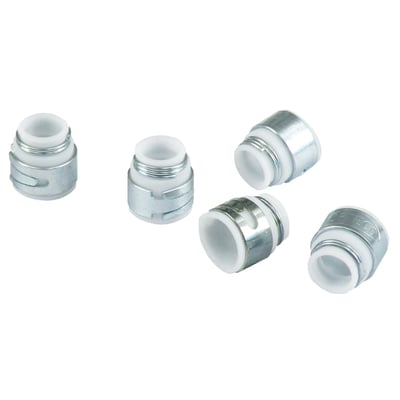

Solid PTFE, with metal band and choker spring. Stem diameter: 5/16" (0.311"). Valve guide diameter: 0.415". Over all length of seal: 0.517". Outside diameter of seal: 0.510". Kibblewhite Precision Machining custom valve stem seals are a quality product and suitable for any and all custom applications.
Note: Below mentioned valve stem diameters are for reference only.
- 36-84 B.T. = 3/8" (.3750")
- 57-83 XL intake = 0.3090"
- 57-83 XL exhaust = 0.3384"
- 84-04 B.T.; 86-03 XL = 5/16" (.311")
- 05-16 TCA/B; 04-22 XL; 08-12 XR = 7mm (.2760")
- 02-17 V-Rod = 6mm (0.2345")
- 17-24 M8 = 6mm (0.2345")
Installation note:
Valve guides made of PTFE require another fitment technique than 'regular' or non-PTFE valve guides, this is due to the PTFE material. They are typically 0.020” (0.50mm) smaller than the valve stem and guide top they’re designed to fit.
- The guide top should have a decent chamfer
- The valve stem should have a decent chamfer, but a mylar seal installation protector / installation capsule (501823 green 5/16" / 0.3125", 501824 Yellow 11/32" / 0.34375", 501825 3/8" / 0.375") is advised for easier installation over the valve stem
- You have to kind of roll the seal around the valve tip while exerting downward pressure to get it started
- Don't push directly on the very top of the seal to get it on to the guide, you’ll collapse the sealing area and tear the seal
- A 12 point 12mm socket catches the shoulder of the guide pretty well and can be used to push the seal on to the guide until it just bottoms out.
The choker wire around sealing area and the band around the area that fits the guide, combined with the hardness of the material itself makes the seal a tight fit and little harder to install than regular Viton seals. PTFE material does not have 'memory' and therefore is subject to creep. This creep allows the seal to conform to mating surfaces. Because of the ‘creep’ characteristic, the seal relaxes a bit after installation, and doesn’t drag on the valve stem as hard as it does during installation. The twin-spring design provides continuous tension on the valve guide and the valve stem of the valve during it's lifetime.

KPMI, custom valve guide seals. PTFE

#524536

Stock:Yes

Solid PTFE, with metal band and choker spring. Stem diameter: 5/16" (0.311"). Valve guide diameter: 0.425". Over all length of seal: 0.386". Outside diameter of seal: 0,512". Kibblewhite Precision Machining custom valve stem are a quality product and suitable for any and all custom application. Kibblewhite Precision Machining custom valve stem seals are a quality product and suitable for any and all custom applications.
Note: Below mentioned valve stem diameters are for reference only.
- 36-84 B.T. = 3/8" (.3750")
- 57-83 XL intake = 0.3090"
- 57-83 XL exhaust = 0.3384"
- 84-04 B.T.; 86-03 XL = 5/16" (.311")
- 05-16 TCA/B; 04-22 XL; 08-12 XR = 7mm (.2760")
- 02-17 V-Rod = 6mm (0.2345")
- 17-24 M8 = 6mm (0.2345")
Installation note:
Valve guides made of PTFE require another fitment technique than 'regular' or non-PTFE valve guides, this is due to the PTFE material. They are typically 0.020” (0.50mm) smaller than the valve stem and guide top they’re designed to fit.
- The guide top should have a decent chamfer
- The valve stem should have a decent chamfer, but a mylar seal installation protector / installation capsule (501823 green 5/16" / 0.3125", 501824 Yellow 11/32" / 0.34375", 501825 3/8" / 0.375") is advised for easier installation over the valve stem
- You have to kind of roll the seal around the valve tip while exerting downward pressure to get it started
- Don't push directly on the very top of the seal to get it on to the guide, you’ll collapse the sealing area and tear the seal
- A 12 point 12mm socket catches the shoulder of the guide pretty well and can be used to push the seal on to the guide until it just bottoms out.
The choker wire around sealing area and the band around the area that fits the guide, combined with the hardness of the material itself makes the seal a tight fit and little harder to install than regular Viton seals. PTFE material does not have 'memory' and therefore is subject to creep. This creep allows the seal to conform to mating surfaces. Because of the ‘creep’ characteristic, the seal relaxes a bit after installation, and doesn’t drag on the valve stem as hard as it does during installation. The twin-spring design provides continuous tension on the valve guide and the valve stem of the valve during it's lifetime.

KPMI, custom valve guide seals. PTFE

#524537

Stock:Yes
