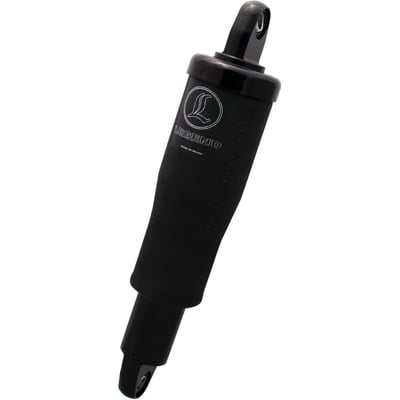

Identical to the regular Aero air suspension but this kit is supplied with a manual hand pump only. To upgrade the Aero HVG to on-the-fly adjustability.
The latest developments in air suspension for H-D models, offering one of the best rides man could wish for. Comes self adjusting deflective disc dampening and the latest Aramid Fiber air spring technology to maximize travel and provide full adjustable ride height at the same time. It's like having 12" and 13" shocks in one. Smooth no-stick damping due to low friction seals and quick reactions on fluid flow management with High Flow fluid pistons.
- Air suspension offers a number of benefits over coil springs, particularly with adjustability
- Lower your seat height while parked
- Switch between 1-up and 2-up riding
- Get that cool, low look
- Air suspension handles it all.
Note: A compressor kit, complete with under chassis mount, handlebar compressor operating switch, plug-in wiring and 3 Deutsch connectors is available as 954741.

Legend, Air HGV air suspension. Black

#954737

Stock:Yes

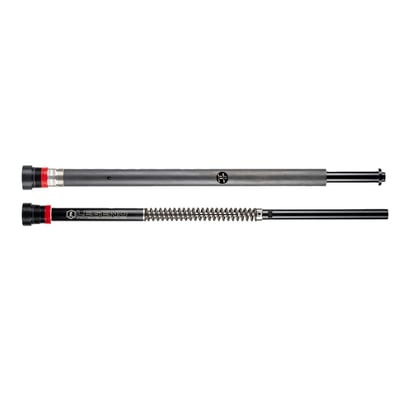

Replaces the asymmetrical stock fork internals with a high-performance twin cartridge set. This set includes two mono-tube, dual-chambered damper cartridges, a performance rate spring set and a machined 303 Stainless threaded pre-load adjuster. The internal linear spring guide and polyurethane bump stops are unique to this Legend Axeo43 system. the ride quality is smooth and controlled. Improves stability, cornering, and traction. Eliminates front-end dive during aggressive braking and maneuvering. Firm feel for high-speed sweeping turns. Eliminates bottoming out on large bumps or potholes. Reduces dragging floorboards and pegs. Designed for optimum performance with Legend rear suspensions. Designed to be used with stock diameter front wheels. Easy installation.
Note: Incorporates static sag to shorten overall fork tube length by approximately 1/2″, resulting in weight transfer to the front wheel for improved handling.
Note: Does not fit Softails with conventional forks.

Legend, 43mm Axeo inverted fork cartridge set

#704748

Stock:Yes

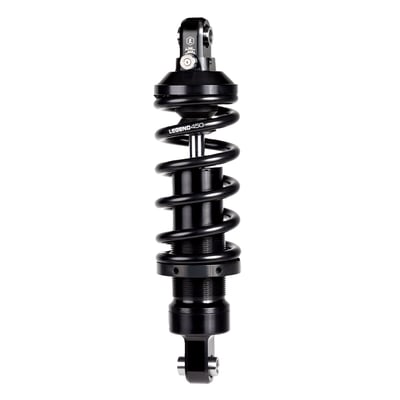

Black Type III hard coat anodized finish.
Adjustable preload for rider setup also allows for minimal pre-load adjustment when changing between rider’s weights and loads. Features adjustable rebound damping that is specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob. Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind. Hard anodized, 46mm billet aluminum monotube design with a lightweight high-flow piston design for improved fluid flow resulting in unmatched handling and bike control. Hard chromed shaft is 14% larger for increased strength. Internal floating nitrogen piston ensures consistent damping performance. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Legend’s durable and low-friction sealing system and sliding bearings provide improved performance and feel. OEM mounting hardware can be reused.
OEM replacement reference 54000138A.
Note: Standard Duty shock is advised for up to 350lbs. (159kg) total loaded weight. A Heavy Duty shock is advised for over 350lbs (159kg) rider/passenger/gear total weight.
Note:: 13″ is the standard length for 18-21 FLHC; 18-24 FLHCS; 22-24 FXLRS; 22-24 FXLRST; 2022 FXRST.

Legend, Revo-A shock set. STD Duty. 13". Black

#706973

Stock:Yes

Designed with a performance spring rate to eliminate front-end dive during aggressive braking and maneuvering. Ride quality is smooth and controlled. Improves stability, cornering, and traction. Firm feel for high-speed sweeping turns. Eliminates bottoming out on large bumps or potholes. Reduces dragging floorboards and pegs Increased pre-load range allows the tuning for various riding styles and weights. With machined 303 Stainless threaded pre-load adjuster. Set includes two mono-tube, dual-chambered damper cartridges, and two rebound springs. Designed for optimum performance with Legend rear suspensions. Forh use with stock diameter front wheels. Easy installation.
Note: Incorporates static sag to shorten overall fork tube length by approximately 1/2″, resulting in weight transferred to the front wheel for improved handling.
Note: Does not fit FLSB/FXDRS/FXFB/FXLRS models with inverted forks.

Legend, 49mm Axeo fork cartridge set

#704747

Stock:Yes

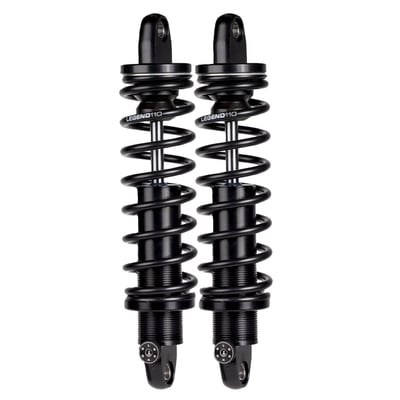

In a black Type III hard coat anodized finish.
Stepless preload with a manual adjustable 6-step adjustable rebound knob.
Touring-specific shock absorbers with coil spring rates designed to provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort. Adjusts by hand, no tools needed. Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points. High-flow piston reacts quickly for improved fluid flow management. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Low friction sealing system and sliding bearings for improved performance and feel.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider/passenger/gear total weight.

Legend, Revo-A shock set. STD duty. 13" Black

#706974

Stock:Yes

Specifically designed to reduce the factory ride height by one inch on FL touring models Offers a low stance and sure-footed confidence for shorter riders. The Touring spring rate delivers improved rider comfort and chassis balance for a better connection to the road. Improves ride quality, straight-line stability, high-speed corning, and maneuverability. Increases resistance to bottoming out on large bumps or potholes. Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range. Reduces front-end dive and improves front tire traction during aggressive braking. Designed for optimum performance with Legend’s air ride or 12″ coil rear suspensions. Includes two 1″ lowered mono-tube, dual-chambered damper cartridges, and two rebound springs. Designed to be used with stock diameter front wheel.
Note: 97-01 models equipped with stock air fork will require the additional purchase of H-D OEM 45419-80 (two) and 45733-48 (two) to install.
Note: Will not fit 18-22 FLTRXSE CVO Road Glide.
Note: Will not fit models with inverted forks.
Note: Not compatible with 21" and 23" wheels.

Legend, 49mm Axeo 1" lowered fork cartridge set

#994532

Stock:Yes

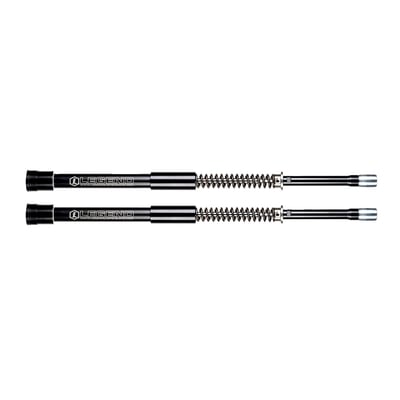

Additional parts required for various models, see notes.
The performance spring rate delivers agile handling for aggressive riders without sacrificing comfort. Specifically designed to increase ride height on FL touring models. Improves cornering clearance, lean angles, and eliminates dragging floorboards and foot pegs. Improves straight-line stability, high-speed cornering, and maneuverability. Increases resistance to bottoming out on large bumps or potholes. Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range. Reduces front-end dive and improves front tire traction under aggressive braking. Designed for optimum performance with Legend’s 14″ Revo-Arc rear suspensions. Includes two 2″ over mono-tube, dual-chambered damper cartridges, and two rebound springs. Designed to be used with stock diameter front wheels.
Note: 14-25 models (excl. all 23-up CVO's with inverted forks) require the use of extend inner fork tubes OEM 45500123 (24.31″ long), Custom Cycle Engineering (923715 hard chrome) or Arlen Ness 2" extended 993521 (gold nitrided) / 993506 (black) 24.25″ fork tubes.
Note: 97-13 models requires the use of H-D upper fork tubes OEM 83804-09 (22.55″ long).
Note: 97-01 models equipped with stock air forks will require additional purchase of H-D OEM 45419-80 (Colony fork tube cap bolt set 989703) (2) and 45733-48 (James O-rings 909040) (2) to install.
Note: Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle.
Note: This product is not designed for use with 21″ or 23″ front wheels.
Note: Does not fit 23-up CVO models with inverted forks.

Legend, 49mm Axeo Performance fork cartridge set. +2" raised

#994537

Stock:Yes

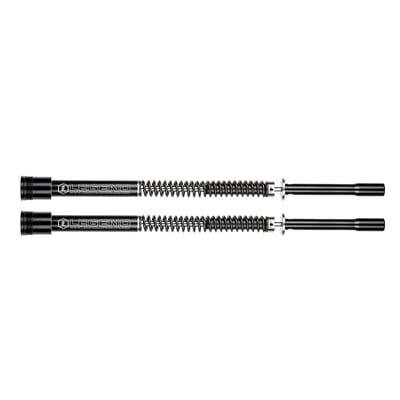

The performance spring rate delivers agile handling for aggressive riders without sacrificing comfort. Specifically designed to retain factory ride height on FL touring models. Improves cornering clearance and minimizes dragging floorboard or foot pegs. Improves ride quality, straight-line stability, high-speed cornering, and maneuverability. Increases resistance to bottoming out on large bumps or potholes. Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range. Reduces front-end dive and improves front tire traction under aggressive braking. Designed for optimum performance with all Legend’s rear suspensions. Includes two stock-length mono-tube, dual-chambered damper cartridges, and two rebound springs. Designed to be used with stock diameter front wheels.
Note: 97-01 models equipped with stock air fork will require the additional purchase of H-D OEM 45419-80 (two) and 45733-48 (two) to install.
Note: Will not fit 18-22 FLTRXSE CVO Road Glide.
Note: Will not fit models with inverted forks
Note: Not compatible with 21" and 23" wheels, unless a Legend travel limiting kit (99543 21") or 994544 23") is installed.
Note: When using a 23" wheel a 7° raked triple tree is required.

Legend, 49mm Axeo Performance fork cartridge set

#994529

Stock:Yes

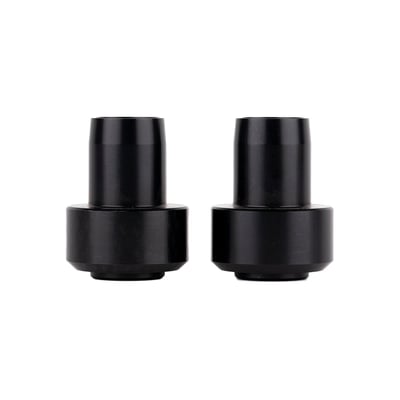

Compatible with 994529 Legend Performance Cartridge Spring Set only.
Designed specifically for use with aftermarket 21" wheels. Prevents front fender from contacting the lower triple clamp or fairing at full bottom-out. Kit includes two travel limiters. Compatible with 994529 AXEO Performance Cartridge Kit only.
Note: Only compatible with AXEO Performance Cartridge Kit.
Note: Not compatible with stock (OEM) suspension.
Note: Does not fit 2018-2022 FLTRXSE CVO Road Glide (See part number 704746 for special order only).
Note: Does not fit 23-up CVO Road Glide or CVO Street Glide models with inverted forks.

Legend, Axeo travel limiter kit 21" wheels

#994543

Stock:Yes

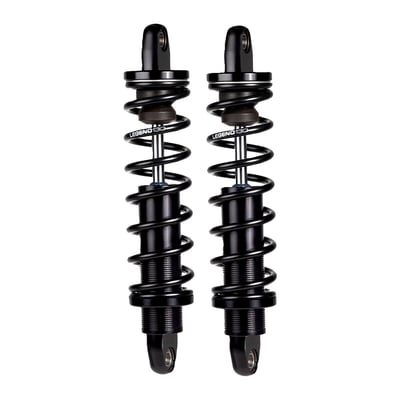

In a black Type III hard coat anodized finish.
Stepless preload, no adjustable rebound.
Touring-specific shock absorbers with coil spring rates designed to provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort. Adjusts by hand, no tools needed. Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points. High-flow piston reacts quickly for improved fluid flow management. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Low friction sealing system and sliding bearings for improved performance and feel.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider and passenger total weight.

Legend, Revo shock set. STD duty. 12". Black

#707726

Stock:Yes

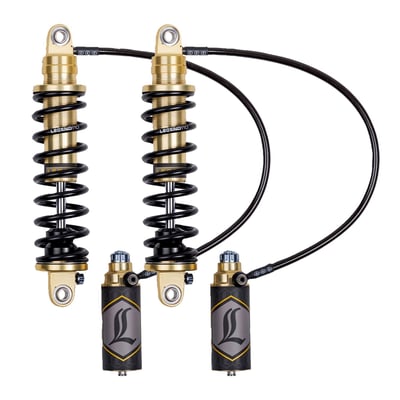

Gold hard anodized finish.
With remote reservoir. 7 levels of hand adjustable compression & rebound dampening. No tools needed. Light to heavy riders with an either aggressive to casual riding style can fine-tune both compression & rebound dampening to to personal preference or just adjust for a changing load (passenger), with the turn of a knob. Legend’s touring-specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort.
- 7-position compression & rebound dampening, adjustable by hand
- 35 mm monotube construction
- Deflective disc valve stacks
- Balanced/Matched piston and base-valve design specific for motorcycle applications
- Low friction sealing system and sliding bearings for improved performance and feel
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- Remote reservoirs are installed in stock place behind bags.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider and passenger total weight.

Legend, Revo ARC 13" shock set Touring. Gold. STD duty

#707731

Stock:Yes

In a black Type III hard coat anodized finish.
Stepless preload with a manual adjustable 6-step adjustable rebound knob.
Touring-specific shock absorbers with coil spring rates designed to provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort. Adjusts by hand, no tools needed. Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points. High-flow piston reacts quickly for improved fluid flow management. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Low friction sealing system and sliding bearings for improved performance and feel.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider/passenger/gear total weight.

Legend, Revo-A shock set. Heavy Duty. 12" Black

#707734

Stock:Yes

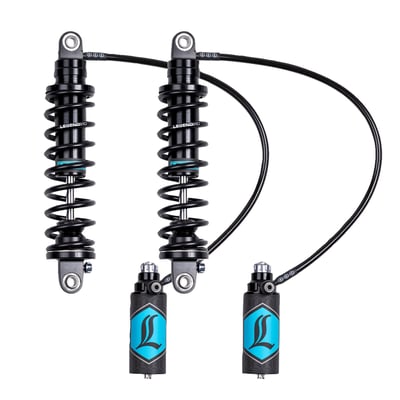

Black hard anodized finish.
With remote reservoir. 7 levels of hand adjustable compression & rebound dampening. No tools needed. Light to heavy riders with an either aggressive to casual riding style can fine-tune both compression & rebound dampening to to personal preference or just a changing load (passenger) with the turn of a knob. Legend’s touring-specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort.
- 7-position compression & rebound dampening, adjustable by hand
- 35 mm monotube construction
- Deflective disc valve stacks
- Balanced/Matched piston and base-valve design specific for motorcycle applications
- Low friction sealing system and sliding bearings for improved performance and feel
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- Remote reservoirs are installed in stock place behind bags.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider and passenger total weight.

Legend, Revo ARC 13" shock set Touring. Black. Heavy duty

#707737

Stock:Yes

In a black Type III hard coat anodized finish.
Stepless preload with a manual adjustable 6-step adjustable rebound knob.
Touring-specific shock absorbers with coil spring rates designed to provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort. Adjusts by hand, no tools needed. Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points. High-flow piston reacts quickly for improved fluid flow management. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Low friction sealing system and sliding bearings for improved performance and feel.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider/passenger/gear total weight.

Legend, Revo-A shock set. STD duty. 12" Black

#707723

Stock:Yes

In a black Type III hard coat anodized finish.
Stepless preload, no adjustable rebound.
Touring-specific shock absorbers with coil spring rates designed to provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort. Adjusts by hand, no tools needed. Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points. High-flow piston reacts quickly for improved fluid flow management. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Low friction sealing system and sliding bearings for improved performance and feel.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider and passenger total weight.

Legend, Revo shock set. STD duty. 13". Black

#707725

Stock:Yes

Black hard anodized finish.
With remote reservoir. 7 levels of hand adjustable compression & rebound dampening. No tools needed. Light to heavy riders with an either aggressive to casual riding style can fine-tune both compression & rebound dampening to to personal preference or just adjust for a changing load (passenger), with the turn of a knob. Legend’s touring-specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort.
- 7-position compression & rebound dampening, adjustable by hand
- 35 mm monotube construction
- Deflective disc valve stacks
- Balanced/Matched piston and base-valve design specific for motorcycle applications
- Low friction sealing system and sliding bearings for improved performance and feel
- Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- Remote reservoirs are installed in stock place behind bags.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider and passenger total weight.

Legend, Revo ARC 13" shock set Touring. Black. STD duty

#707724

Stock:No

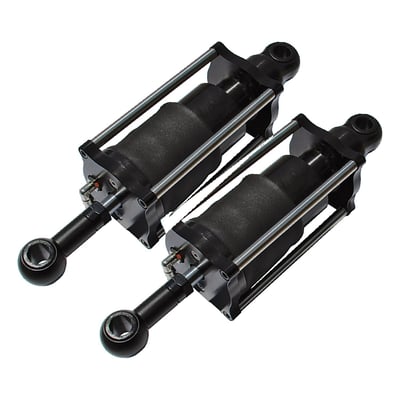

Offers stock height to 3" lower. 12.5" long, 10.9" compressed, 1.6" travel. Compressor mounts between frame and exhaust bracket behind transmission. Fits as stock replacement without modifications. Hard anodized machined aluminum body. Superior riding characteristics with spherical shock bearings, Aramid Fiber adjustable air spring technology, deflective disc damping and no bottoming out under any load. Includes air compressor with On-The-Fly adjustability pressure with a 1" diameter handlebar pushbutton switch. Damping is not separately adjustable nor required in regular street use. Color coded Plug & Play wiring for quick & easy installation.

Note product length: Mentioned lengths are center to center distance between mounting eyes. Shock lengths are measured from center of mounting eye to face of shock or nut. Lengths do not include compression bumpers.

Legend air-st air suspension kit black

#954743

Stock:Yes

In a black Type III hard coat anodized finish.
Stepless preload with a manual adjustable 6-step adjustable rebound knob.
Touring-specific shock absorbers with coil spring rates designed to provide superior ride comfort, improved performance, and increased resistance to bottoming for all-day comfort. Adjusts by hand, no tools needed. Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points. High-flow piston reacts quickly for improved fluid flow management. Deflective disc valving self-adjusts to frequency and ensures controlled performance. Low friction sealing system and sliding bearings for improved performance and feel.
Note: Standard duty is recommended for a rider/passenger/gear total weight below 500lbs. (227kg). Heavy Duty application is recommended for over 500lb. (227kg) rider/passenger/gear total weight.

Legend, Revo-A shock set. Heavy Duty. 13" Black

#707727

Stock:No

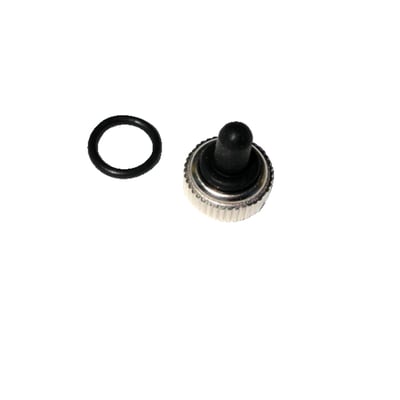

One or two way toggle assembly

Toggle boot

#954705

Stock:Yes

Fairing mounted instrument. for air suspension shock absorber air pressure monitoring. Comes with all necessary mounting hardware.

Air gauge, black

#953266
