BIKE SELECTOR
Description
This Module controls the automatic switching from DLR (Daytime Running Light) to low beam headlamp through a sensor. The switch time from DLR to low beam is less than 0.5 seconds, like when driving into a tunnel. Switch time duration from low beam to DLR is a slower 3 seconds, so light reflections of other traffic or street lamps will not influence low beam. Sensitivity can be adjusted and stored in 60 steps.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin

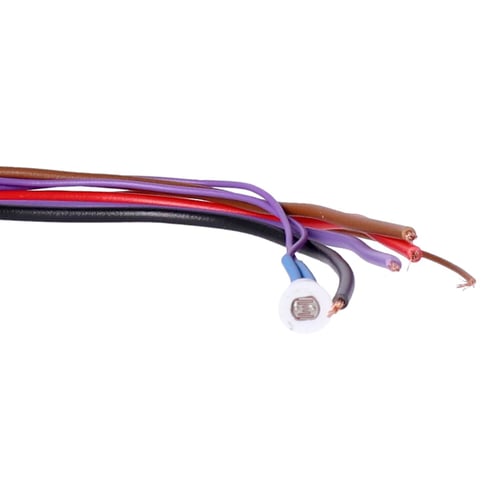

- Sensor: 4.1mm LDR cell, front surface encapsulated against moisture
- Connections: 0.14 qmm for input, 0.75 qmm for power outputs
- Maximum output power: 2 x 60 Watt

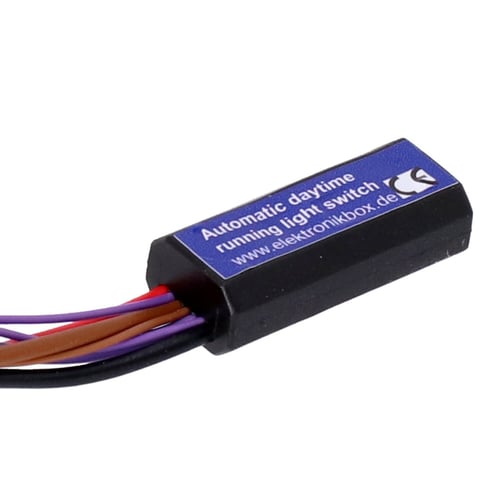

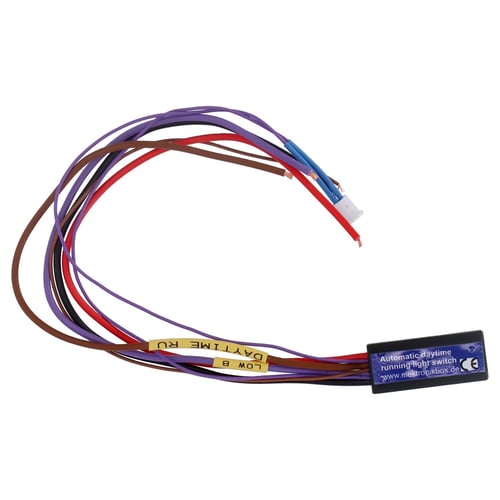

Axel Joost Elektronik, Daytime Running Light switch
Availability: Yes
Description
This Module controls the automatic switching from DLR (Daytime Running Light) to low beam headlamp through a sensor. The switch time from DLR to low beam is less than 0.5 seconds, like when driving into a tunnel. Switch time duration from low beam to DLR is a slower 3 seconds, so light reflections of other traffic or street lamps will not influence low beam. Sensitivity can be adjusted and stored in 60 steps.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Sensor: 4.1mm LDR cell, front surface encapsulated against moisture
- Connections: 0.14 qmm for input, 0.75 qmm for power outputs
- Maximum output power: 2 x 60 Watt
