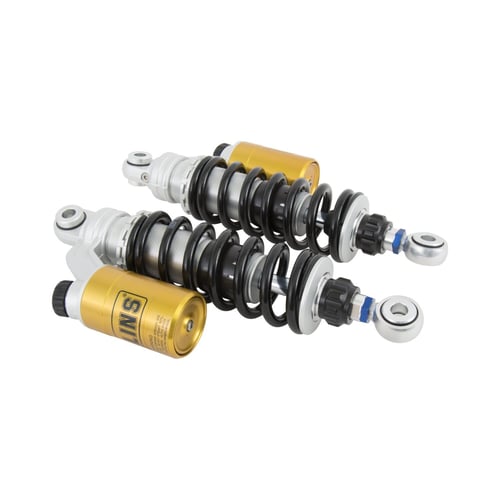

Öhlins, STX36 Twin rear shock absorber set. 340mm
Availability: No
Description
- Black springs
- Clear body
- S: Single tube body
- Piston diameter: 36mm
- P: Monotube high pressure gas type of shock absorber with external "piggy back" reservoir
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir
- L: Adjustable length
- Length: 340 +5/-5 mm
- Stroke: 88 mm
- Rate N/mm: 32 N/mm
- Position: rear
- Mounted spring: 66422-032
- Packaging unit: pair
- ABE approved
Fitment
05-06 Dyna Super Glide Custom FXDCI (FD2), long version; 00-05 Dyna Super Glide FXD (FD1), long version; 93-99 Dyna Super Glide FXD (FXD), long version; 99-05 Dyna Super Glide Sport FXDX (FD1); 03-04 Dyna Super Glide Sport FXDXI (FD1); 00-03 Dyna Super Glide T-Sport FXDXT (FD1); 99-03 Dyna Wide Glide FXDWG (FD1); 06-08 Dyna Wide Glide FXDWG (FD2); 93-99 Dyna Wide Glide FXDWG (FXD); 03-04 Dyna Wide Glide FXDWGI (FD1), long version; 05-06 Dyna Wide Glide FXDWGI (FD2), long version
