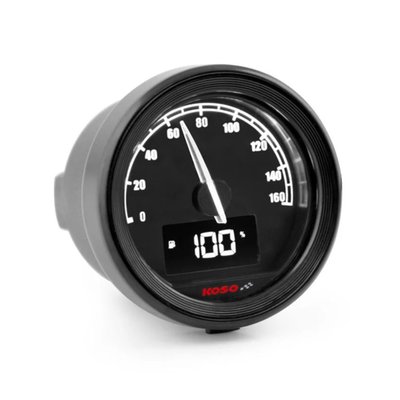

Black face with black bezel. Small 48mm dimeter ABE approved 'multimeter' instrument with more features than you would think at first glance. With 8 color display setting. Features include:
- Speedometer: 0 to 160 km/h / mph. Display per: 20 km/h / mph (large grid), 10 km/h / mph (small grid)
- Over speed warning light: 30 to 160 km/h (19 to 100 mph), per 1 km/h (mph)
- Max. speed record: 0 to 160 km/h / mph. per 1 km/h / mph. Manually resets to zero
- Odometer setting range: 0 to 99,999 km (miles), per 1km / mile
- Trip odometer A/B display range: 0.0 to 9,999.9 km / mile. Manually resets to zero. Per 0.1km / mile
- Tire circumference adjustment range: 300~2,500 mm. Per 1mm
- Sensitive point setting range: 1 to 20 P. Per 1 P
- Fuel gauge display range: 10 levels (100%), per 1 level (10%)
- Fuel gauge setting range: 100 Ω, 250 Ω, 270 Ω, 390 Ω. Resistance (Ω) 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF
- Low fuel level warning setting range: 0~30%, when the setting value. Warning light will light up. Per 10%
- Clock setting range: 24H / 12H
- Volt meter: DC 8.0 to 18.0 V, per 0.1 V
- Low voltage warning light: DC 8.0~13.0 V. Per 0.1V
- Composite warning light setting range: low fuel (LFUEL), low voltage (VOLT)
- Overheating (temperature): Lit (L), Slow flashing (S), Fast flashing (F), OUT OF
- Backlight brightness 5 levels: 1/5 (darkest) to 5/5 (brightest). Per 20%
- Backlight color: White, red, orange, yellow, green, blue, light blue, violet loop switch
- Operating voltage DC 12V
- Operating temperature -10~ +60 °C
- Storage temperature -20~ +80 °C
- Standard JIS D 0203 specified instrument
- Overall diameter 48 mm
- Weight: 60 gram
Note: Design and specifications are subject to change without notice.

KOSO, D48 TNT-05 HD speedometer

#701739

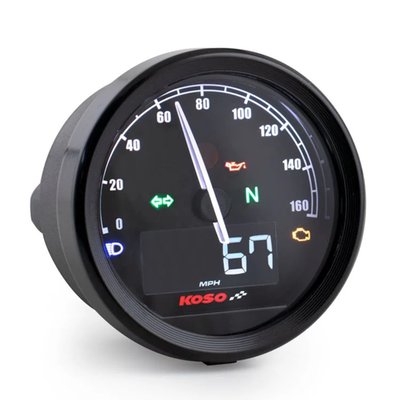

Black face with black bezel. 60mm diameter ABE approved 'multimeter' instrument with more features than you would think at first glance. With 8 color backlight display setting. Features include:
- Speedometer: 0 to 160 km/h / mph. Display per: 20 km/h / mph (large grid), 10 km/h / mph (small grid)
- Over speed warning light: 30 to 160 km/h (19 to 100 mph), per 1 km/h (mph)
- Max. speed record: 0 to 160 km/h / mph. per 1 km/h / mph. Manually resets to zero
- Odometer setting range: 0 to 99,999 km (miles), per 1km / mile
- Trip odometer A/B display range: 0.0 to 9,999.9 km / mile. Manually resets to zero. Per 0.1km / mile
- Tire circumference adjustment range: 300~2,500 mm. Per 1mm
- Sensitive point setting range: 1 to 20 P. Per 1 P
- Fuel gauge display range: 10 levels (100%), per 1 level (10%)
- Fuel gauge setting range: 100 Ω, 250 Ω, 270 Ω, 390 Ω. Resistance (Ω) 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF
- Low fuel level warning setting range: 0~30%, when the setting value. Warning light will light up. Per 10%
- Clock setting range: 24H / 12H
- Volt meter: DC 8.0 to 18.0 V, per 0.1 V
- Low voltage warning light: DC 8.0~13.0 V. Per 0.1V
- Composite warning light setting range: low fuel (LFUEL), low voltage (VOLT) and overheating (temperature): Lit (L), Slow flashing (S), Fast flashing (F), OUT OF
- Backlight brightness 5 levels: 1/5 (darkest) to 5/5 (brightest). Per 20%
- Backlight color: White, red, orange, yellow, green, blue, light blue, violet loop switch
- Indicator colors: high beam (blue), turn signal (green), composite warning (red), speeding warning (red), motor oil (red), neutral (green) and check engine (amber)
- Meter diameter 60mm
- ABE approved

KOSO, D60 TNT-05 HD speedometer

#701738

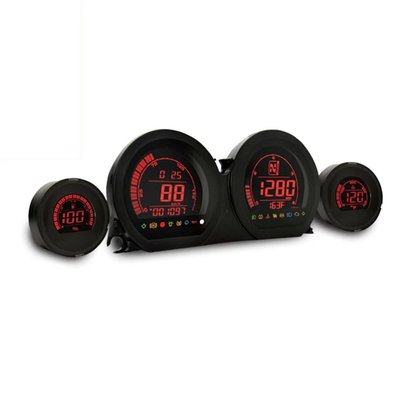

KOSO, HD-06 4-piece gauge kit. Red display
ABE approved. Plug & play replacement for the OEM instruments. Plug OEM connectors into instruments and install into the fairing. Ready! Offers a single display color option (Red) and 5 intensity levels for the digits and graphics in each individual instrument. Once the ignition is off, all instruments are completely black for a great custom look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, and a 2" fuel gauge.
- Display color: Red
- 12V DC
- Speedometer: 0 to 299 km/h (0 to 199 mph)
- Display refresh rate: <0.5 seconds
- Overspeed warning setting: 30 to 299 km/h (19 to 199 MPH). When the set value is reached, the warning lamp lights up
- Maximum speed record: 0 to 299 km/h (mph)
- Odometer display range: 0 to 999,999 km (miles) displays per 0.1 km (miles)
- Tripmeter A/B: 0 to 9,999.9 km (miles)
- Tire circumference: Adjustment range: 50 - 210 %. Sets per 1%
- Oil change interval/maintenance: off - 300 - 10,000 miles or 500 - 16,000km adjustable. Adjustable per 1 miles/km. Counts down as the number of miles/km increase. From 0 km/miles the warning light flashes and the device counts down to maximum minus 999 km/miles. Manual reset
- Gear indicator: Off, N, P, R, 1, 2, 3, 4, 5, 6
- Tachometer: 0 to 9,990 rpm. Displays per 10 rpm
- Shift light: : 2,000~8,000 rpm, per 100 rpm adjustable. Light turns on when set RPM is reached
- Engine temperature: -40 to 300 °C / -40 to 572 °F
- Fuel meter setting: H-D standard / customer-specific
- Fuel warning setting 1-HD Standard: Flashing LCD when > 211 Ω, Off LCD when < 187 Ω
- Fuel warning setting 2-HD Customize: Flashing LCD when < 20%, Off LCD when > 30%
- Fuel tank volume: OFF / 1 ~ 9.9 US gallons
- Average fuel consumption: OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
- Fuel 'remaining distance': LCD shows 'LO RNG' and flashes as a warning when remaining range is less than 16 km (10 miles)
- Clock: 12h / 24h
- Oil Temperature Gauge: 0 to 400°F (32 to 248°C), displays per 1 F° (1 °C)
- Maximum oil temperature record (storage): 0 to 400°F (32 to 248°C)
- Air pressure gauge: Display: Display - - - if no sensor is installed, 0 – 150 PSI. Displays per: 1 PSI
- Air pressure gauge calibration: Calibration range: 0 – 25 PSI +/- 1 PSI. Calibration unit: 1 PSI. Default value: 0 PSI
- Volt meter range: DC 8 to 18V
- Brightness digits: 5 levels
- Color digits / graphics: 1 color: Red
- Works from -10°C to 60°C
- JIS D 0203 (S2) standard specified
- Weight speedometer & tachometer: 286 gram
- Weight oil temp.: 81 gram
- Weight fuel gauge: 81 gram
- Indicator lights: Turn signal right + left (green), Photometric detection, Oil (red), Check engine light (yellow), Cruise control (orange/green), Anti-theft device (red), Water temperature (blue), Warning light (orange/green), High beam (blue), Fog light (green), ABS (yellow)

KOSO, HD-03 4-piece gauge kit. Red display

#701732

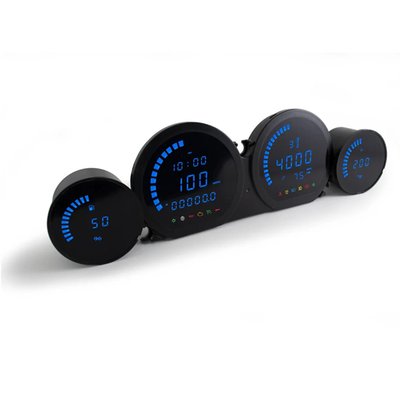

ABE approved. Plug & play replacement for the OEM instruments. Plug OEM connectors into instruments and install into the fairing. Ready! Offers a single display color option (Blue) and 5 intensity levels for the digits and graphics in each individual instrument. Once the ignition is off, all instruments are completely black for a great custom look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, and a 2" fuel gauge.
- Display color: Blue
- 12V DC
- Speedometer: 0 to 299 km/h (0 to 199 mph)
- Display refresh rate: <0.5 seconds
- Overspeed warning setting: 30 to 299 km/h (19 to 199 MPH). When the set value is reached, the warning lamp lights up
- Maximum speed record: 0 to 299 km/h (mph)
- Odometer display range: 0 to 999,999 km (miles) displays per 0.1 km (miles)
- Tripmeter A/B: 0 to 9,999.9 km (miles)
- Tire circumference: Adjustment range: 50 - 210 %. Sets per 1%
- Oil change interval/maintenance: off - 300 - 10,000 miles or 500 - 16,000km adjustable. Adjustable per 1 miles/km. Counts down as the number of miles/km increase. From 0 km/miles the warning light flashes and the device counts down to maximum minus 999 km/miles. Manual reset
- Gear indicator: Off, N, P, R, 1, 2, 3, 4, 5, 6
- Tachometer: 0 to 9,990 rpm. Displays per 10 rpm
- Shift light: : 2,000~8,000 rpm, per 100 rpm adjustable. Light turns on when set RPM is reached
- Engine temperature: -40 to 300 °C / -40 to 572 °F
- Fuel meter setting: H-D standard / customer-specific
- Fuel warning setting 1-HD Standard: Flashing LCD when > 211 Ω, Off LCD when < 187 Ω
- Fuel warning setting 2-HD Customize: Flashing LCD when < 20%, Off LCD when > 30%
- Fuel tank volume: OFF / 1 ~ 9.9 US gallons
- Average fuel consumption: OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
- Fuel 'remaining distance': LCD shows 'LO RNG' and flashes as a warning when remaining range is less than 16 km (10 miles)
- Clock: 12h / 24h
- Oil Temperature Gauge: 0 to 400°F (32 to 248°C), displays per 1 F° (1 °C)
- Maximum oil temperature record (storage): 0 to 400°F (32 to 248°C)
- Air pressure gauge: Display: Display - - - if no sensor is installed, 0 – 150 PSI. Displays per: 1 PSI
- Air pressure gauge calibration: Calibration range: 0 – 25 PSI +/- 1 PSI. Calibration unit: 1 PSI. Default value: 0 PSI
- Volt meter range: DC 8 to 18V
- Brightness digits: 5 levels
- Color digits / graphics: 1 color: Red
- Works from -10°C to 60°C
- JIS D 0203 (S2) standard specified
- Weight speedometer & tachometer: 286 gram
- Weight oil temp.: 81 gram
- Weight fuel gauge: 81 gram
- Indicator lights: Turn signal right + left (green), Photometric detection, Oil (red), Check engine light (yellow), Cruise control (orange/green), Anti-theft device (red), Water temperature (blue), Warning light (orange/green), High beam (blue), Fog light (green), ABS (yellow)

KOSO, HD-06 4-piece gauge kit. Blue display

#701721

For non CAN-bus models with a handlebar mounted instrument.
Multifunctional speedometer / tachometer for models with a handlebar mounted analog instrument. This gauge is plug & Play and offers much more than great looks. The high-tech backlit LCD screen features functions as speed, odometer, tripmeter, hour meter, fuel level, oil temp, shift light, 6 indicator lights and more.
- Speedometer: 0 ~ 225 mph (0 ~ 360 km/h) per 1 mph or km/h
- Odometer: 0 ~ 999,999 miles / km. Per 1 mile / km
- Tripmeter A/B: 0 to 9,999.9 miles / km. Per 0.1 mile / km
- Tachometer: 0 ~ 10,000 rpm
- Shift light warning: 2,000 to 10,000 rpm. Adj. per 100 rpm on ≥ value
- Tire circumference: 50 to 210%. Adj. per 1%
- Engine / oil temperature meter: -40 to 419°F (-40 to 215°C). Per 1 degree
- Display backlight brightness: 5 levels. 1-5 (darkest) to 5-5 (brightest)
- Overspeed warning: 0 to 225 mph (0 to 360 km/h)
- Fuel level: 6 levels. 1 level = 16.67%
- Fuel tank volume: OFF / 1.0 to 9.9 US gallons
- Clock: 12 H or 24 H format
- Gear indicator: Off, N, 1, 2, 3, 4, 5, 6
- Indicator lights: Check engine / ABS / RPM shift light / Security indicator / Cruise control / Low voltage warning
- Volt meter: DC 8.0 to 18.0 V. Per 0.1 Volt

KOSO, DL-04HD multifunctional gauge

#701735

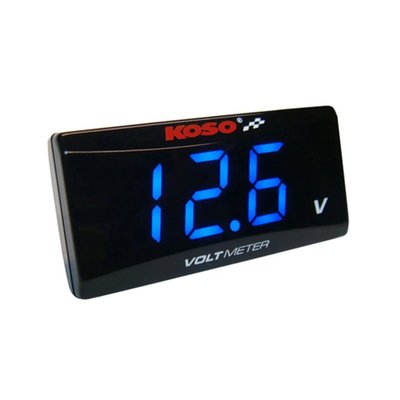

- Will automatically flash if voltage drops down to 11.5V
- Illuminated digits make it attractive and easy to read at night
- Compact size for an easy install on the bike
- Volt meter: DC 8 to 18 V. Per DC 0.1 V
- Voltage warning: Flashing light when < 11.5 V
- Effective temperature range 14 to 140 °F (‑10 ~ 60 °C)
- Power DC 12 V
- Meter standard JIS D 0203 S2
- Dimensions: 56.4mm x 27mm x 11mm
- Meter weight ±20 grams
- Complete with instructions

KOSO, Super-Slim digital volt meter. Blue digits

#701742

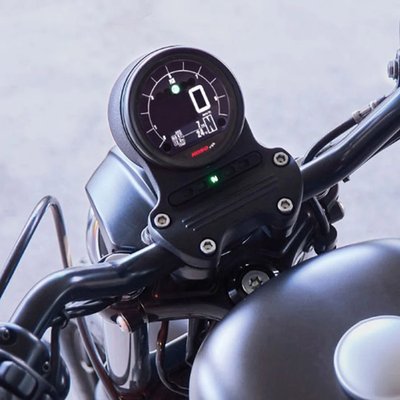

For CAN-bus models with a handlebar mounted instrument.
Multifunctional speedometer / tachometer for models with a handlebar mounted analog instrument. This gauge is plug & Play and offers much more than great looks. The high-tech backlit LCD screen features functions as speed, odometer, tripmeter, hour meter, fuel level, oil temp, shift light, 6 indicator lights and more.
- Speedometer: 0 ~ 225 mph (0 ~ 360 km/h) per 1 mph or km/h
- Odometer: 0 ~ 999,999 miles / km. Per 1 mile / km
- Tripmeter A/B: 0 to 9,999.9 miles / km. Per 0.1 mile / km
- Tachometer: 0 ~ 10,000 rpm
- Shift light warning: 2,000 to 10,000 rpm. Adj. per 100 rpm on ≥ value
- Tire circumference: 50 to 210%. Adj. per 1%
- Engine / oil temperature meter: -40 to 419°F (-40 to 215°C). Per 1 degree
- Display backlight brightness: 5 levels. 1-5 (darkest) to 5-5 (brightest)
- Overspeed warning: 0 to 225 mph (0 to 360 km/h)
- Fuel level: 6 levels. 1 level = 16.67%
- Fuel tank volume: OFF / 1.0 to 9.9 US gallons
- Clock: 12 H or 24 H format
- Gear indicator: Off, N, 1, 2, 3, 4, 5, 6
- Indicator lights: Check engine / ABS / RPM shift light / Security indicator / Cruise control / Low voltage warning
- Volt meter: DC 8.0 to 18.0 V. Per 0.1 Volt

Koso, DL-04D Multifunctional display for HD

#701736

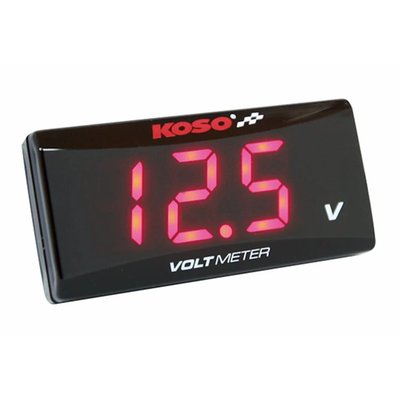

- Will automatically flash if voltage drops down to 11.5V
- Illuminated digits make it attractive and easy to read at night
- Compact size for an easy install on the bike
- Volt meter: DC 8 to 18 V. Per DC 0.1 V
- Voltage warning: Flashing light when < 11.5 V
- Effective temperature range 14 to 140 °F (‑10 ~ 60 °C)
- Power DC 12 V
- Meter standard JIS D 0203 S2
- Dimensions: 56.4mm x 27mm x 11mm
- Meter weight ±20 grams
- Complete with instructions

KOSO, Super-Slim digital volt meter. Red digits

#701722

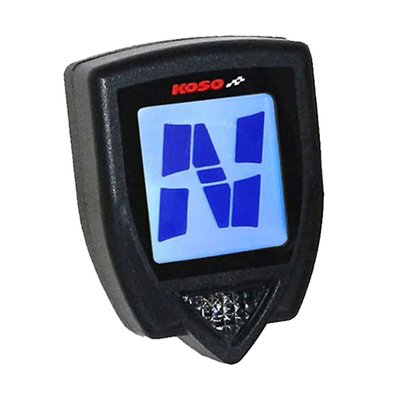

In days gone by, with 3 gears on your Flathead, life was easy. Today, with up to 6 gears, it is just functional to have a gear indicator to remove guess work. The large numbers and blue backlight make it easy to see, day or night.
- Gear indicator display: N,1, 2, 3, 4, 5, 6, 7
- Large numbers
- Blue backlight
- Effective voltage DC12V
- Temperature from -10 to +60°C
- Standard JIS D 0203 specified instrument
- For models equipped with the 3-pin J1850-bus system
- Dimensions: 37mm wide x 51mm high x 17mm deep
- Weight approx. 51.3 grams.

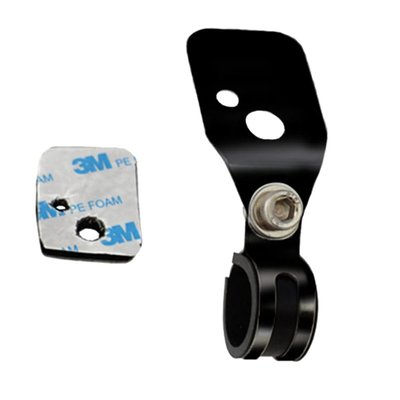

Note: See 701741 for the optional gear indicator bracket. It allows mounting the indicator to to 1-1/4" (32mm) handlebars.

KOSO, digital gear indicator

#701720

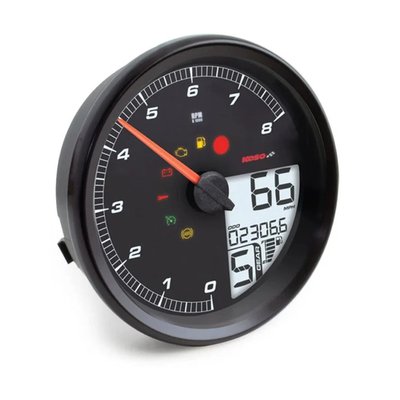

Black face, black bezel. For earlier non CAN-bus wired models. Replacement for the later 4.5 (11.43cm) diameter tank mounted H-D speedometers. Connects plug & play to the existing wiring. Offers speedometer (kmh/mph), tachometer, odometer, two trip meters, rev limit setting, shift light, multiple color backlights, gear indicator, engine temperature, battery voltage, fuel level indicator, average fuel consumption and more.
- 12V DC
- Multiple color backlight: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
- Backlight brightness: 5 levels
- Speedometer: 0 to 360km/h (0 to 225 mp/h)
- Display delay : < 0.5 seconds
- Odometer: 0 to 999.999 km (miles)
- Trip meter A/B: 0 - 9,999.9 km (miles) with auto reset after 9.99.9 km (miles)
- Tire circumference adjustment: 50 to 210%, per 1%
- Gear indicator: Off / Neutral and 1 - 6 gear
- Tachometer: 0 to 8,000 rpm
- Rev limit light: 2,000 to 8,000 rpm. Warning light flashes when set rpm is exceeded. Sets per 100 rpm
- Maximum speed warning adjustable (light or flash)
- Engine temperature warning: 40 - 215 °C (40 - 419 °F) adjustable
- Fuel gauge: 6 levels
- Tank volume: Off / 1 to 9.9 gallons (approx. 3.8 to 37 liters)
- Average consumption fuel consumption: Off / liters per 100 km per liter / Miles per gallon (US spec) / miles per gallon (UK spec)
- Clock: 12h / 24h
- Volt meter: 8-18 V DC
- Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles). Sets per 100km (miles)
- Fuel reserve: 0 to 9.999 km (miles). When range is less than 10 miles (16 km) 'LO RNG' warning will appear on display
- Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft devise, cruise-control
- Works in: 14 to 140 °F (10 to 60 °C)
- Required voltage DC 12 V
- Confirm JIS D 0203 S2
- Dimensions: (D x W) Ø 45/8 x 13/4 "(Ø 117 x 45 mm)
- Weight: 208.5 gram (7.36 oz.)

KOSO, HD-05 speedometer / tachometer. Black bezel

#701734

Optional installation bracket for KOSO's 701720 digital gear indicator. Allows indicator installation to 1-1/4" (32mm) handlebars.

KOSO, bracket for gear indicator. Black

#701741

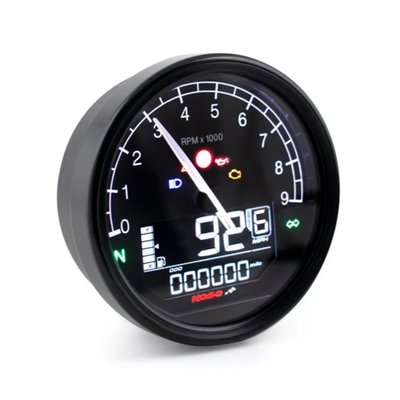

Black face with black bezel. 80mm diameter ABE approved 'multimeter' instrument with more features than you would think at first glance. With 8 color backlight display setting. Features include:
- Speedometer / Tachometer
- Speedometer: 0 to 360 km/h (0~225 mph). Per 1km/h (1mp/h)
- Warning speed limit: 30 to 360 km/h (19 to 225 miles/h). Per 1km/h (mile/h). When exceeded warning light flashes
- Odometer: 0 to 999.999 km/miles. Per 1km/mile
- Trip meter A/B: 0 to 9999.9 km / miles. Per 0.1 km/mile
- Oil change interval: Off / 500 to 16,000 km (300 to 10,000 miles). Per 100km/miles
- Fuel gauge display range: 6 levels (100%), per 1 level
- Fuel gauge setting range: 100 Ω, 250 Ω, 270 Ω, 390 Ω. Resistance (Ω) 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF
- Tire circumference adjustment range: 50% to 200%. Per 1%
- Warning lights: Speed warning, Warning 1, Warning 2 , neutral, turn signal, high beam, engine. Type of warning light (L), Slow flash (S), Flash (F)
- Gear indicator: N, 1, 2, 3, 4, 5, 6
- Digital tachometer: 0 ~ 8,000 rpm per 100 rpm
- Shift light: 1,000 ~ 8,000 rpm per 100 rpm
- Thermometer: °C or °F (switchable)
- Water temperature: -30 ~ 225°C (-22 ~ 437°F) per 1°C (°F)
- Clock setting range: 24H / 12H
- Voltmeter: 8 - 18 volts
- Low voltage: DC 8.0~13.0 V. Per 0.1V
- Backlight brightness 5 levels: 1/5 (darkest) to 5/5 (brightest). Per 20%
- Background colors: Purple , Red, Yellow, Green, Blue, Light blue, White
- Voltage: DC 12V
- Instrument standard: JIS D 0203
- Dimensions: 94.7 x 94.7 x 69.2 mm
- Weight: 165 gram
- ABE/KBA 91397

KOSO, D80 TNT-05 HD Speedometer/Tachometer

#701740

ABE approved. Plug & play replacement for the OEM instruments. Plug OEM connectors into instruments and install into the fairing. Ready! 8 display color options and 5 intensity levels for the digits and graphics in each individual instrument. Once the ignition is off, all instruments are completely black for a great custom look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, and a 2" fuel gauge.
- 8 display color options: White, yellow, orange, red, purple, blue, light blue, green
- 12V DC
- Speedometer: 0 to 299 km/h (0 to 199 mph)
- Display refresh rate: <0.5 seconds
- Overspeed warning setting: 30 to 299 km/h (19 to 199 MPH). When the set value is reached, the warning lamp lights up
- Maximum speed record: 0 to 299 km/h (mph)
- Odometer display range: 0 to 999,999 km (miles) displays per 1 km (miles)
- Tripmeter A/B: 0 to 9,999.9 km (miles)
- Oil change interval/maintenance: off - 300 - 10,000 miles or 500 - 16,000km adjustable. Adjustable per 100 miles/km. Counts down as the number of miles/km increase. From 0 km/miles the warning light flashes and the device counts down to maximum minus 999 km/miles. Manual reset
- Gear indicator: Off, N, 1, 2, 3, 4, 5, 6
- Tachometer: 0 to 9,990 rpm. Displays per 10 rpm
- Shift light: : 2,000~8,000 rpm, per 100 rpm adjustable. Light turns on when set RPM is reached
- Engine temperature: -40 to 400 °C / -40 to 572 °F
- Fuel meter: R: 0 ~ 100 %
- Fuel warning setting 1-HD Standard: Flashing LCD when > 211 Ω, Off LCD when < 187 Ω
- Fuel warning setting 2-HD Customize: Flashing LCD when < 20%, Off LCD when > 30%,
- Fuel tank volume: OFF / 1 ~ 9.9 US gallons
- Average fuel consumption: OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
- Fuel 'remaining distance': LCD shows 'LO RNG' and flashes as a warning when remaining range is less than 16 km (10 miles)
- Clock: 12h / 24h
- Oil Temperature Gauge: 0 to 400°F (32 to 248°C), displays per 1 F° (1 °C)
- Maximum oil temperature record (storage): 0 to 400°F (32 to 248°C)
- Volt meter range: DC 8 to 18V
- Brightness digits: 5 levels
- Color digits / graphics: 8 colors, white, yellow, orange, red, purple, blue, light blue, green
- Works from -10°C to 60°C
- JIS D 0203 (S2) standard specified
- Weight speedometer & tachometer: 286 gram
- Weight oil temp.: 81 gram
- Weight fuel gauge: 81 gram
- Indicator lights: Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light

KOSO, HD-03 8-color 4-piece gauge kit

#701730

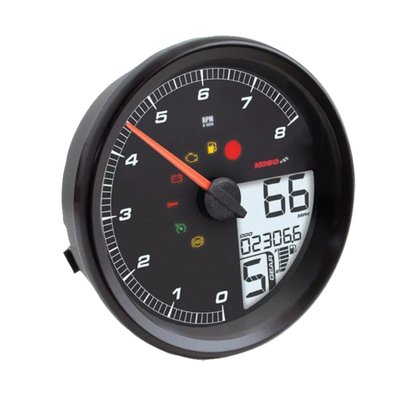

Black face, black bezel. Replacement for the later 4.5 (11.43cm) diameter tank mounted H-D speedometers. Connects plug & play to the existing wiring and is fully compatible with the bike's CAN-bus system. Offers speedometer (kmh/mph), tachometer, odometer, two trip meters, rev limit setting, shift light, multiple color backlights, gear indicator, engine temperature, battery voltage, fuel level indicator, average fuel consumption and more.
- 12V DC. CAN-bus compatible
- Multiple color backlight: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
- Backlight brightness: 5 levels
- Speedometer: 0 to 360 km/h (0 to 225 mp/h)
- Display delay : < 0.5 seconds
- Odometer: 0 to 999.999 km (miles)
- Trip meter A/B: 0 - 9,999.9 km (miles) with auto reset after 9.99.9 km (miles)
- Tire circumference adjustment: 50 to 210%, per 1%
- Gear indicator: Off / Neutral and 1 - 6 gear
- Tachometer: 0 to 8,000 rpm
- Rev limit light: 2,000 to 8,000 rpm. Warning light flashes when set rpm is exceeded. Sets per 100 rpm
- Maximum speed warning adjustable (light or flash)
- Engine temperature warning: 40 - 215 °C (40 - 419 °F) adjustable
- Fuel gauge: 6 levels
- Tank volume: Off / 1 to 9.9 gallons (approx. 3.8 to 37 liters)
- Average consumption fuel consumption: Off / liters per 100 km per liter / Miles per gallon (US spec) / miles per gallon (UK spec)
- Clock: 12h / 24h
- Volt meter: 8-18 V DC
- Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles). Sets per 100km (miles)
- Fuel reserve: 0 to 9.999 km (miles). When range is less than 10 miles (16 km) 'LO RNG' warning will appear on display
- Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft devise, cruise-control
- Works in: 14 to 140 °F (10 to 60 °C)
- |Required voltage DC 12 V
- |Confirm JIS D 0203 S2
- Dimensions: (D x W) Ø 45/8 x 13/4 "(Ø 117 x 45 mm)
- Weight: 208.5 gram (7.36 oz.)

KOSO, HD-05 Speedometer / tachometer. Black bezel

#701733

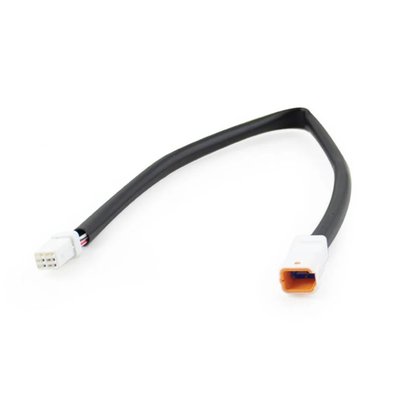

Used to extend the wiring on KOSO 987929, 993831 and 955032 D2 multifunctional speedometer / tachometers.
Plug & Play, complete with connectors.
Compatible with:
- D2 multifunction meter for Harley-Davidson® Baggers (BA080030)
- D2 multifunction meter for BA080020 / MCS 987929 and BA080010 / MCS 993831
- D2 multifunction meter for BA080000 / MCS 955032
- Specifications (R= Range U=Unit)

Koso, 12" extension wire for D2 meters

#701719

Universal side-mount 181mm (7.1") diameter LED headlamp. Comes with DRL (Daytime Running Lamp), low & high beam, all are white light emitting LEDs. DOT and SAE certified. Lightweight, durable die-cast housing. The LED light design gives a great look and offers excellent illumination.
- DRL: 4 LED's, 12V, 2.7W, clear outer lens, white inner lens
- High Beam: 1 x LED Module (10 of 10 LEDs). 12 V, 20.2 W, clear inner & outer lens
- Low Beam: 1 x LED Module (8 of 10 LEDs). 12 V, 24.9 W, clear inner & outer lens
- Brightness: Low beam 1889 lumens, high beam 1557.7 lumens
- E-approved: E24*148R00/03*0167*00
- Dimensions: 181mm (7.1") diameter x 96mm deep
- Side mount

KOSO, Xenith LED headlamp

#995713

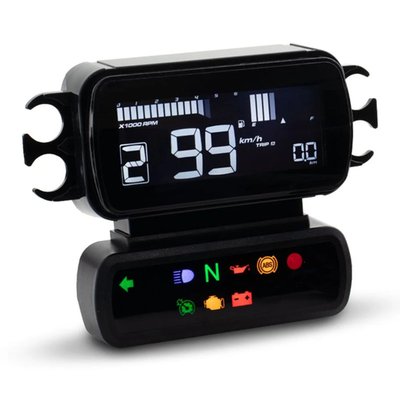

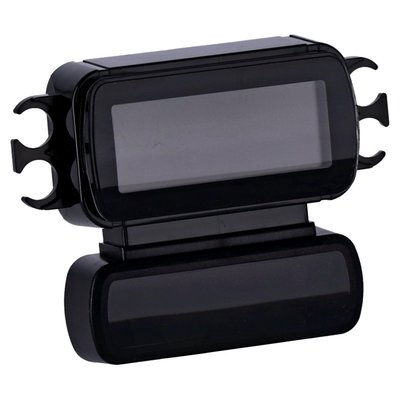

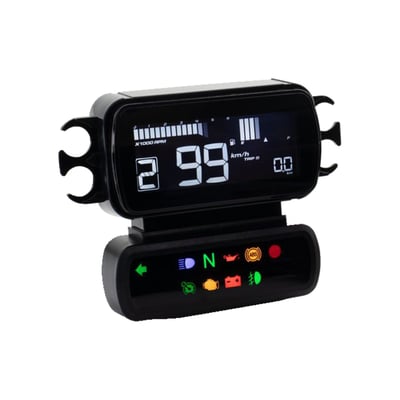

100% plug & Play high end custom replacement for the stock Street Bob speedo/tachometer. Features 8 color interchangeable LCD display. The instrument comes with a a series of programmable options.
- Speedometer range (digits): 0-199 km (0-124 miles), displays per 1 kmh (mph)
- Display delay : < 0.5 seconds
- Internal and external odometer: 0 to 999.999 km (miles), displays per 0.1 km (mile)
- Trip meter A/B: 0 to 9999.9 km (mile) with auto reset after 9999.9 km
- Tire circumference adjustment: 50 to 210%, sets per per 1%
- Tachometer: 0 - 10.000 RPM
- Backlight colors: White, Red, Orange, Yellow, Blue, Light Blue, Purple, Green
- Maintenance intervals: Off, 500 - 16.000 km (300 - 10.000 miles). Sets per 100km (miles)
- Indicator lights: Right turn signal (Green), left turn signal (green), security (Red), ABS (Amber), engine oil (Red), neutral (Green), high beam (blue), low fuel (amber), fog light (green), battery (Red), engine light (amber), cruise control light (green/amber), tire pressure warning (amber)
- Shift light: 2.000 to 10.000 RPM adjustable (red/white backlight flashing). Sets per 100RPM
- Engine temperature: -38 to 572°F (-39 to 300°C)
- Clock: 12h / 24h adjustable
- Volt meter: Range 8 - 18V
- Backlight Brightness: 1/5 (darkest) to 5/5 (brightest)
- Tire Pressure: TPMS, FR/RR/LR when TPMS supported. Range HI, 0-73 PSI, 0-506kPa, 0-5.0bar. Displays per 1 PSI, 1 kPa, 0.1 bar
- Fuel gauge: 10 levels
- Voltage: 12V DC
- Works in: -20~85°C
- Storage Temperature: -30-90 °C
- Confirm JIS D 0203 (S2) standard
- Gauge size 88.2 x 67.0 x 35.2 mm
- Gauge Weight: Approx. 70 grams

Koso, D2 multifunctional speedometer / tachometer

#987929

100% plug & Play high end custom replacement for the stock Street Bob speedo/tachometer. Features 8 color interchangeable LCD display. The instrument comes with a a series of programmable options.
- Speedometer range (digits): 0-199 km (0-124 miles), displays per 1 kmh (mph)
- Display delay : < 0.5 seconds
- Internal and external odometer: 0 to 999.999 km (miles), displays per 0.1 km (mile)
- Trip meter A/B: 0 to 9999.9 km (mile) with auto reset after 9999.9 km
- Tire circumference adjustment: 50 to 210%, sets per per 1%
- Tachometer: 0 - 10.000 RPM
- Backlight colors: White, Red, Orange, Yellow, Blue, Light Blue, Purple, Green
- Maintenance intervals: Off, 500 - 16.000 km (300 - 10.000 miles). Sets per 100km (miles)
- Indicator lights: Right turn signal (Green), left turn signal (green), security (Red), ABS (Amber), engine oil (Red), neutral (Green), high beam (blue), low fuel (amber), fog light (green), battery (Red), engine light (amber), cruise control light (green/amber), tire pressure warning (amber)
- Shift light: 2.000 to 10.000 RPM adjustable (red/white backlight flashing). Sets per 100RPM
- Engine temperature: -38 to 572°F (-39 to 300°C)
- Clock: 12h / 24h adjustable
- Volt meter: Range 8 - 18V
- Backlight Brightness: 1/5 (darkest) to 5/5 (brightest)
- Tire Pressure: TPMS, FR/RR/LR when TPMS supported. Range HI, 0-73 PSI, 0-506kPa, 0-5.0bar. Displays per 1 PSI, 1 kPa, 0.1 bar
- Fuel gauge: 10 levels
- Voltage: 12V DC
- Works in: -20~85°C
- Storage Temperature: -30-90 °C
- Confirm JIS D 0203 (S2) standard
- Gauge size 88.2 x 67.0 x 35.2 mm
- Gauge Weight: Approx. 70 grams
Note: See 701719 for 12" extension wire, compete with connectors

Koso, D2 multifunctional speedometer / tachometer

#993831

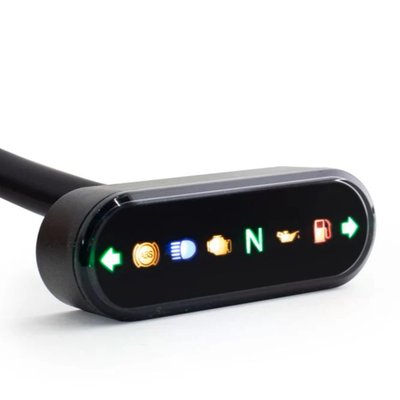

Small LED indicator light unit with all required warning lights. Perfect for use in a variety of custom applications.
Cable assignment:
- Purple = check engine light (-)
- Green = Fuel (-)
- Yellow = high beam (+)
- Blue = Right turn signal (+)
- Orange = Left turn signal (+)
- Green/Red = ABS indicator (-)
- Gray = oil control light (-)
- White = neutral position gear indicator (-)
- Red = Power supply (+) 12V
- Black = Ground/Minus (-)
- 8/9V = RED
- 10/11V = YELLOW
- 12/13V = GREEN
- 14/15V = YELLOW
- 16V = RED
- Dimensions: 64mm wide x 22mm high x 16mm deep with 37mm mount bolt spacing
- Weight: approx. 25g
- Display: 8V-16V

KOSO, indicator light display

#701737

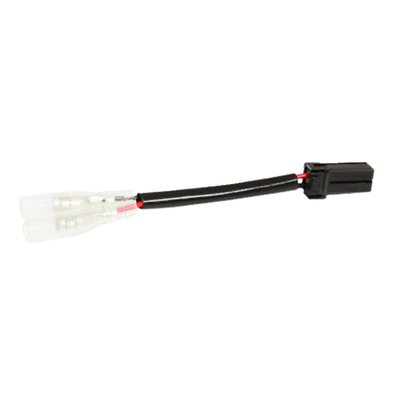

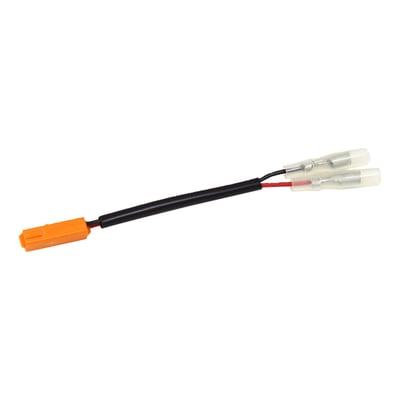

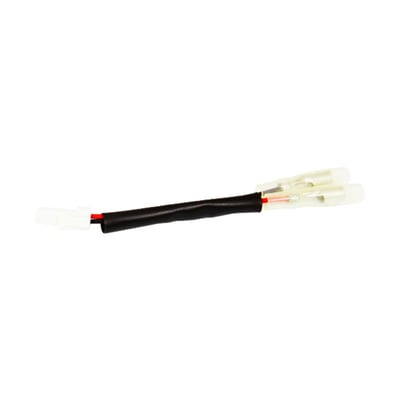

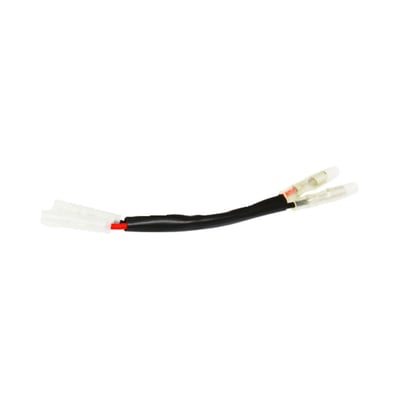

Koso, turn signal adpating wire for HD

#701744

Stock:Yes

Stock:Yes

Stock:Yes

Stock:Yes

Stock:Yes

Stock:Yes

Stock:Yes

Stock:Yes

Stock:No

Stock:Yes

Stock:Yes

Stock:Yes

Stock:No

Stock:Yes

Stock:Yes

Stock:No

Stock:Yes

Stock:Yes

Stock:Yes

Stock:Yes
