Tool steel, professional workshop quality. Flat 90 degree positioning square / control square for an exact 90° angle with tolerance within DIN 875-00 standards.
- hardened tool steel
- two black burnished, hardened and beveled edges
- DIN 875 grade 00

MIB, positioning square, beveled edge. 150 x 100mm

#954334

Stock:Yes

Flat 90 degree positioning square / control square for an exact 90° angle with tolerance within DIN 875-1 standards.
- Non-hardened regular carbon steel
- DIN 875-1

MIB, positioning square. 200x130mm

#954332

Stock:Yes

Tool steel, professional workshop quality. Flat 90 degree positioning square / control square for an exact 90° angle with tolerance within DIN 875-00 standards.
- hardened tool steel
- two black burnished, hardened and beveled edges
- DIN 875 grade 00

MIB, positioning square, beveled edge. 100 x 70mm

#954333

Stock:Yes

Flat 90 degree positioning square / control square for an exact 90° angle with tolerance within DIN 875-1 standards.
- Non-hardened regular carbon steel
- DIN 875-1

MIB, positioning square. 75x50mm

#954329

Stock:Yes

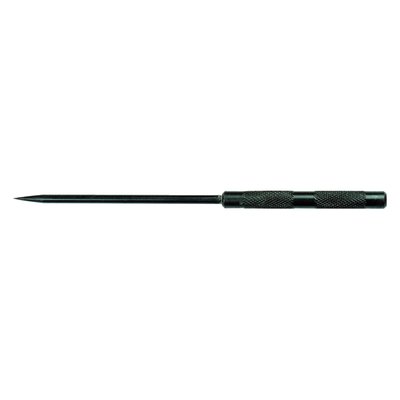

A scribe, scriber or scratch pen is used to mark metal objects.
- Screwed-in needle with straight hardened steel point
- Steel body
- Length 175mm

MIB, scriber with straight hardened steel point. 175mm

#954340

Stock:Yes

- Forged steel
- Polished finish
- Square legs
- Hardened points
- DIN 6486

MIB, wing divider, with joint. 250mm long

#954339

Stock:Yes

Replacement for 954346 MIB parallel marking gauge / marking vernier caliper with scribing point

MIB, replacement carbide scribe point

#954346

Stock:Yes

With auto lock caliper.
Basic 4-piece measuring device set for use workshop use. Packed in sturdy plastic case with carrying handle to keep tools organized and protected.
Includes:
- 1 x Vernier caliper 150 mm, lock screw, 1/20mm, DIN 862
- 1 x Micrometer 0 - 25 mm, DIN 863
- 1 x Positioning square 100 x 70 mm, DIN 875/1
- 1 x Stainless steel ruler 150 x 13 x 1 mm
- Packed in 25cm wide x 13cm high x 4.5cm deep plastic case.

MIB, measuring tool set. 4-piece

#954359

Stock:Yes

Basic 6-piece measuring device set for use workshop use. Packed in sturdy aluminum case with carrying handle to keep tools organized and protected.
Includes:
- 1 x Vernier caliper 150 mm, 1/20mm. DIN 842
- 1 x Micrometer 0 - 25 mm. DIN 863
- 1 x Positioning square 100 x 70 mm, DIN 875/1
- 1 x Stainless teel ruler 150 x 13 x 1 mm
- 1 x Knife edge straight edge 100 mm, DIN 874/0
- 1 x Spring devider 150 mm
Packed in 38cm wide x 26cm high x 5cm deep aluminum case.

MIB, measuring tool set. 6-piece

#954361

Stock:Yes

For accurate outside measurement of small objects. Supplied with a 'Standard' gauge of 75mm length. This gauge is used to check and set the micrometer for correct measuring. The Standard gauge length is fixed and manufactured, like the micrometers, according to DIN 863.
- Range (mm): 75-100
- A (mm): 15.0
- B (mm): 3.5
- C (mm): 60
- L (mm): 107
- carbide measuring faces, ground and lapped
- scale satin chrome no-glare finish
- ligtweight coated frame
- spindle Ø 6.5 mm
- thread pitch 0.5 mm
- scale 0.01 mm
- with auto-stop ratchet
- accuracy DIN 863
- in case

MIB, outside micrometer, DIN 863. 75-100mm

#954314

Stock:Yes

Basic 6-piece measuring device set for use workshop use. Packed in sturdy aluminum case with carrying handle to keep tools organized and protected.
Includes:
1 x 954358 digital caliper 150 mm,, DIN 842
1 x 954311 micrometer 0 - 25 mm, DIN 863
1 x Positioning square 100 x 70 mm, DIN 875/1
1 x Stainless steel ruler 150 x 13 x 1 mm
1 x Knife edge straight edge 100 mm, DIN 874/0
1 x Spring divider 150 mm
- Packed in 38cm wide x 26cm high x 5cm deep aluminum case.

MIB, measuring tool set. 6-piece

#954362

Stock:Yes

With lock screw vernier caliper.
Basic 4-piece measuring device set for use workshop use. Packed in sturdy plastic case with carrying handle to keep tools organized and protected.
Includes:
- 1 x Vernier caliper 150 mm, auto lock, 1/20mm, DIN 862
- 1 x Micrometer 0 - 25 mm, DIN 863
- 1 x Positioning square 100 x 70 mm, DIN 875/1
- 1 x Stainless steel ruler 150 x 13 x 1 mm
- Packed in 25cm wide x 13cm high x 4.5cm deep plastic case.

MIB, Measuring tool set 4 pieces

#954360

Stock:Yes

Used for a positive identification of the type and pitch (windings) of threads used on bolts or nuts.
Whitworth threads (BSW, Britisch Standard Whitworth) is an imperial standard developed in 1841 and became the British Standard.
Today you may find this thread on many older (but not all) pre-1970 British motorcycles and cars.
- Threads: Whitworth
- Degree: 55 degrees
- Number of blades: 28
- Pitch: 4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62

MIB, bolt thread pitch gauge. Whitworth threads 4-62

#954351

Stock:Yes

- Forged steel
- Polished finish
- Square legs
- Hardened points
- DIN 6486

MIB, wing divider, with joint. 200mm long

#954338

Stock:Yes

- range (mm): 150
- scale (mm): 0.01mm
- rotation per mm: 1
- dial diameter (mm): 38
- A (mm): 40
- B (mm): 20
- D (mm): 16
- Weight: 0.19kg
- rotating dial
- stainless steel, hardened
- shock proof
- scale in mm, laser engraved
- jaws fine ground and lapped
- flat depth gauge
- 4-way measurements
- backside with screw table
- DIN 862
- in box

MIB, dial caliper with drive roller. DIN 862. 150mm

#954303

Stock:Yes

- Range: 200mm
- Accuracy: 0.05mm (1/20mm)
- A: 100mm
- B: 3mm
- D: 8mm
- Stainless steel
- Scale and nonius satin chrome finished
- Nonius 1/20 mm (0.05mm)
- DIN 862
- In case

MIB, dept vernier caliper. 200mm

#954310

Stock:Yes

Flat 90 degree positioning square / control square for an exact 90° angle with tolerance within DIN 875-1 standards.
- Non-hardened regular carbon steel
- DIN 875-1

MIB, positioning square. 150x100mm

#954331

Stock:Yes

- Forged steel
- Polished finish
- Square legs
- Hardened points
- DIN 6486

MIB, wing divider. 250mm long

#954337

Stock:Yes

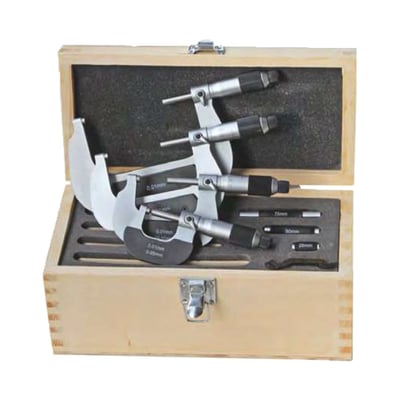

For accurate outside measurement of small objects. Comes with 4 individual outside micrometers of 0-25, 25-50, 50-75 and 75-100mm. Complete with 3 'Standard' gauges of 25, 50 and 75mm length. These gauges are used to check and set the micrometers for correct measuring. The Standard gauge lengths are fixed and manufactured, like the micrometers, according to DIN 863.
Includes:
- 4 outside micrometers of 0-25, 25-50, 50-75 and 75-100mm
- 3 Standard gauges 25/50/75mm
- carbide measuring faces, ground and lapped
- scales satin chrome no-glare finish
- lightweight coated frames
- spindles Ø 6.5 mm
- thread pitches 0.5 mm
- scales 0.01 mm
- with friction ratchets
- accuracy DIN 863
- in wooden case
- weight: 2.1kg

MIB, outside micrometer set, DIN 863. 0-100mm

#954322

Stock:Yes

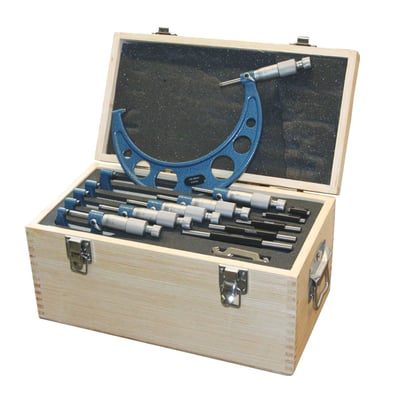

7-piece set. Used for accurate outside measurement of small objects.
Comes with 4 individual outside micrometers of 0-25, 25-50, 50-75 and 75-100mm.
Complete with 3 'Standard' gauges of 25, 50 and 75mm length.
These gauges are used to check and set the micrometers for correct measuring.
The Standard gauge lengths are fixed and manufactured, like the micrometers, according to DIN 863.
Includes:
- 4 outside micrometers of 0-25, 25-50, 50-75 and 75-100mm
- 3 Standard gauges 25/50/75mm
- carbide measuring faces, ground and lapped
- scales satin chrome no-glare finish
- lightweight coated frames
- spindles Ø 6.5 mm
- thread pitches 0.5 mm
- scales 0.01 mm
- with auto-stop ratchets
- accuracy DIN 863
- in wooden case
- weight: 2.1kg

MIB, outside micrometer set, DIN 863. 0-100mm

#954316

Stock:Yes
