Max opening: 120mm.

Max throat depth: 60mm.

Sliding arm dimension: 15x6mm.

Weight: 0.32kg.

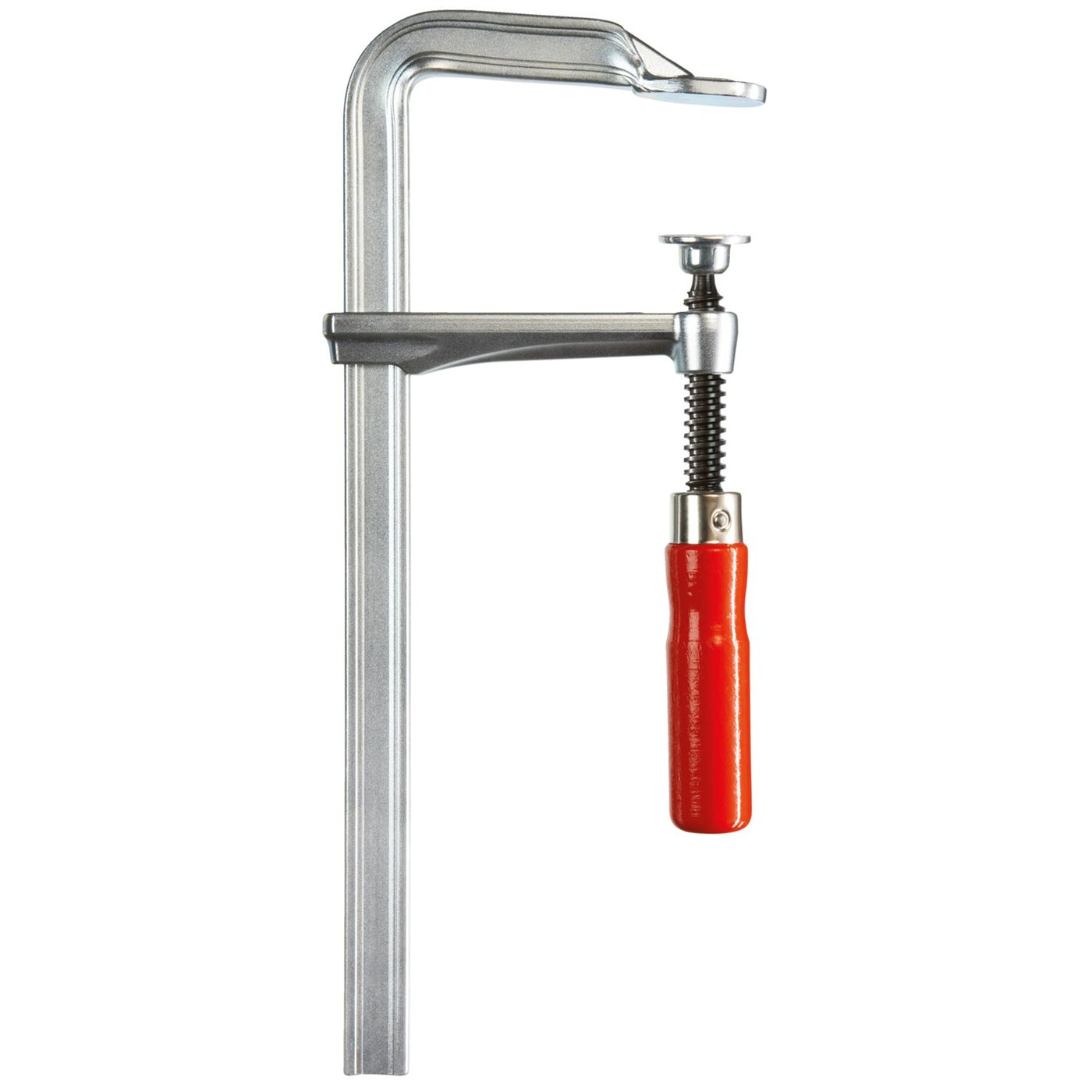

Hardened, tempered and forged steel sliding arm and jaw with a profile to retain shape and resist distortion which ultimately offers 20 % more clamping force per spindle rotation than others. The spindle is equipped with high quality 2-component plastic handle, threads are special surface-coated for a smooth and bind-less action and the spindle pressure plate is easily replaceable. Comes with a zinc plated finish.

Note: See 582343 for optional protective plastic strips for sensitive surfaces.
