Description
This will replace OEM TSM (Turn Signal Module) 68920-01, TSSM (Turn Signal Security Module) 68922-00 (for US models) or TSSM 68924-00 (for HDI/EU models). It will not replace the TSSM factory alarm features.
Note: The replacement of the OEM TSSM factory alarm module 68922-00 & TSSM 68924-00 for models with EFI require the use of a TechnoResearch diagnostic tool to complete the TSSM module replacement procedure. For some models a manual procedure to marry the module to the bike is possible, for all others the TechnoResearch diagnostic tool is required for TSSM module replacement. Installation instructions are included.
- Direct Plug-and-play replacement for the OEM Harley-Davidson turn signal modules
- Functionality: Operates solely as a TSM (Turn Signal Module) without and will not support functions/security features of the TSSM (Turn Signal Security Module)
- Lighting Compatibility: Works with both LED and incandescent bulbs
- Turn Signal Load Range: Supports 0.24A to 6A per side
- No Load Equalizer Required: Compatible with BCM-compliant LED upgrades
- Programming Compatibility: Follows OEM TSM manual password learning and supports TechnoResearch module replacement procedure
- Turn Signal Functions: Manual and self-canceling based on speed, time, and direction
- Four-Way Hazard Operation: Smart cancellation based on timing, ignition position, and battery voltage
- Safety Feature: Auto shut-off when tilt exceeds 45° for more than 1 second
- Protection: Built-in short circuit and overcurrent protection on turn signal circuits
- Power Efficiency: Designed for low current consumption
- Voltage Range: Operates between 11VDC and 15VDC
- Build Quality: Robust, high-quality components
- Includes installation instructions.
Note: If you want to replace the seal for the stock H-D turn signal module connector, it is available as 709107.
Fitment
00-06 FLT/Touring (excl. 00-01 Touring with Magneti Marelli EFI); 01-03 Dyna; 04-06 XL Sportster (NU)

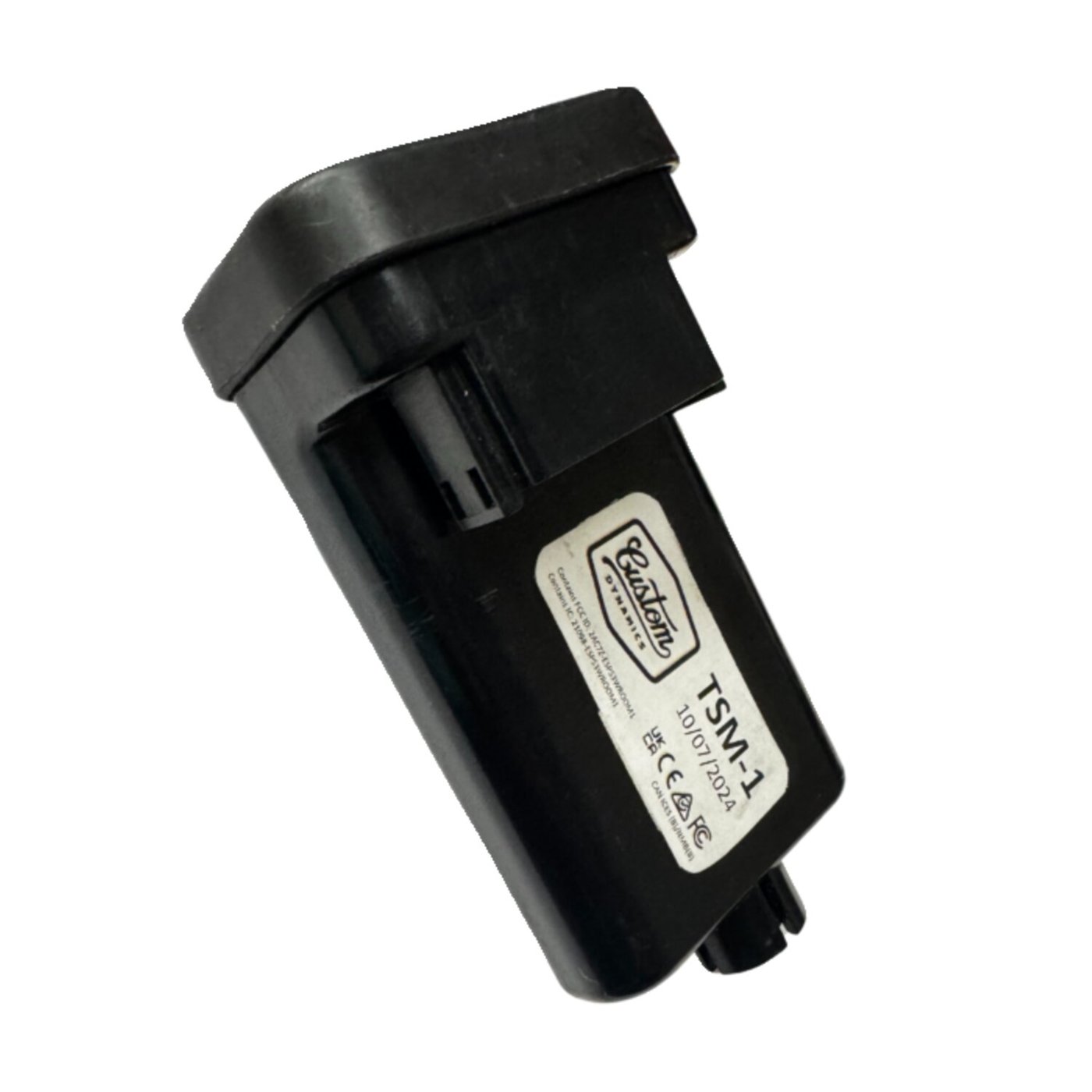

Custom Dynamics, turn signal module TSM-1
Item No:
709103
Brand:
Custom Dynamics
UM:
1
Availability:No
Description
This will replace OEM TSM (Turn Signal Module) 68920-01, TSSM (Turn Signal Security Module) 68922-00 (for US models) or TSSM 68924-00 (for HDI/EU models). It will not replace the TSSM factory alarm features.
Note: The replacement of the OEM TSSM factory alarm module 68922-00 & TSSM 68924-00 for models with EFI require the use of a TechnoResearch diagnostic tool to complete the TSSM module replacement procedure. For some models a manual procedure to marry the module to the bike is possible, for all others the TechnoResearch diagnostic tool is required for TSSM module replacement. Installation instructions are included.
- Direct Plug-and-play replacement for the OEM Harley-Davidson turn signal modules
- Functionality: Operates solely as a TSM (Turn Signal Module) without and will not support functions/security features of the TSSM (Turn Signal Security Module)
- Lighting Compatibility: Works with both LED and incandescent bulbs
- Turn Signal Load Range: Supports 0.24A to 6A per side
- No Load Equalizer Required: Compatible with BCM-compliant LED upgrades
- Programming Compatibility: Follows OEM TSM manual password learning and supports TechnoResearch module replacement procedure
- Turn Signal Functions: Manual and self-canceling based on speed, time, and direction
- Four-Way Hazard Operation: Smart cancellation based on timing, ignition position, and battery voltage
- Safety Feature: Auto shut-off when tilt exceeds 45° for more than 1 second
- Protection: Built-in short circuit and overcurrent protection on turn signal circuits
- Power Efficiency: Designed for low current consumption
- Voltage Range: Operates between 11VDC and 15VDC
- Build Quality: Robust, high-quality components
- Includes installation instructions.
Note: If you want to replace the seal for the stock H-D turn signal module connector, it is available as 709107.
Fitment
00-06 FLT/Touring (excl. 00-01 Touring with Magneti Marelli EFI); 01-03 Dyna; 04-06 XL Sportster (NU)
