High compression. 883-1200 conversion piston set. Compatible with stock unmodified cylinder heads. 10:1 Compression ratio. Piston weight 335gr. Piston pin diameter .792" and weight 97gr.

Head type: Dish.

Dome +10cc.

Compression height 1.210".

Bore 3.498".

Stroke 3.812".

Rod length 6.926".

Cyl. length 4.650".

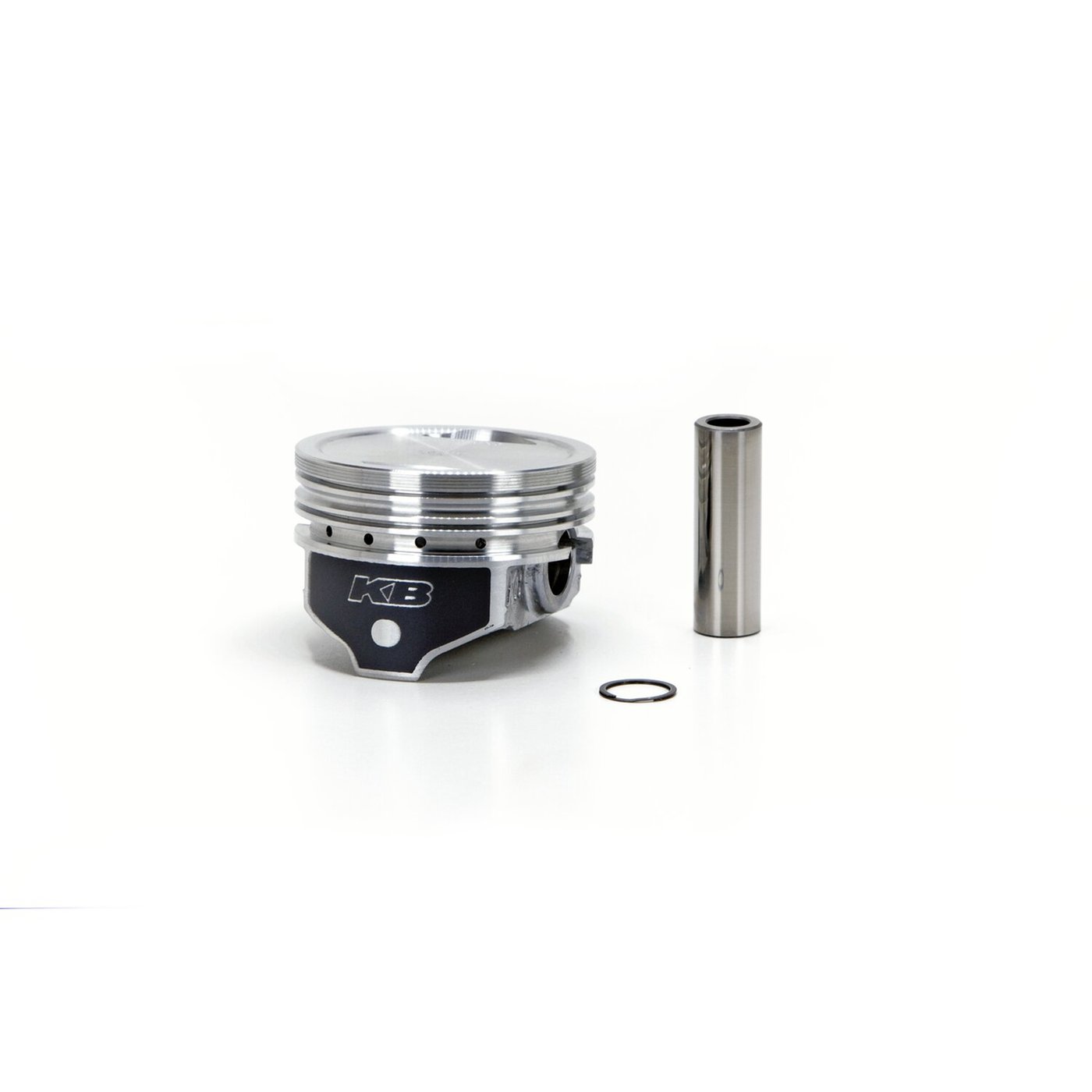

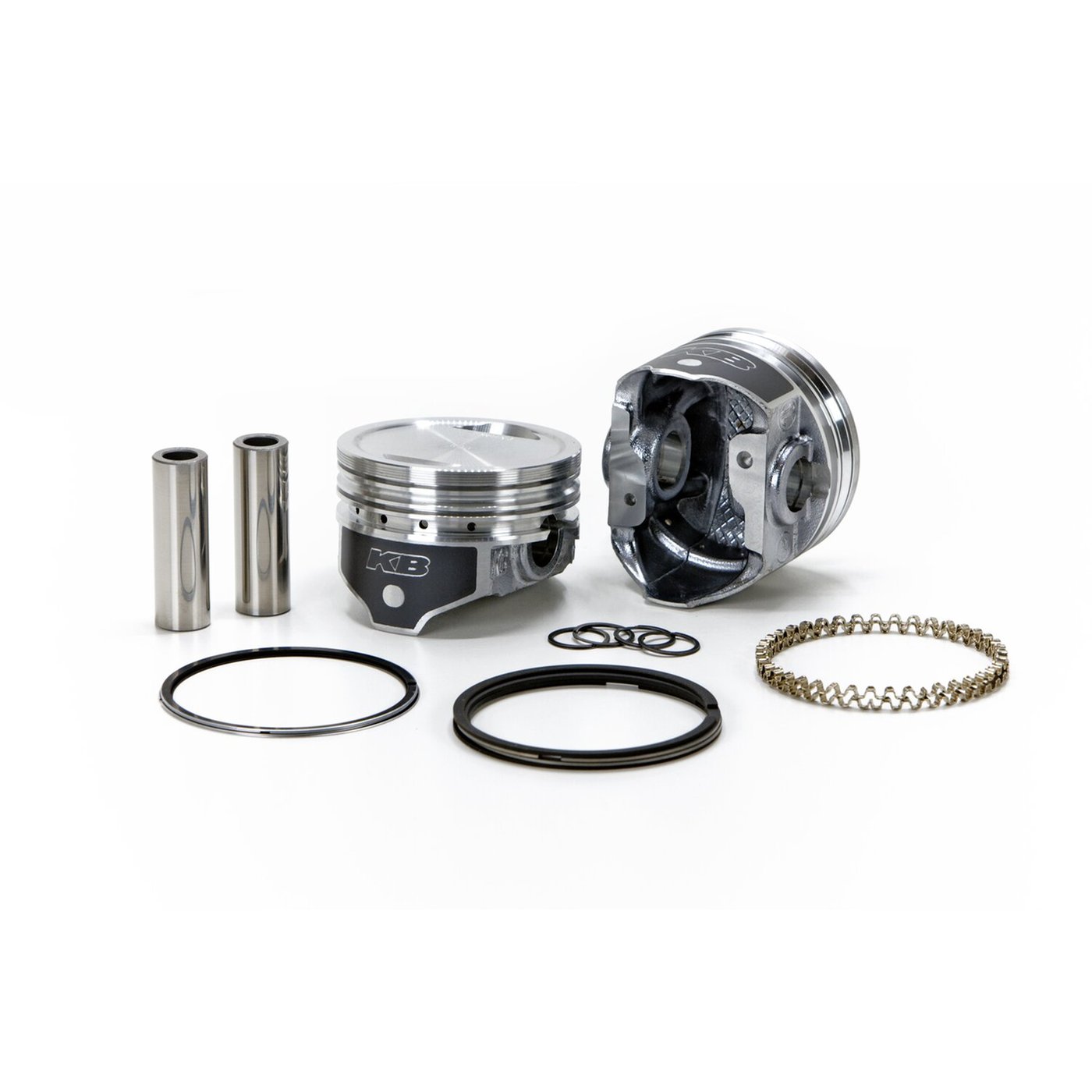

Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.

Note: Top compression ring will need additional clearance. See instructions.

Note: 1200cc cylinders must be purchased for 04-up 883 XL models. Stock cylinders liners of 04-up XL models are too thin to bore to 1200 size.
