Description

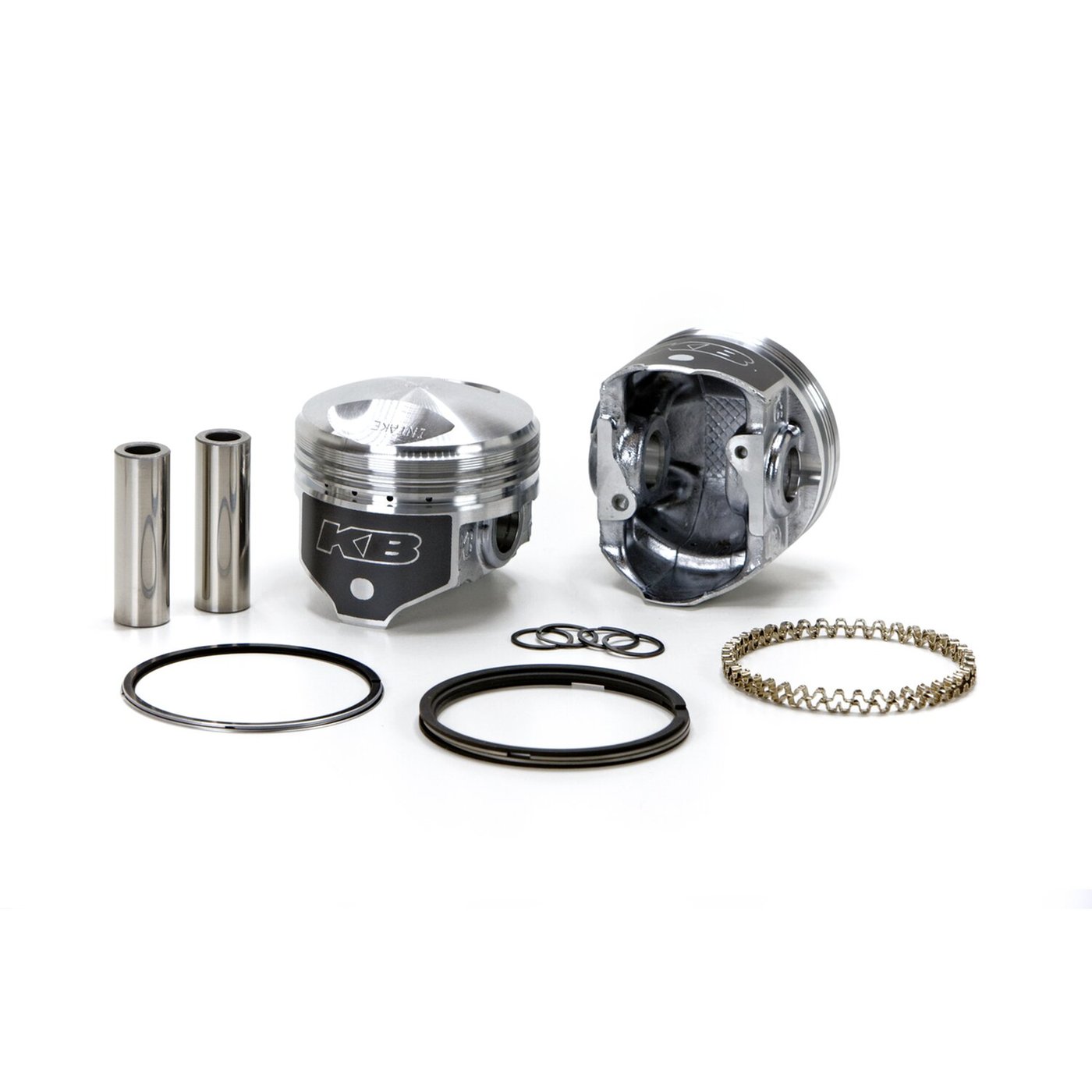

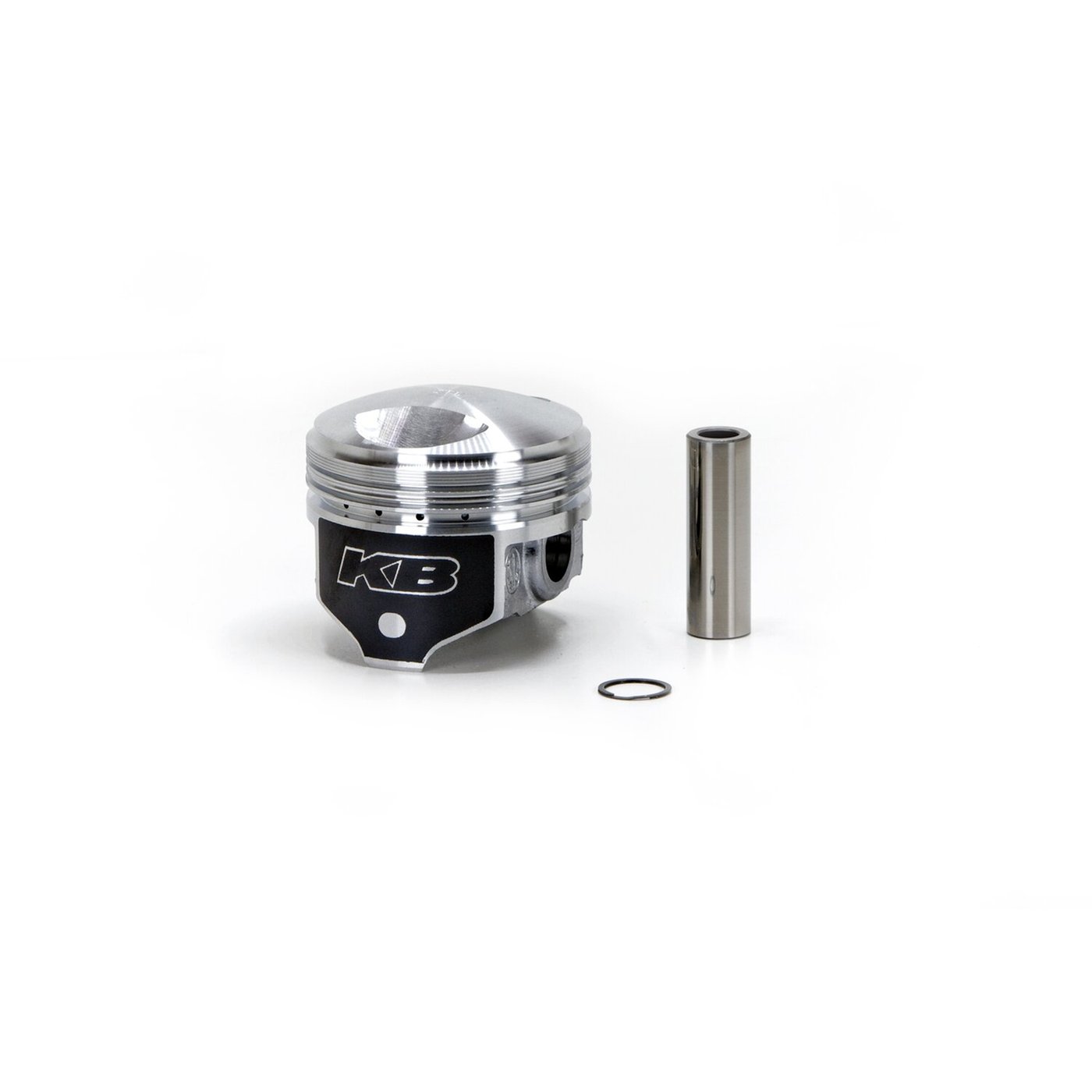

High compression pop-up piston set. 9.5:1 CR. Piston weight 388gr. Piston pin weight 97gr.
Head type: Dome / Dome -47cc.
Compression height 1.285" / Bore 3.4980".
Stroke 4.250".
Rod length 7.440" / Cyl. length 5.330".
Comes with T7 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance. See instructions.
Note: Around 30% of stock 1340cc Shovel cylinders may present a problem in combination with the location of some of the oil return holes since KB pistons have a wider piston ring pack for better piston stability in the cylinder. In these cases the oil return hole must be re-located (lowered) to avoid excessive oil consumption.
Fitment
79-84 1340cc Shovel (NU)
KB Performance, 1340cc Shovel pop-up piston kit. +.030"
Availability:Yes
Description
High compression pop-up piston set. 9.5:1 CR. Piston weight 388gr. Piston pin weight 97gr.
Head type: Dome / Dome -47cc.
Compression height 1.285" / Bore 3.4980".
Stroke 4.250".
Rod length 7.440" / Cyl. length 5.330".
Comes with T7 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise.
Note: Top compression ring will need additional clearance. See instructions.
Note: Around 30% of stock 1340cc Shovel cylinders may present a problem in combination with the location of some of the oil return holes since KB pistons have a wider piston ring pack for better piston stability in the cylinder. In these cases the oil return hole must be re-located (lowered) to avoid excessive oil consumption.
Fitment
79-84 1340cc Shovel (NU)
