Description
- Black springs
- Black body
- S: Single tube body
- Piston diameter: 36mm
- D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- L: Adjustable length
- Length: 336 +10/-0 mm
- Stroke: 89 mm
- Rate N/mm: 32 N/mm
- Position: rear
- Mounted spring: 66422-032
- Packaging unit: pair
- ABE approved
Fitment
93-99 Dyna Low Rider FXDL (FXD), long version; 16-17 Dyna Low Rider S FXDLS (FD2), long version; 99-05 Dyna Super Glide Sport FXDX (FD1); 03-04 Dyna Super Glide Sport FXDXI (FD1); 00-03 Dyna Super Glide T-Sport FXDXT (FD1); 99-03 Dyna Wide Glide FXDWG (FD1), long version; 06-08 Dyna Wide Glide FXDWG (FD2), long version; 93-99 Dyna Wide Glide FXDWG (FXD), long version; 03-04 Dyna Wide Glide FXDWGI (FD1), long version; 05-06 Dyna Wide Glide FXDWGI (FD2), long version

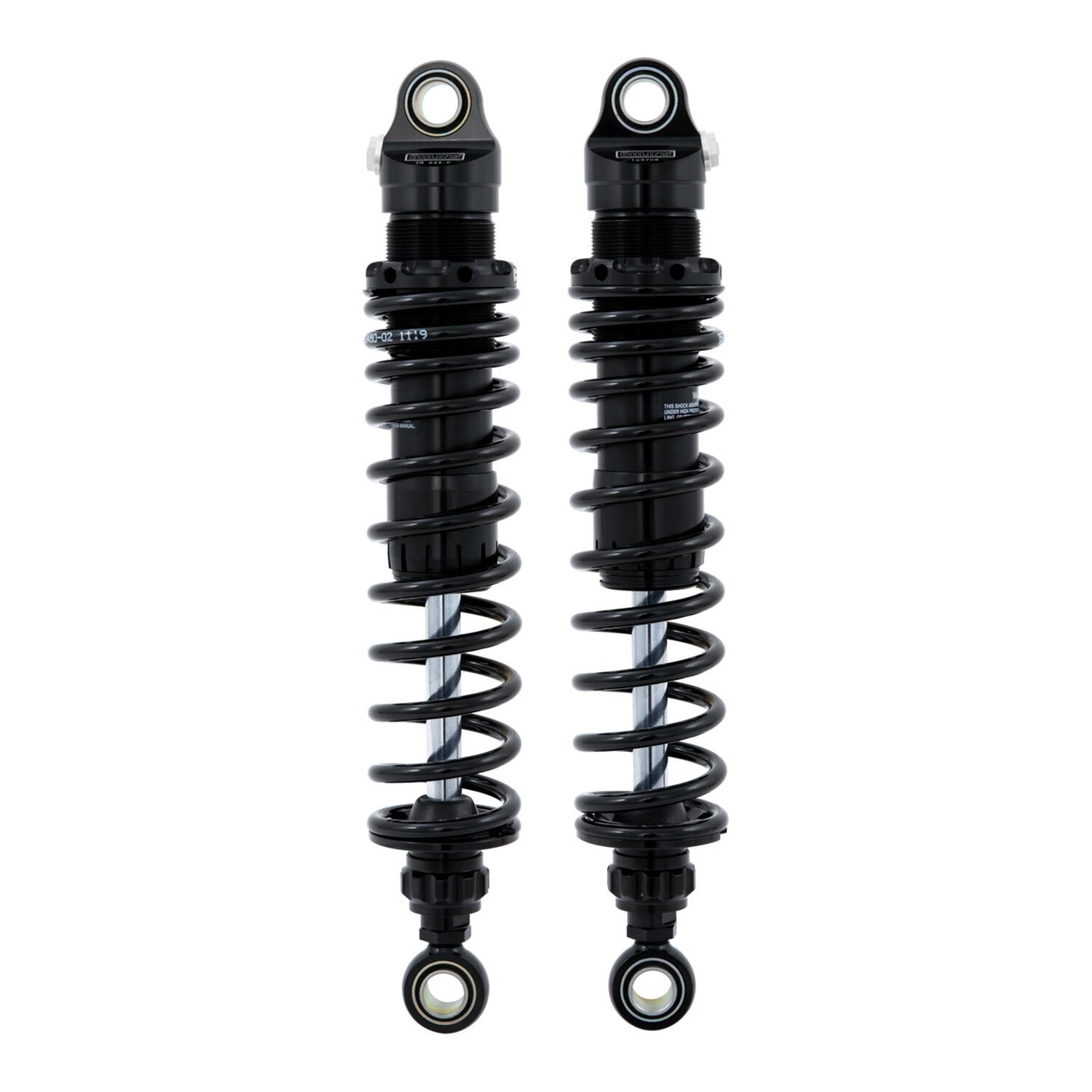

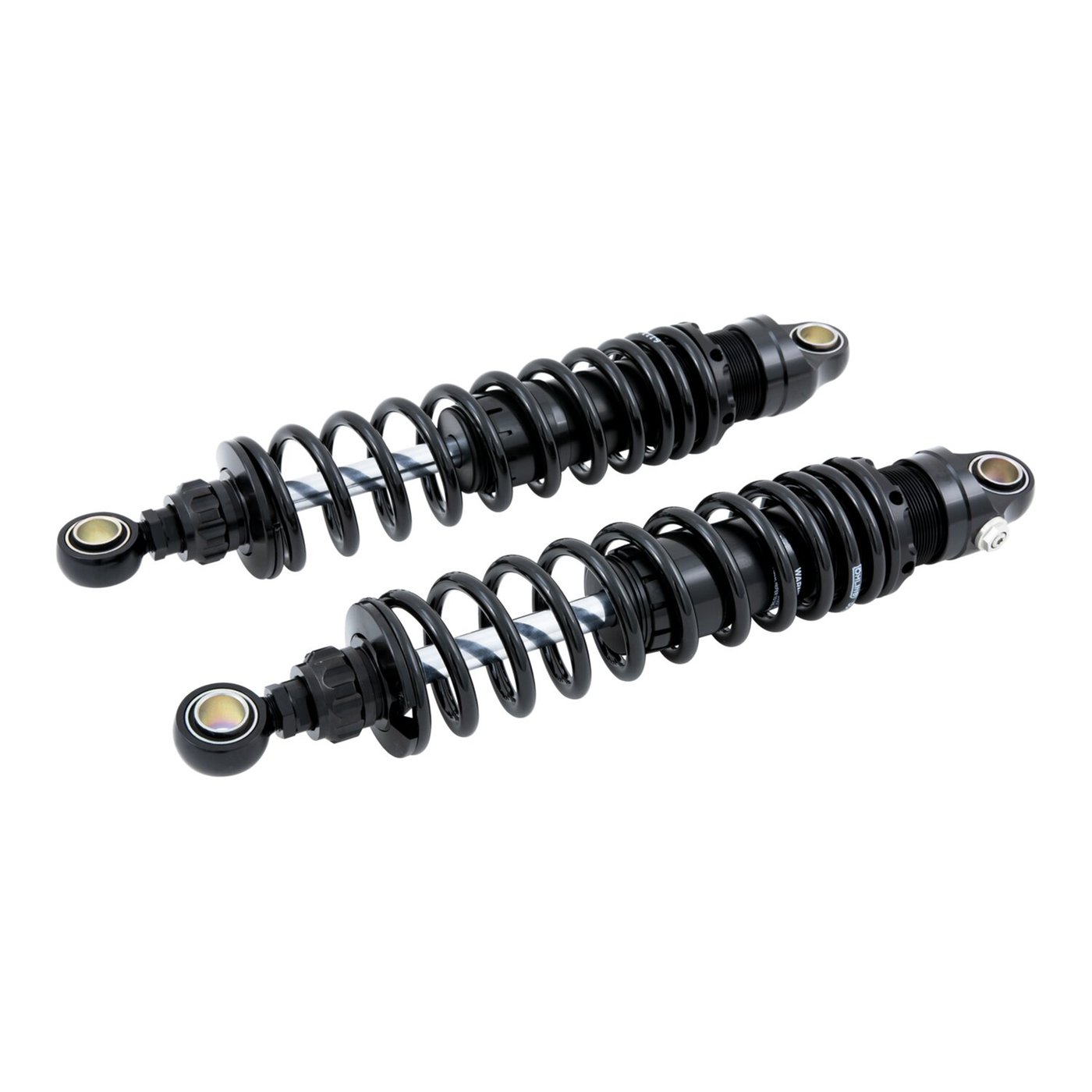

Öhlins, STX36 Blackline rear shock absorber set. 336mm
Availability:Yes
Description
- Black springs
- Black body
- S: Single tube body
- Piston diameter: 36mm
- D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- L: Adjustable length
- Length: 336 +10/-0 mm
- Stroke: 89 mm
- Rate N/mm: 32 N/mm
- Position: rear
- Mounted spring: 66422-032
- Packaging unit: pair
- ABE approved
Fitment
93-99 Dyna Low Rider FXDL (FXD), long version; 16-17 Dyna Low Rider S FXDLS (FD2), long version; 99-05 Dyna Super Glide Sport FXDX (FD1); 03-04 Dyna Super Glide Sport FXDXI (FD1); 00-03 Dyna Super Glide T-Sport FXDXT (FD1); 99-03 Dyna Wide Glide FXDWG (FD1), long version; 06-08 Dyna Wide Glide FXDWG (FD2), long version; 93-99 Dyna Wide Glide FXDWG (FXD), long version; 03-04 Dyna Wide Glide FXDWGI (FD1), long version; 05-06 Dyna Wide Glide FXDWGI (FD2), long version
