Description
- Black springs
- Clear body
- S: Single tube body
- Piston diameter: 36mm
- D: Monotube high pressure gas type shock absorber with internal reservoir in the main body
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- L: Adjustable length
- Length: 336 +10/-0 mm
- Stroke: 77 mm
- Rate N/mm: progressive 16-26 N/mm
- Position: rear
- Mounted spring: 00480-02
- Packaging unit: pair
- ABE approved.
The STX36 is a shock that's been around the block and it paid it's dues when it comes to performance and durability. Especially for the cruiser market when taking riding a step up, the STX36 is an excellent investment when suspension characteristics are important to you.
Fitment
16-18 XL1200CX Roadster (XL2); 16-18 XL1200 Iron (XL2); 04-09 XL1200R Roadster (XL2); 00-03 XL1200S Sport (XL1) short version; 99-03 XL53C (XL1); 04-16 XL883 (XL2); 09-18 XL883N Iron (XL2); 00-03 XL883R (XL1); 04-08 XL883R (XL2); 06-16 XL883R Roadster (XL2) (NU)

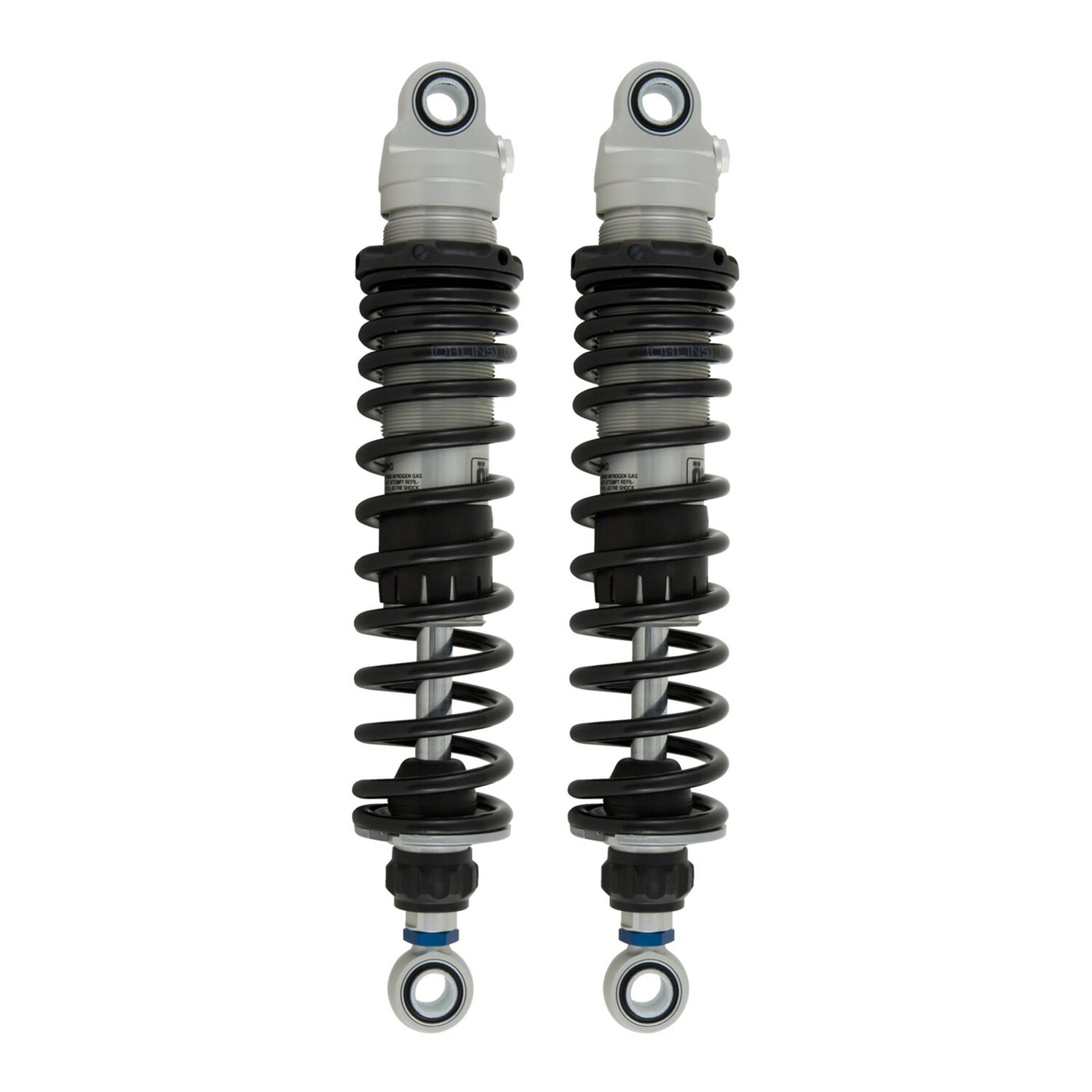

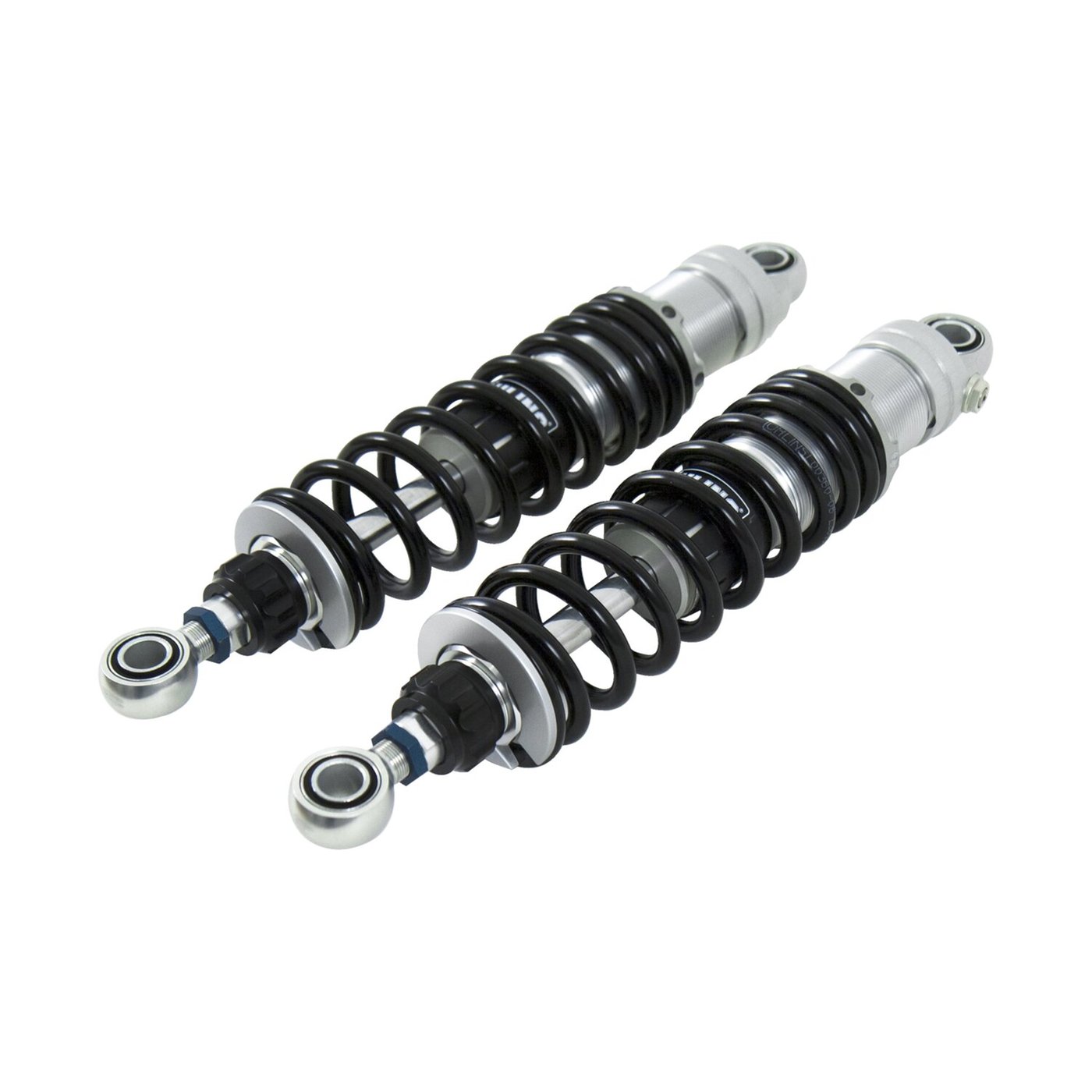

Öhlins, STX36 Twin rear shock absorber set. 336mm
Availability:Yes
Description
- Black springs
- Clear body
- S: Single tube body
- Piston diameter: 36mm
- D: Monotube high pressure gas type shock absorber with internal reservoir in the main body
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- L: Adjustable length
- Length: 336 +10/-0 mm
- Stroke: 77 mm
- Rate N/mm: progressive 16-26 N/mm
- Position: rear
- Mounted spring: 00480-02
- Packaging unit: pair
- ABE approved.
The STX36 is a shock that's been around the block and it paid it's dues when it comes to performance and durability. Especially for the cruiser market when taking riding a step up, the STX36 is an excellent investment when suspension characteristics are important to you.
Fitment
16-18 XL1200CX Roadster (XL2); 16-18 XL1200 Iron (XL2); 04-09 XL1200R Roadster (XL2); 00-03 XL1200S Sport (XL1) short version; 99-03 XL53C (XL1); 04-16 XL883 (XL2); 09-18 XL883N Iron (XL2); 00-03 XL883R (XL1); 04-08 XL883R (XL2); 06-16 XL883R Roadster (XL2) (NU)
