Description
- Black spring
- Clear body
- 46mm diameter piston
- S: Single tube
- D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- S: Hose mounted hydraulic spring preload adjuster
- Length: 320.5 mm
- Stroke: 43.5 mm
- Spring 21102-36
- Rate N/mm: 105 N/mm

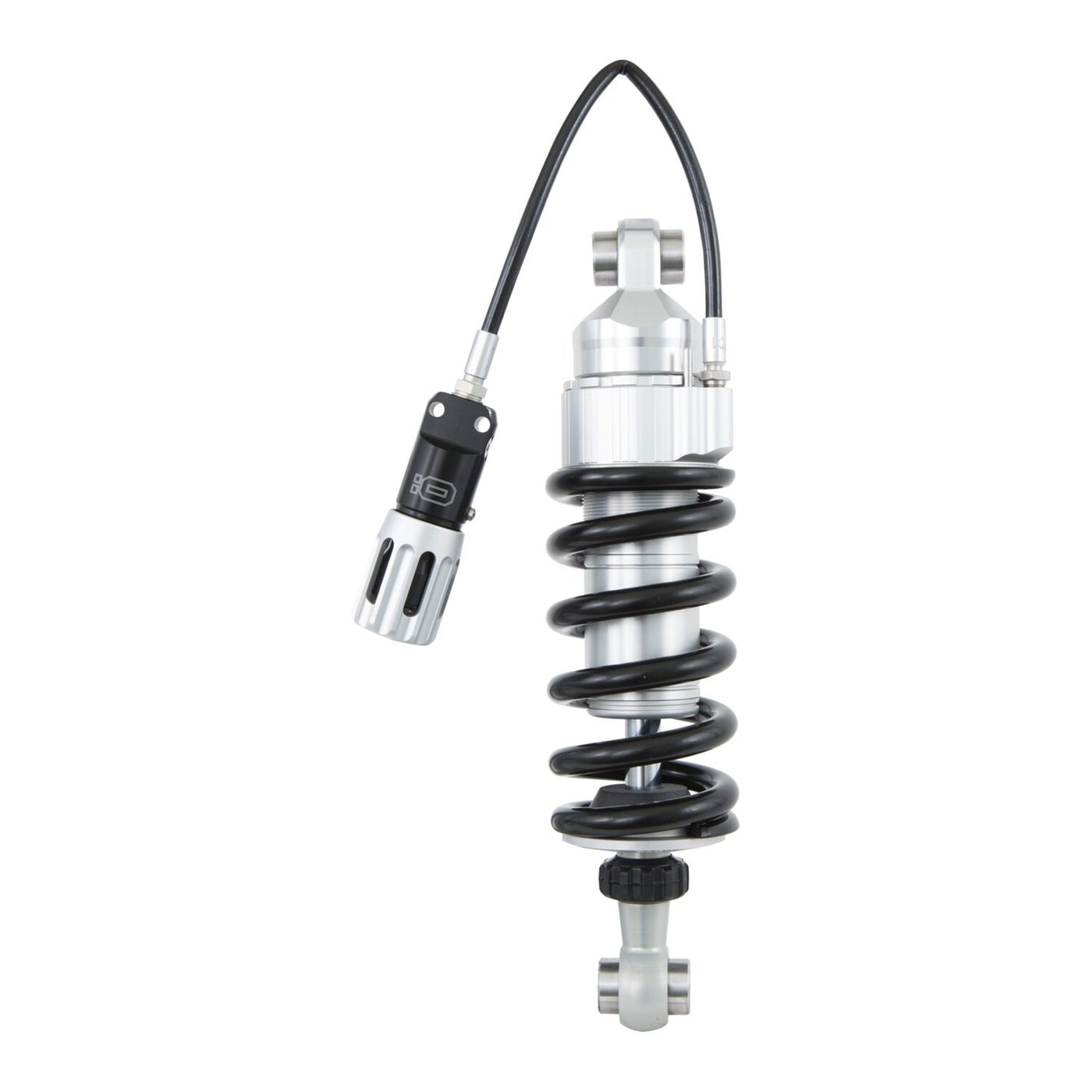

Öhlins STX46 Custom & Heritage rear shock absorber offers a classic timeless look with advanced technology. The STX46 is a monotube high pressure gas type shock absorber 46mm piston diameter with a internal reservoir. Complete with installation instructions.S5
Fitment
Softail: 2020 FLDE Deluxe 107; 18-21 FLSL Slim 107; 18-20 FXBB Street Bob 107; 21-24 FXBBS Street Bob 114; 18-20 FXLR Low Rider 107; 20-24 FXST Softail Standard 107
Öhlins, STX46 Softail rear shock absorber. 330mm
Availability:Yes
Description
- Black spring
- Clear body
- 46mm diameter piston
- S: Single tube
- D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body
- R1: Adjustable rebound damping. Adjuster wheel above the end eye
- S: Hose mounted hydraulic spring preload adjuster
- Length: 320.5 mm
- Stroke: 43.5 mm
- Spring 21102-36
- Rate N/mm: 105 N/mm
Öhlins STX46 Custom & Heritage rear shock absorber offers a classic timeless look with advanced technology. The STX46 is a monotube high pressure gas type shock absorber 46mm piston diameter with a internal reservoir. Complete with installation instructions.S5
Fitment
Softail: 2020 FLDE Deluxe 107; 18-21 FLSL Slim 107; 18-20 FXBB Street Bob 107; 21-24 FXBBS Street Bob 114; 18-20 FXLR Low Rider 107; 20-24 FXST Softail Standard 107
