Images are for reference only. Actual item may look different!

brand

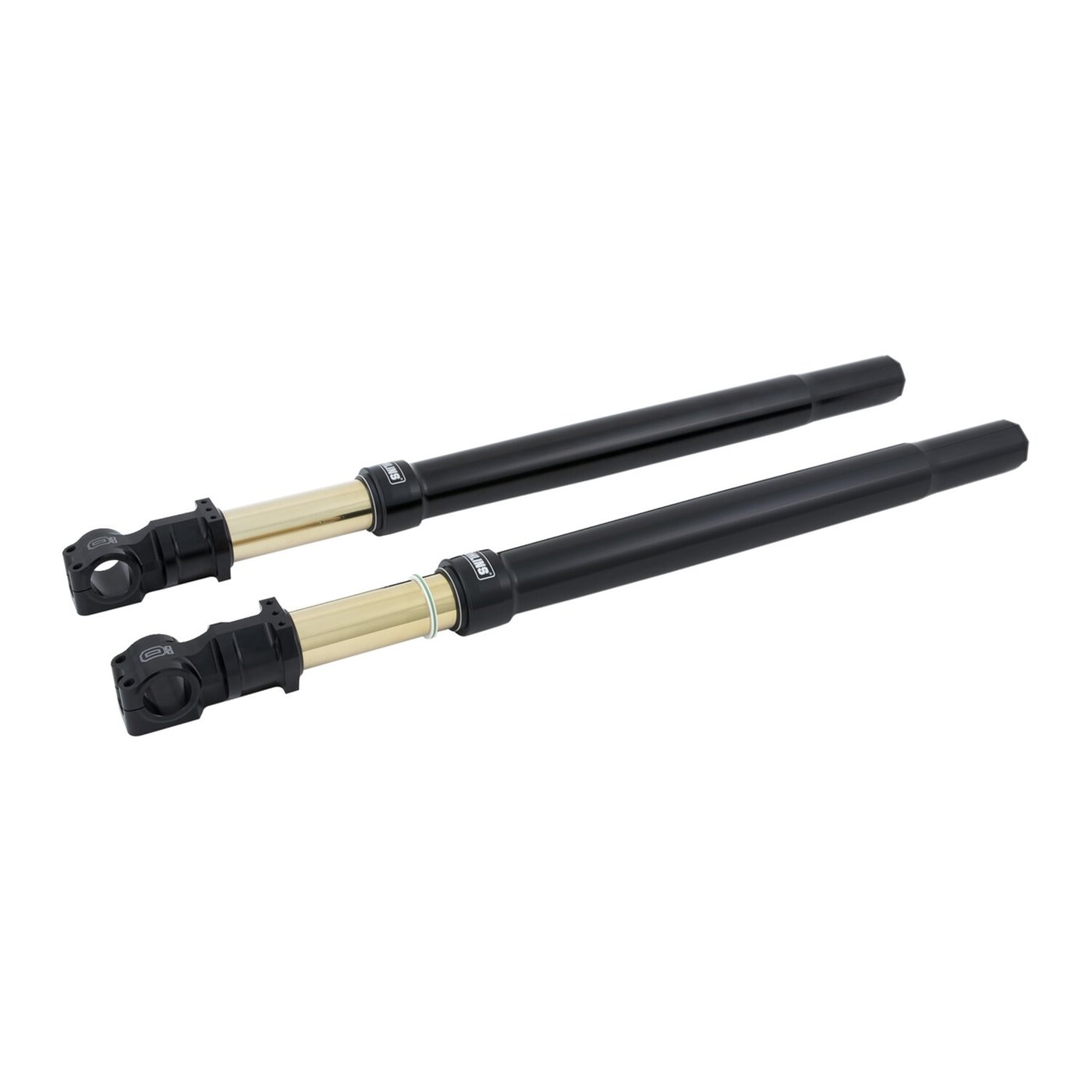

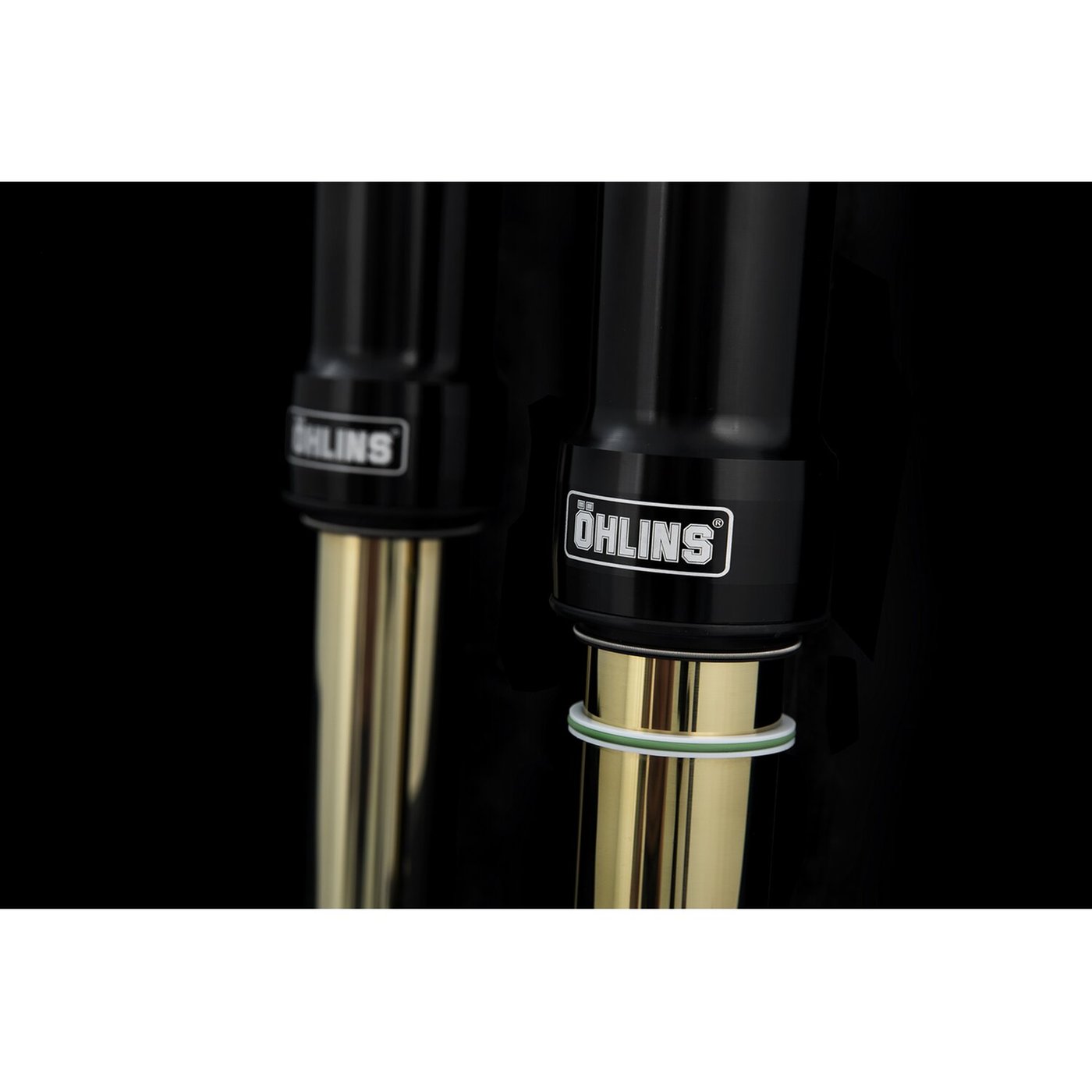

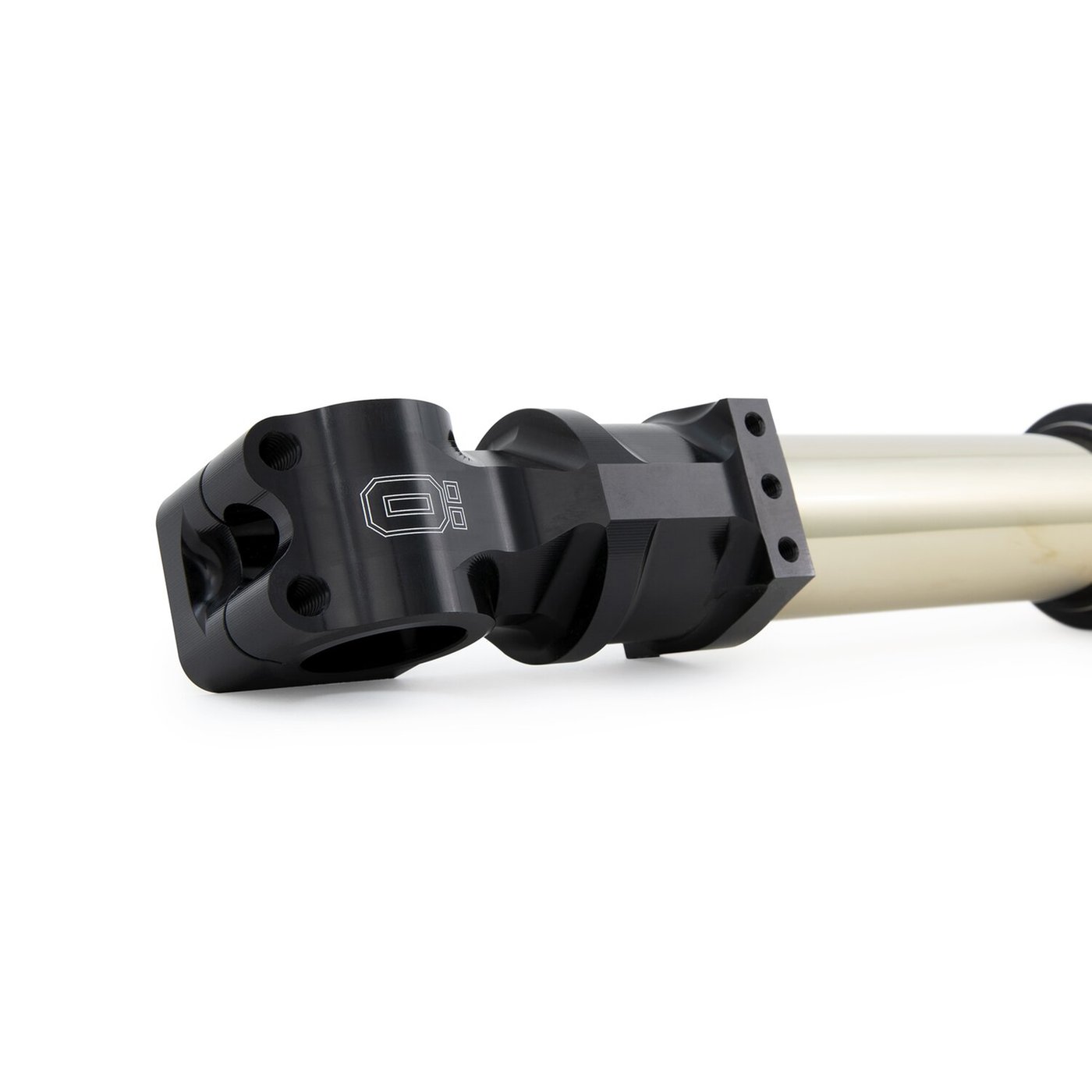

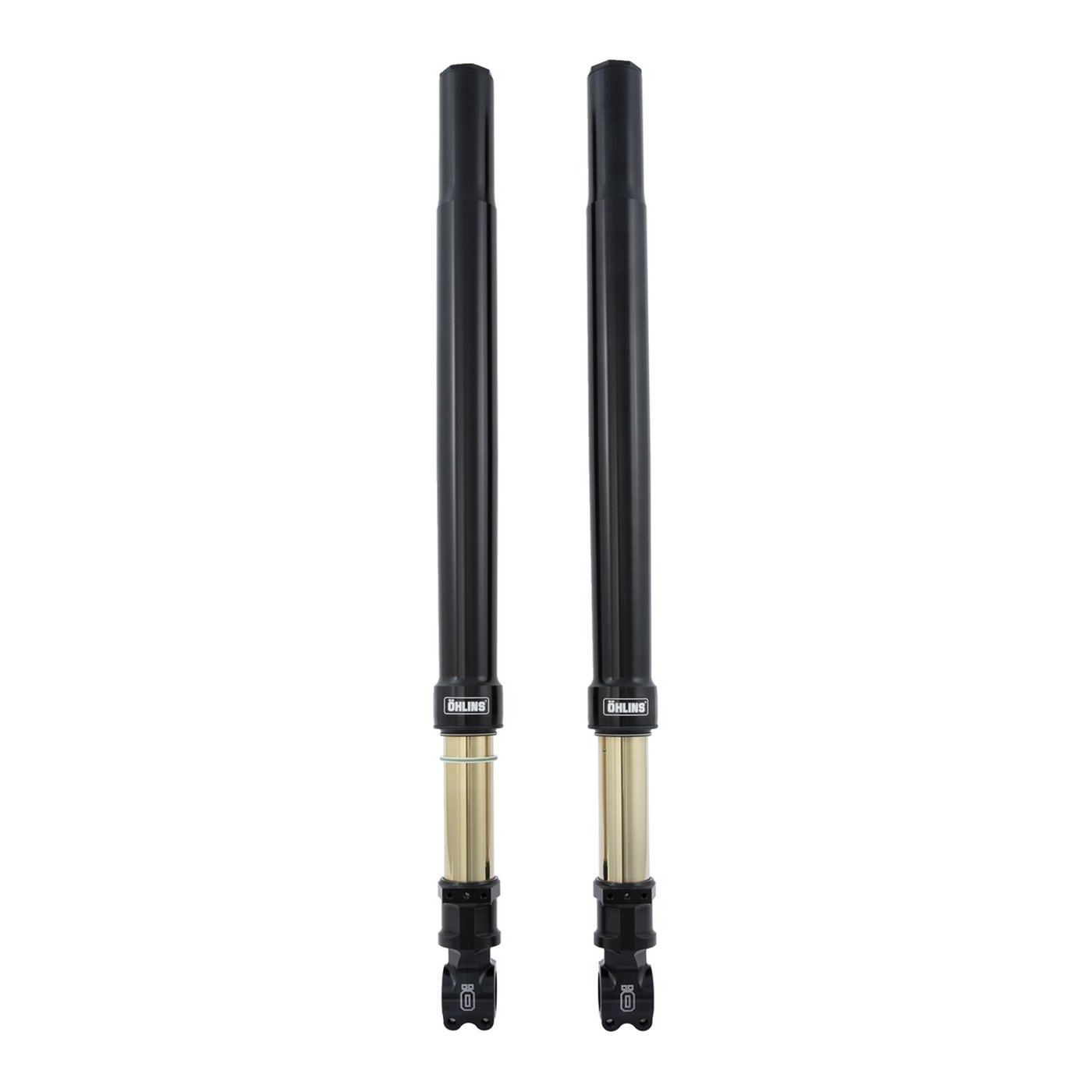

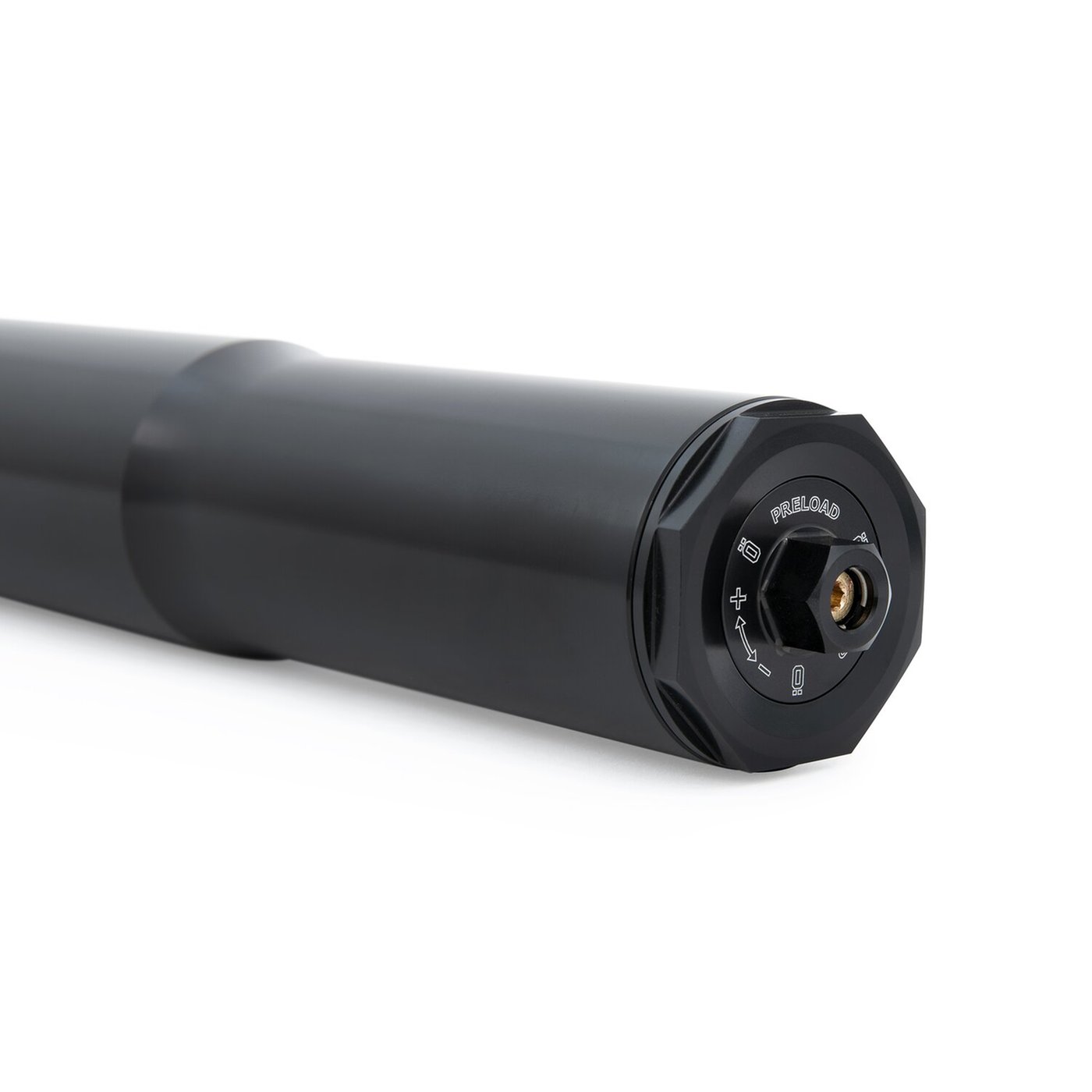

Öhlins, Universal USD 765mm 12N/mm front fork. Black

Item No:

993835

Brand:

Öhlins

UM:

Pr

New

Availability:No

Description

Black anodized (Blackline). Öhlins offers a high quality 43 mm Upside Down / inverted universal front fork for any ­custom builder that wants to give the bike supreme inverted ­suspension in the familiar Öhlins Racing design. The technology used is ­proven throughout the years and works perfectly in a whole range of custom applications. The fork allows tuning by allowing adjustment of spring preload, compression and rebound damping adjustment to best match the rider's preferences. Note: Does not include brake caliper or fender mounts for maximum adaptability. - Length 765 mm - Spring rate 12 N/mm - Fitted spring 08866-02 (MCS 963139) - Fully adjustable preload, compression & rebound. - Stroke 120 mm - Blackline design, with gold anodized finish - Top clamp diameter 50mm - Lower clamp diameter 54mm - Wheel axle diameter 32mm. Note: Does not include brake caliper or fender mounts for maximum adaptability. Note: Please contact Motorcycle Storehouse Tech Support if you want to add Öhlins 988984 KR8 Component Kit (upgraded triple tree set), for 14-up H-D Tourings, to your order. Tech Support can advise you on correct spring set-up for a specific rider weight and, if required, mods for Bagger Racing applications.

Fitment

Universal
