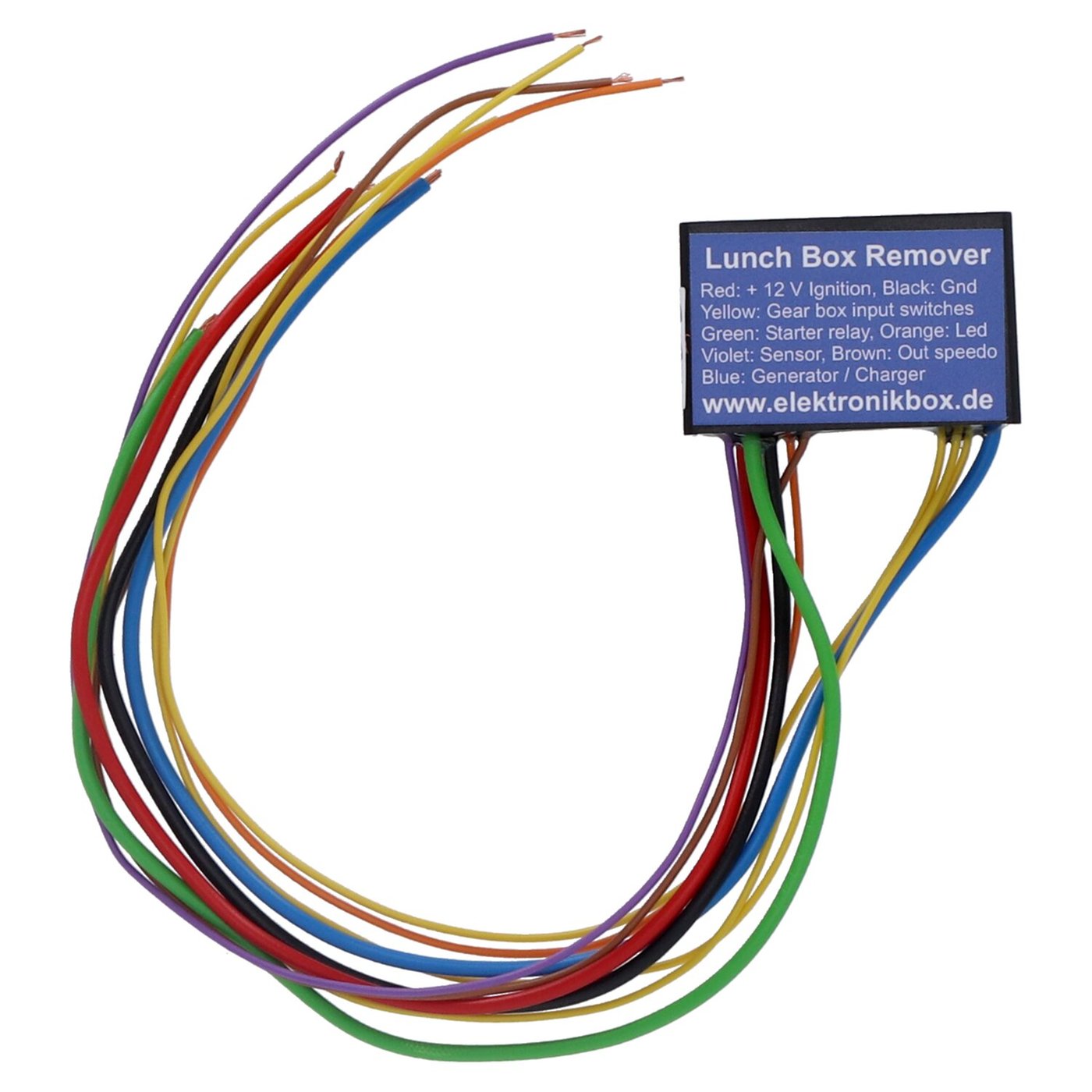

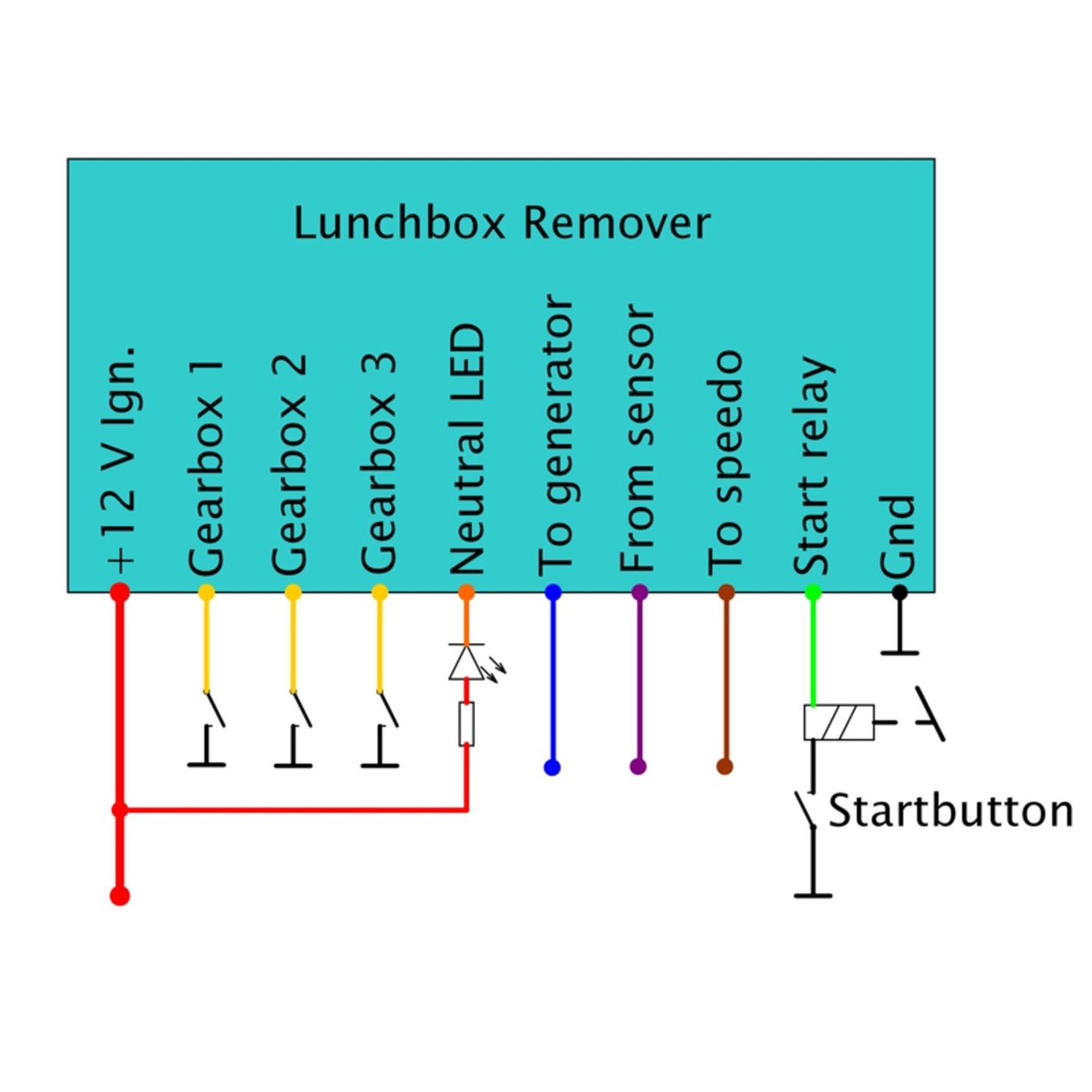

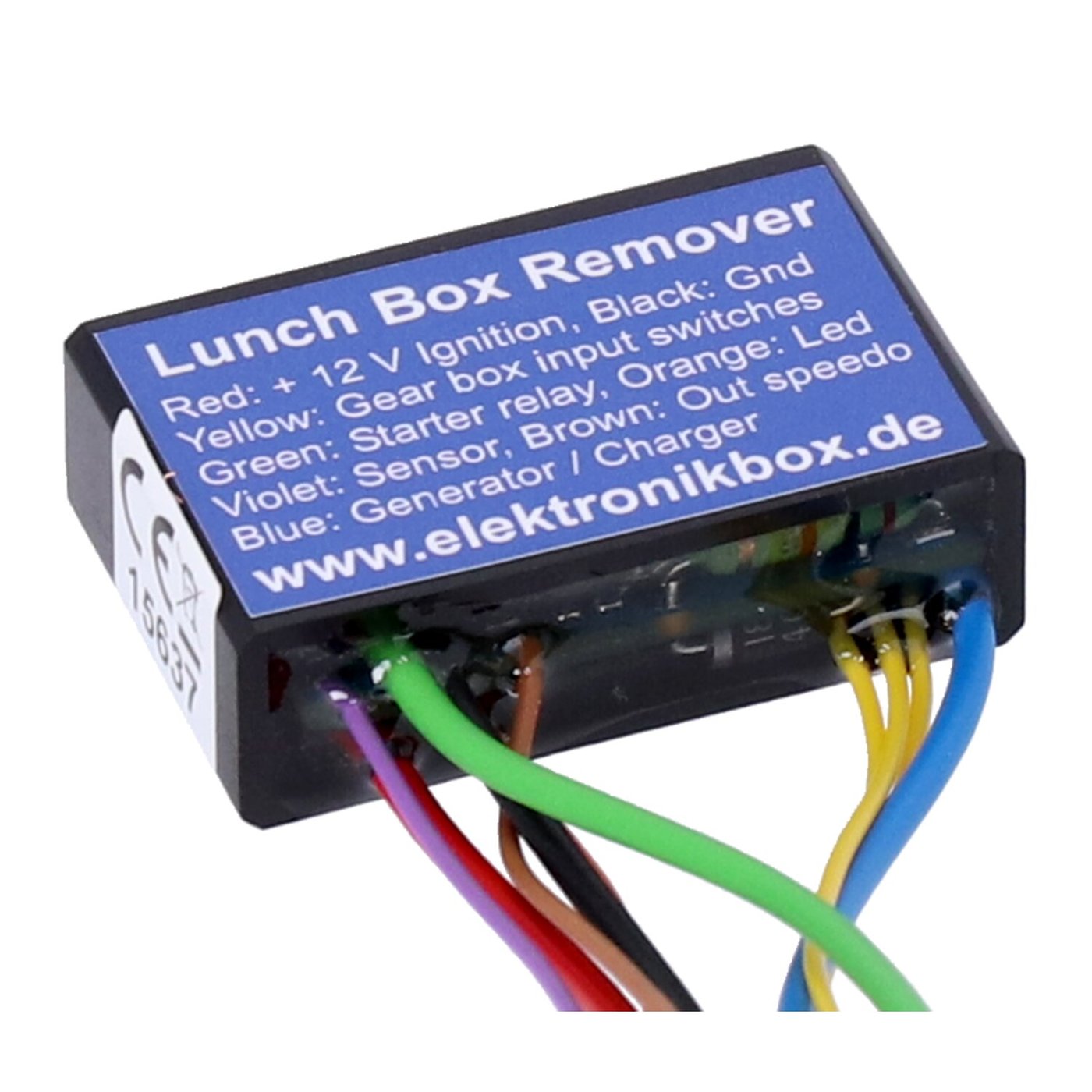

This module is used to simplify removal of the standard "lunchbox" speedometer instrument and its original bulky harness. The Lunchbox Remover module has an integrated neutral switch control with an output for the starter relay and the neutral indicator LED. A virtual load resistor for the charging system is built-in and the signal from the speed sensor is boosted from 0.2 Volt to 8 Volt to for compatibility with most aftermarket speedometers for your bike.

- Dimensions: 41 mm length x 26 mm wide x 12,5 mm height

- Body material: Shock resistant ABS plastic, waterproof poured raisin

- Case color: Black

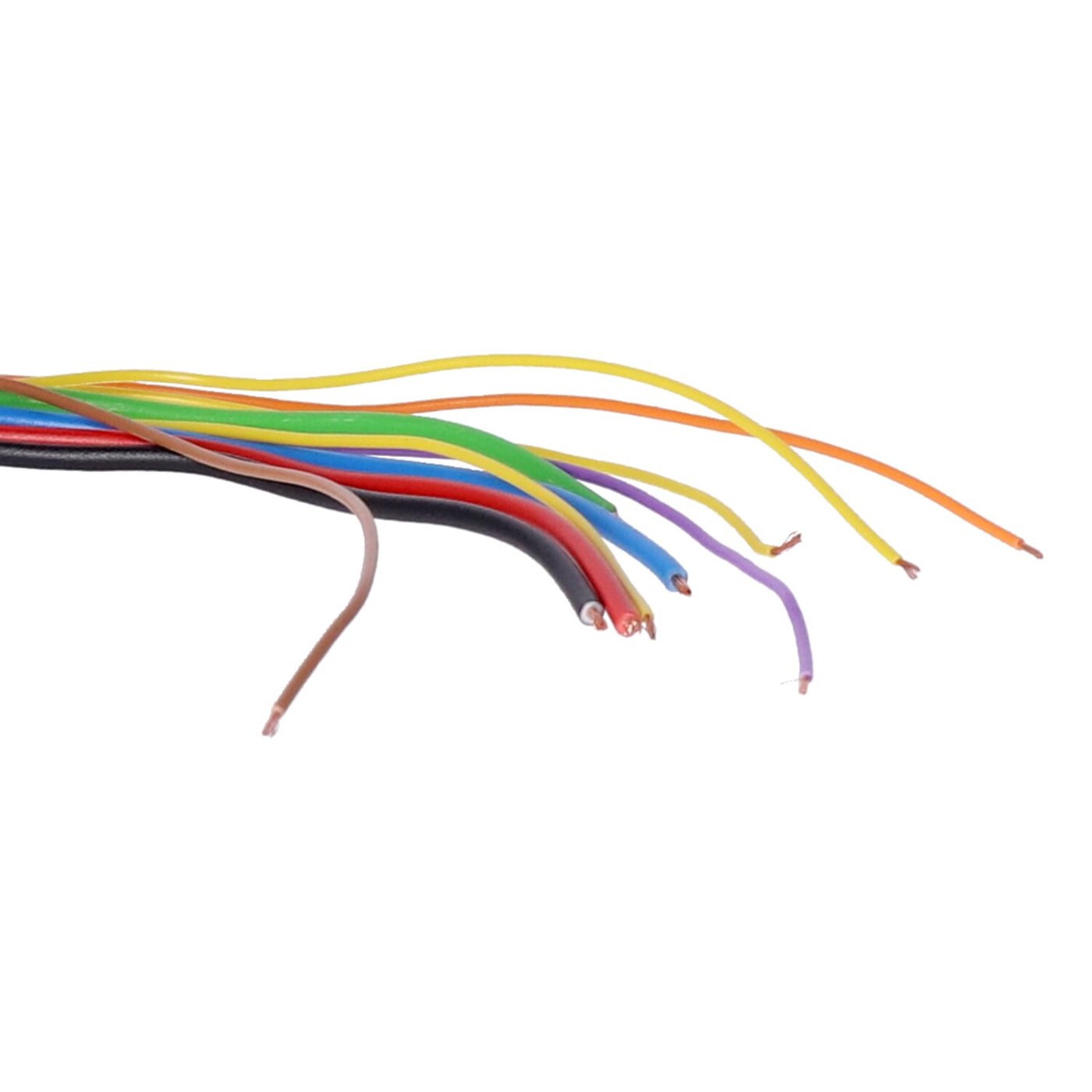

- Connections: 0.14 qmm, 20 cm

- Maximum ambient temperature: 80 degree Celsius

- Input voltage range: 7 - 18 Volt
