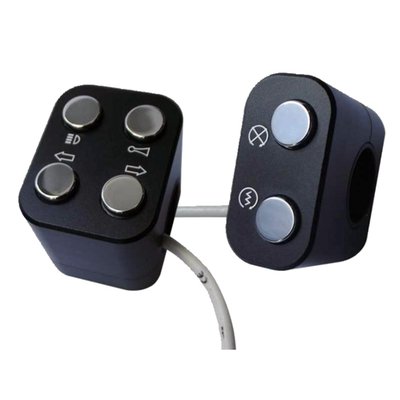

Fits 1" (25.4mm) and 22mm handlebars. Black anodized CNC machined left & right side aluminum switch housings with installed momentary style push button switches. Switches include button caps in chrome, red, green and gray. Left side dimensions: 40mm wide x 50mm high x 50mm deep. Right side dimensions: 26mm wide x 50mm high x 50mm deep.
Elektronikbox
New

Axel Joost Elektronik, handlebar switch set

#993560

Stock:Yes

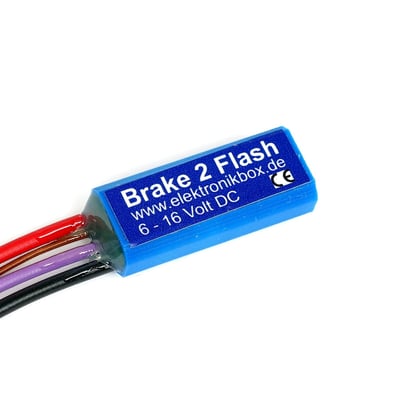

Offers 14 different programmable flash modes. Dimensions: 38 mm x 16 mm x 11 mm.
Elektronikbox

Axel Joost Elektronic, Brake 2 Flash module

#567429

Stock:Yes

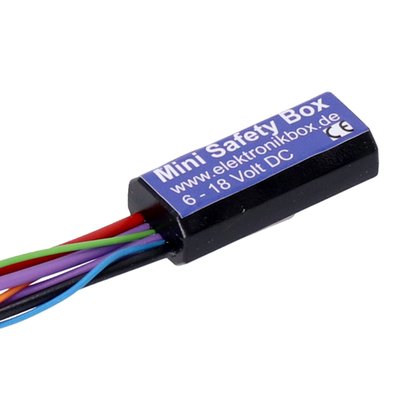

This safety module checks the neutral and sidestand/jiffy switch inputs, to enable or disable the ignition or starter motor. The ignition remains on when the side stand is out, so the bike can be started. But when the bike is put in gear the ignition will be killed if the side stand is not in. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: Black ABS waterproof molded - Input voltages range: 7 - 18 Volt - Connections: Inputs 0.14mm², Outputs 0.5 mm² - Max. Output current: 5 Ampere for brake and indicator outpus - Maximum ambient temperature: 80 degrees Celsius
Elektronikbox

Axel Joost Elektronik, Mini Safety Box module

#954155

Stock:Yes

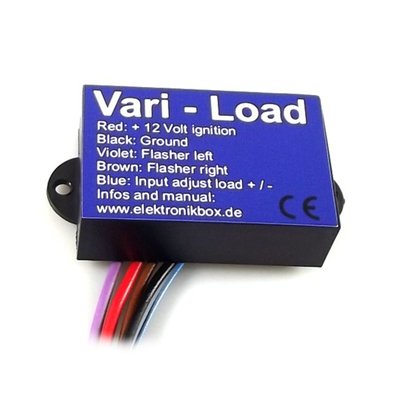

Digital 50-step adjustable load equalizer. It is simply connected to the turn signals. The load is 50-step variable by touching the 'programming cable' to ground (less load) or to positive +12V (more load), after which it is automatically saved. This will make this set-up compatible with any requirement of the bike to prevent the ECU triggering trouble codes or any issue with the OEM turn signal relay. - Dimensions: 56 mm x 37 mm x 17 mm - Body material: ABS waterproof molded - Input voltage range: 7 - 18 Volt - Connections: Inputs 0,14 mm², Outputs 0,75 qmm - Output power range: Between 2 x 1 Watt and 2 x 15 Watt - Maximum ambience temperature: 80 degree Celsius. Note: This module should be used with turn signals that pull a maximum of 10W total. Note: The Vari Load can also be used as a tool in the workshop. You can adjust to required load value with the Vari Load on a customer's bike. Then you will then know what resistor to use for that specific application. A printed table with resistors is listed the manual.
Elektronikbox

Axel Joost Elektronik, 'Vari Load' adjustable load equalizer

#954146

Stock:Yes

Used to change an EU taillight to US requirements, used when exporting to the US. Most US bikes have a combined taillight/brakelight, where the taillight bulb shines brighter when the brake is applied. The 'Rear Light US' is a micro-controller based module that converts the three signals from separate turn signals and 1 taillight/brakelight into two outputs for a taillight/brake/turn signal combination set-up. For converting an EU-bike to the regulations of the US-market, the Rear Light US is the perfect choice. - Dimensions: 40 mm x 25 mm x 12,5 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 0.14 mm², Outputs 0.75 qmm - Output power: Max. 21 Watt / Output - Maximum ambient temperature: 80 degree Celsius
Elektronikbox

Axel Joost Elektronik, Rear Light US conversion module

#954149

Stock:Yes

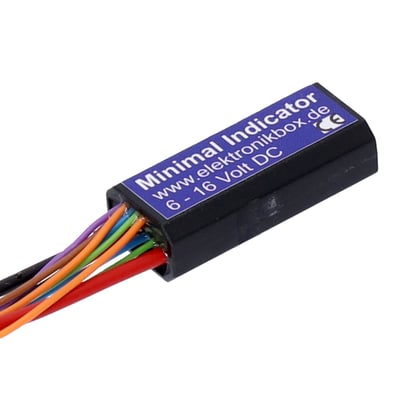

This module can help simplify your dash for a much cleaner look. This small module (installs inside headlamp or even inside the handlebar) can power a 3-color LED to show turn signal, high beam, neutral or oil pressure LED indicators. Up to 4 indicators can be clearly displayed at the same time on a single 3-color LED showing Red, green, blue or orange. Even 2 or 3 signals can be shown simultaneously. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: 0.14 mm², 20 cm - Maximum ambient temperature: 80 degree Celsius
Elektronikbox

Axel Joost Elektronik, Minimal Indicator module

#954152

Stock:Yes

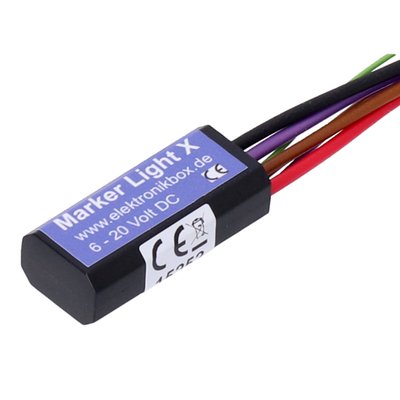

This module is used to automatically switch off a light, like a marker light or turn signal daylight running light (DRL), for better visibility of the turn signal during daytime. The module is very small and can be installed almost anywhere, including inside most handlebars. The module can also be used to cancel the marker/running light function of the turn signals. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 0.14 mm², Outputs 0.75 qmm - Maximum current: 5 Ampere per output - Maximum ambient temperature: 80 degree Celsius
Elektronikbox

Axel Joost Elektronik, Marker light X

#954147

Stock:Yes

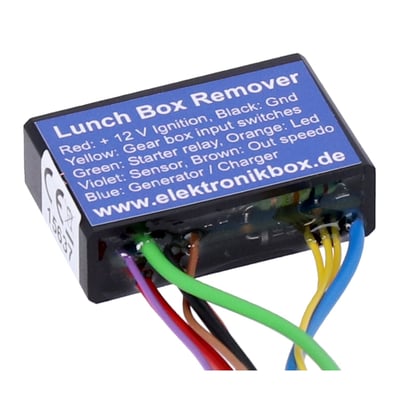

This module is used to simplify removal of the standard "lunchbox" speedometer instrument and its original bulky harness. The Lunchbox Remover module has an integrated neutral switch control with an output for the starter relay and the neutral indicator LED. A virtual load resistor for the charging system is built-in and the signal from the speed sensor is boosted from 0.2 Volt to 8 Volt to for compatibility with most aftermarket speedometers for your bike. - Dimensions: 41 mm length x 26 mm wide x 12,5 mm height - Body material: Shock resistant ABS plastic, waterproof poured raisin - Case color: Black - Connections: 0.14 qmm, 20 cm - Maximum ambient temperature: 80 degree Celsius - Input voltage range: 7 - 18 Volt
Elektronikbox

Axel Joost Elektronik, BMW K 'Lunchbox Remover'

#954166

Stock:Yes

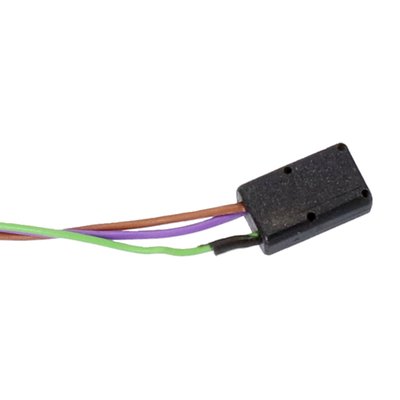

Many speedometers have just one turn signal indicator LED for the turn signals. The Flash Merger combines left & right turn signal output to the single indicator in your speedo so it will work correctly. The maximum load is 100 mA or 1.2 Watt. - Dimensions: 14 mm x 9 mm x 5 mm - Body material: ABS waterproof injection molded - Input voltage range: 7 - 18 Volt - Connections: 0.14 qmm, 10 cm long - Maximum current: 100 mA - Maximum power: 1.2 Watt
Elektronikbox

Axel Joost Elektronik, Flash Merger

#954145

Stock:Yes

A US to EU taillight converter. This electronic unit will modify the wiring of imported U.S. H-D models, that have a combined turn signal/taillight bulb, to the separate taillight/turn signal as required for approval, or by regional legislation of some EU countries. The Rear Light EU devides the two output wires to 4 separate outputs for up to two parallel wired taillights. Dimensions: 40 mm x 25 mm x 12.5mm. Note: See PDF for detailed instructions Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
Elektronikbox

Axel Joost Elektronik, Rear Light EU

#567428

Stock:Yes

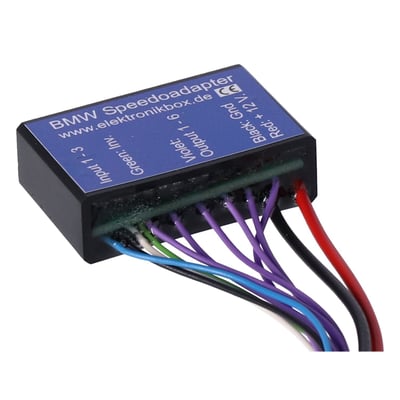

Module used to convert any BMW K model, without gear indicator, to a modern speedometer with gear indicator. Works with the 3 transmission switches of the K models and has 6 outputs for neutral indication and the 5 speeds. The green cable allow to invert the output signals and allows a connection to a wide range of speedometers. Alternatively you can also connect 6 LEDs to the outputs as gear indicator when your custom speedo has no gear indicator. - Dimensions: 41 mm length x 26 mm wide x 12,5 mm height - Body material: Shock resistant ABS plastic, waterproof poured raisin - Case color: Black - Connections: 0.14 qmm, 20 cm - Maximum ambient temperature: 80 degree Celsius - Input voltage range: 7 - 18 Volt
Elektronikbox

Axel Joost Elektronik, BMW K 'Speedo Adapter'

#954167

Stock:Yes

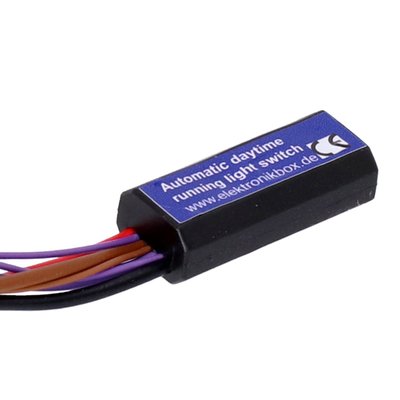

This Module controls the automatic switching from DLR (Daytime Running Light) to low beam headlamp through a sensor. The switch time from DLR to low beam is less than 0.5 seconds, like when driving into a tunnel. Switch time duration from low beam to DLR is a slower 3 seconds, so light reflections of other traffic or street lamps will not influence low beam. Sensitivity can be adjusted and stored in 60 steps. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Sensor: 4.1mm LDR cell, front surface encapsulated against moisture - Connections: 0.14 qmm for input, 0.75 qmm for power outputs - Maximum output power: 2 x 60 Watt
Elektronikbox

Axel Joost Elektronik, Daytime Running Light switch

#954138

Stock:Yes

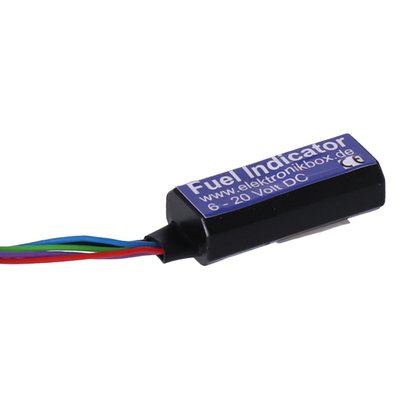

This fuel reserve indicator module will work with every potentiometer based fuel sensor. You can store 2 different fuel values. The LED flashes if the fuel amount is below of the first value. The LED is continuously lit when the fuel value is below of the second value. The module is not sensitive for an increasing or decreasing resistance of the sensor when fuel is getting low. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 0.14 mm², 20 cm - Maximum ambient temperature: 80 degree Celsius
Elektronikbox

Axel Joost Elektronik, Fuel Indicator module

#954153

Stock:Yes

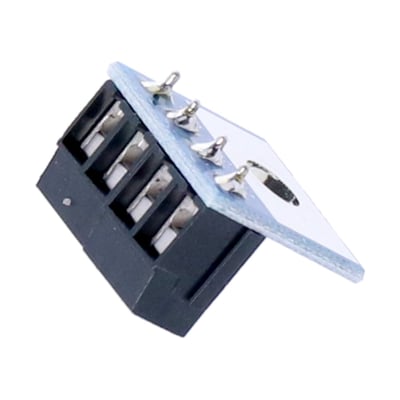

Many electrical problems on a bike are the result of a bad ground connection to the battery. The frame is often used as a minus pole with varying results due to rust, paint or dirt at the contact point. The Gnd-Split is a 4-pin divider that can be installed directly to the minus pole of the battery allowing the installation of 4 ground cables for a perfect trouble-free connection for years to come. - Splits up to 4 cables with a maximum size of AWG14 (2.5 mm2) - Prevents bad ground connections - Dimensions: 22 x 22 x 16mm
Elektronikbox

Axel Joost Elektronik, GND split. Minus pole splitter

#954164

Stock:Yes

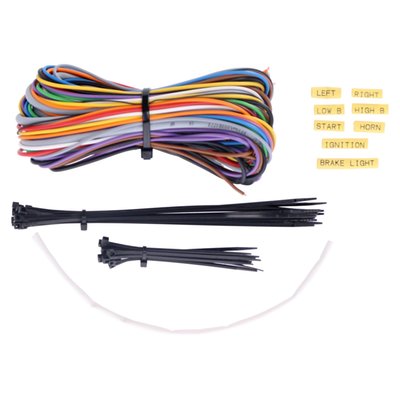

This set is composed of all wiring required to enable a bike builder to construct his own professional wiring harness (excl. connectors) for a bike with a electronic box / brain box. Comes with the right colors, lengths and diameters. Includes: - Control wire 6 x 0.14 qmm. shielded with 4.9 mm diameter: 2m - Black. 0.14 qmm for the ground connections in the handlebar: 2m - Red. 1.5 qmm for the switched 12 Volt power connection: 2m - Black 1.5 qmm for a good ground connection at the bike: 3m - Brown 0.75 qmm for flasher right: 3m - Violet 0.75 qmm for flasher left: 3m - Orange 0.75 qmm: 2m - White 0.75 qmm: 2m - Gray 0.75 qmm: 2m - Yellow 0.75 qmm: 2m - Green 0.75 qmm: 2m - Blue 0.75 qmm: 2m - Shrink tube. lettered approx. 2cm long: 8x - Shrink tube. 30cm: 1x - Cable ties small. black color: 15x - Cable ties long. black color: 15x
Elektronikbox

Axel Joost Elektronik, wiring set for brain box

#954162

Stock:Yes

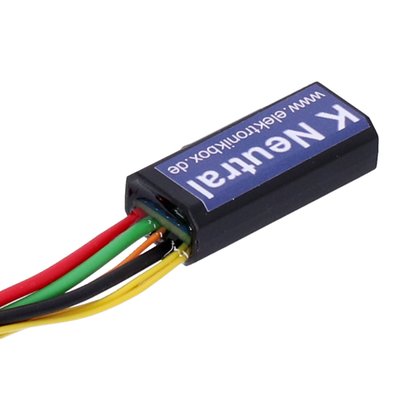

Used to provide a neutral gear indication on any new speedometer. The K Neutral uses the 3 gear switches found on BMW K motorcycles. The module has with a power output for both the neutral indicator LED and the starter relay. It therefore also allows using the starter relay (start the bike) without the need to pull the clutch. - Dimensions: 38 mm length x 16 mm wide x 11 mm height - Body material: shock resistant ABS plastic, waterproof poured raisin - Power consumption: approx. 20 mA - Case Color: Black - Connections: 0.14 qmm and 0,5 qmm, 20 cm - Maximum ambient temperature: 80 degree Celsius - Input voltage range: 6 - 18 Volt
Elektronikbox

Axel Joost Elektronik, BMW K Neutral

#954168

Stock:Yes

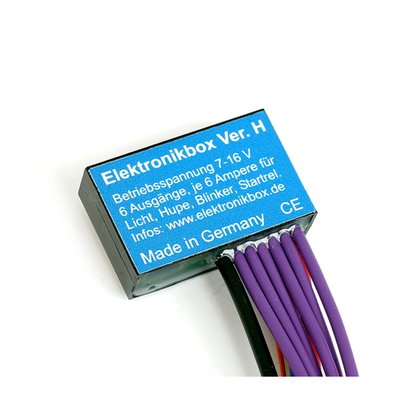

Basic brain box; Input voltage: 7 - 16 Volt; Connections: Control unit 0,5mm², user 1 mm², with 10 cm long wires; Max Amp. from 12V connection: 15 Amp.; Dimensions: 40 mm x 12.5 mm x 25 mm. When building a bike, or fully replacing the electrical wiring of an existing motorcycle, a brain box is a good option for a simple, solid and dependable wiring system. Lights are dimmed at starting. The brain boxes with handlebar wiring adapters simplify wiring and make it almost invisible when compared with some other brain boxes on the market. Housing is polycarbonate, waterproof cast with epoxy resin. Max. ambient temperature is 100 degree Celsius and maximum output is 5 Amp. per exit and 3 Amp. for horn. Compatible with miniature pushbutton control knobs that function with super thin wiring. Brain boxes can easily be tie-wrap clamped to frame tubes or similar. All come complete with super clear installation instructions. Note: Connecting starter motor directly on brain box will cause damage. The H-D starter motor takes 10Amp for the solenoid to switch and requires an additional small automotive relay between starter output of the brain box and the starter solenoid. Note: Added in 2025 is a gray cable. This is an output for the turn signal LED in the speedo. You can use this output if your speedo has only one LED for both directions.
Elektronikbox

Axel Joost Elektronik, brain box H

#567433

Stock:Yes

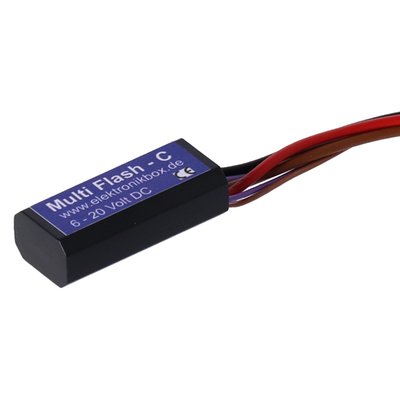

The Multi Flasher C (C for 'constant frequency') is a turn signal relay that converts any turn signal frequency, or even a troublesome permanent non-flashing signal of the OEM turn signal relay, to a steady 90 flashes per minute. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 0.14 mm², Outputs 0.75 qmm - Maximum current: 5 Ampere per output - Maximum ambient temperature: 80 degree Celsius Note: This module is not suitable for CAN bus equipped bikes. The CAN bus system could generate an error message in some bikes. In this case the 954146 Axel Joost 'Vari Load' is the better solution.
Elektronikbox

Axel Joost Elektronik, Multi Flash C

#954143

Stock:Yes

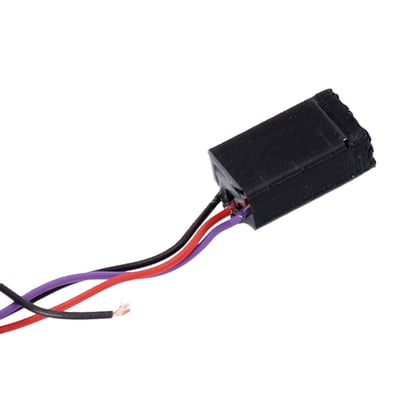

This module is a 6 Volt to 12 Volt converter. Used to run modern 12 Volt low wattage components, like LED indicators, taillights or speedometers on an old bike that still has its original 6 Volt system. The maximum allowable load is 3 Watt peak or 2 Watt constant. The module is small and fits inside the handlebar or even in the most LED taillights due to its small size. - Dimensions: 20 mm x 12 mm x 8 mm - Body material: PLA material, waterproof potted - Input voltage range: 6 - 8 Volt, max. 20 Volt - Connections: 20 cm cables with 0,14 mm² size - Output: 12 - 13,8 Volt, max. 2 Watt continuous - Maximum ambient temperature: 80 degree Celsius
Elektronikbox

Axel Joost Elektronik, 6 Booster. 6V to 12V converter

#954163

Stock:Yes

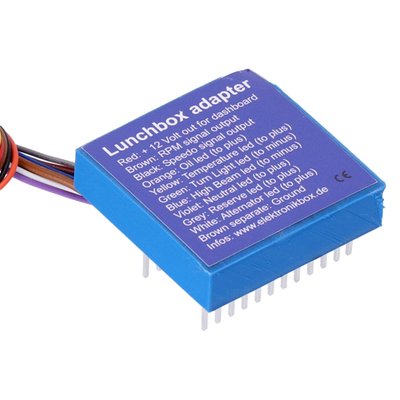

The Lunchbox Adapter allows the connection of several new speedos on the old harness connector what was connected to the old BMW speedo in older K models. The adapter makes the conversion of the old harness signals to a modern speedo easy. 10 output cables provide all necessary signals. The neutral signal is now compatible with modern speedos and the virtual load for the alternator is built-in. Fuel reserve signal for upto 1985 models is integrated. - Dimensions: 51 mm length x 51 mm wide x 15 mm height w/o connectors - Body material: Shock resistant ABS plastic, waterproof poured raisin - Case Color: Black - Connections: 0,14 qmm, 20 cm to the new speedo, 2 x 12 pin to original harness - Maximum ambient temperature: 80 degree Celsius - Input voltage range: 7 - 18 Volt
Elektronikbox

Axel Joost Elektronik, BMW K 'Lunchbox Adapter'

#954165

Stock:Yes
