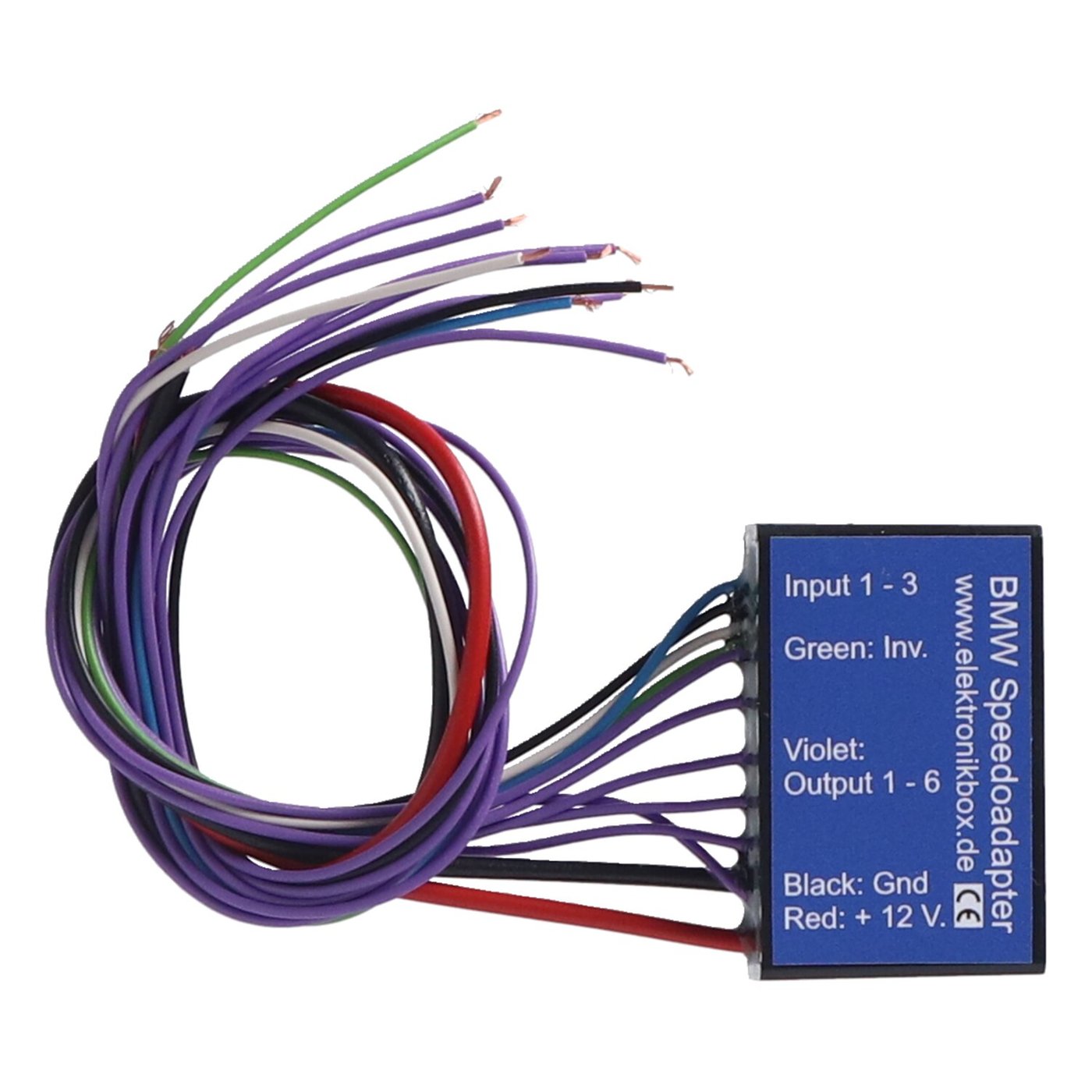

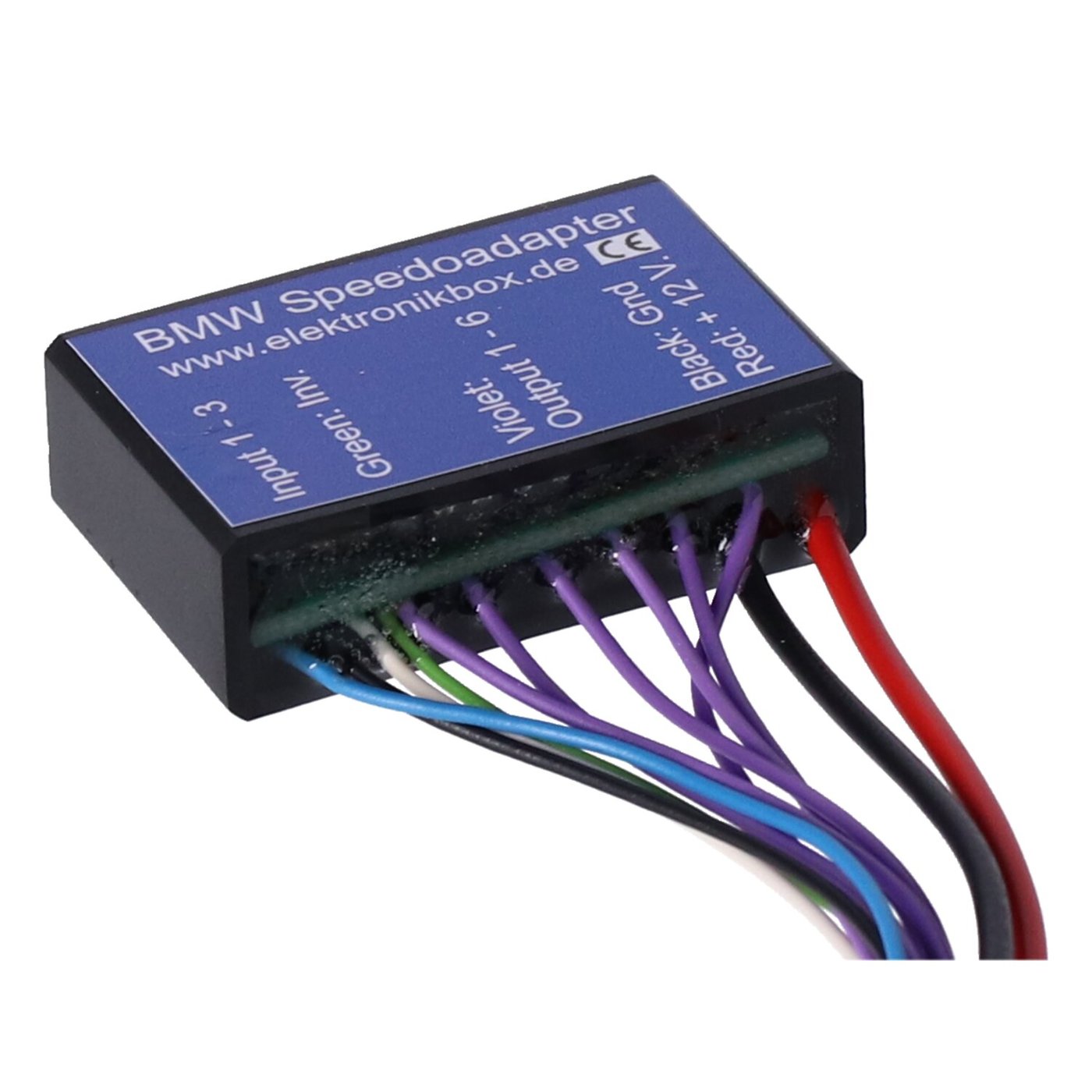

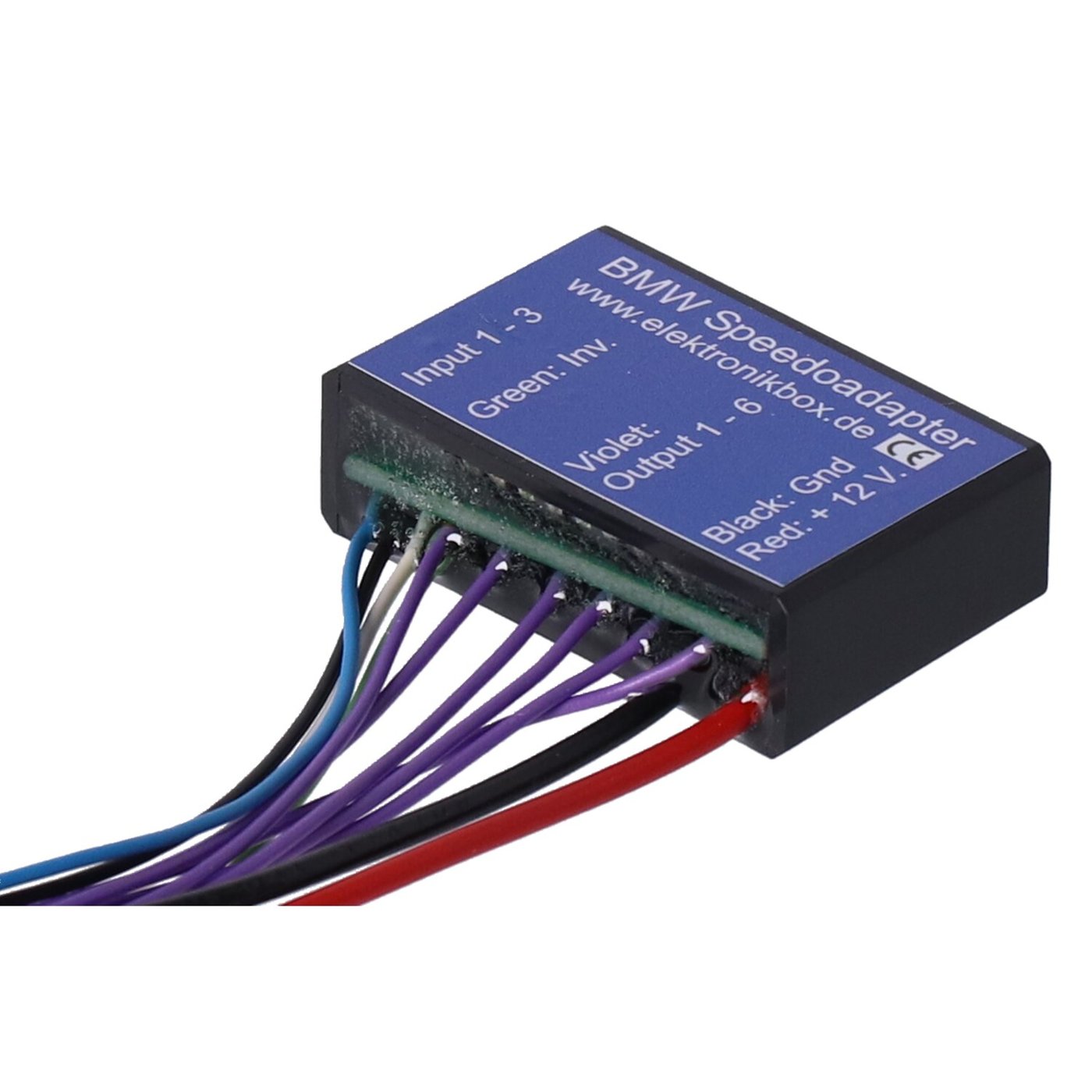

Module used to convert any BMW K model, without gear indicator, to a modern speedometer with gear indicator. Works with the 3 transmission switches of the K models and has 6 outputs for neutral indication and the 5 speeds. The green cable allow to invert the output signals and allows a connection to a wide range of speedometers. Alternatively you can also connect 6 LEDs to the outputs as gear indicator when your custom speedo has no gear indicator.

- Dimensions: 41 mm length x 26 mm wide x 12,5 mm height

- Body material: Shock resistant ABS plastic, waterproof poured raisin

- Case color: Black

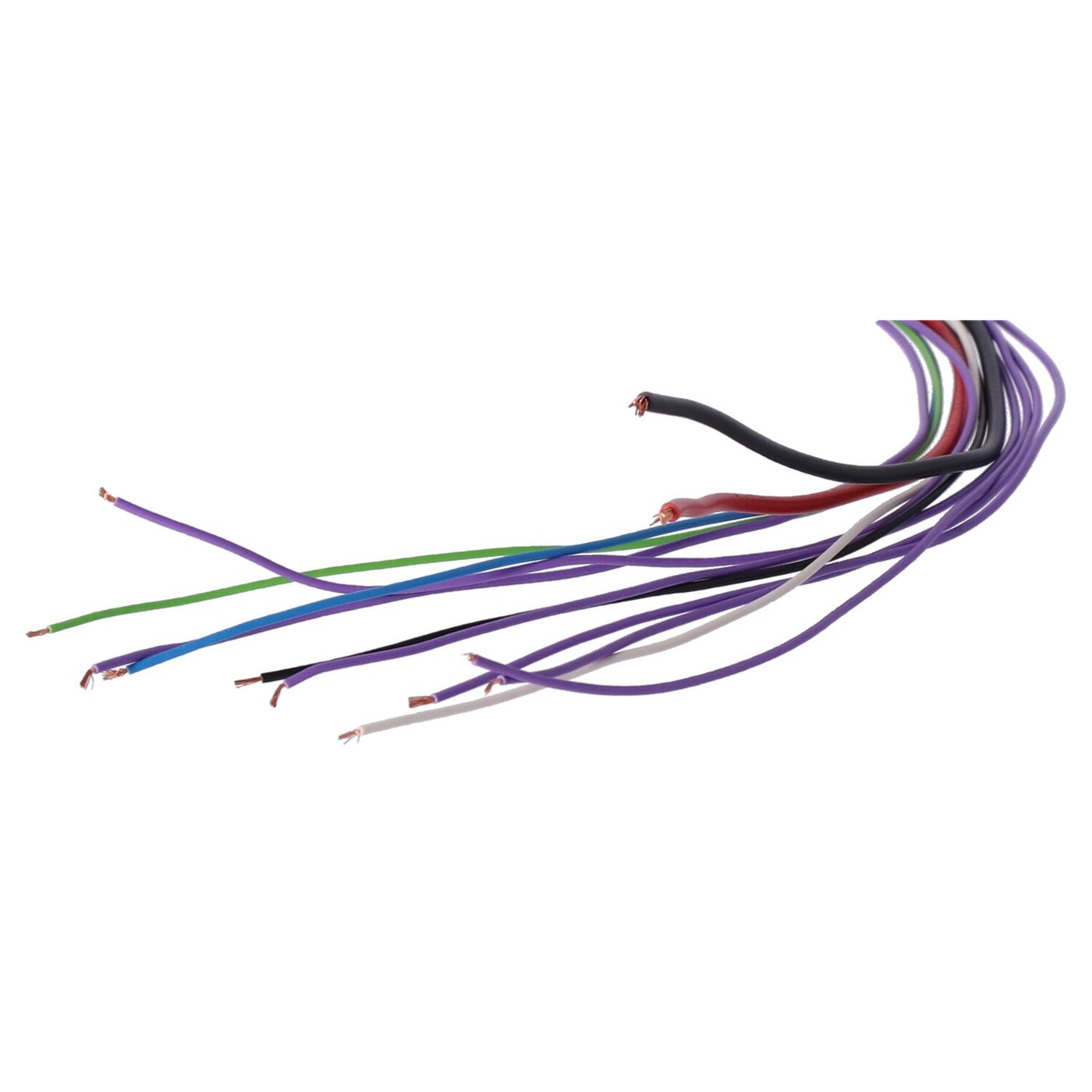

- Connections: 0.14 qmm, 20 cm

- Maximum ambient temperature: 80 degree Celsius

- Input voltage range: 7 - 18 Volt
