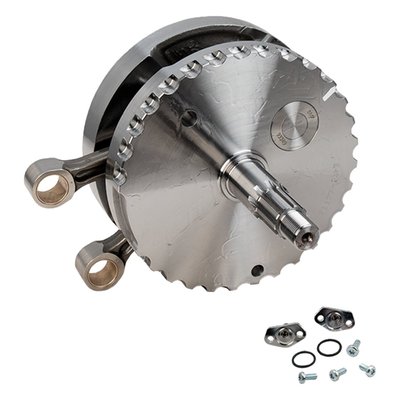

106" stroker engine. Balanced to 1108 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 99-06 4-1/2" stroke flywheel assembly

#915267

Stock:Yes

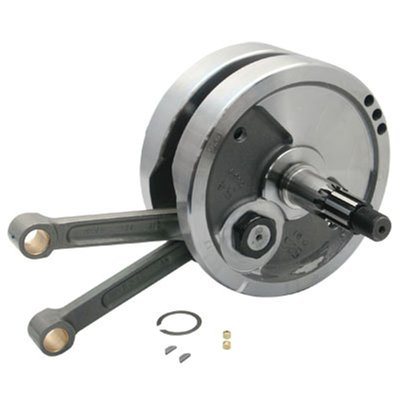

5" stroke with 8-1/4" small diameter flywheels. Stock replacement for S&S engines. No hassle in rebuilding or getting the right parts, it's all here in one package. These are exactly set-up like the flywheels used in current S&S production engines.
S&S

S&S, flywheel assembly for 103" P/SH-series engines

#915274

Stock:No

Used with 93/103/106 and 110/117 engines. Balanced to 1035 gram total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 99-06 4-3/8" stroke flywheel assembly

#915284

Stock:Yes

MCS

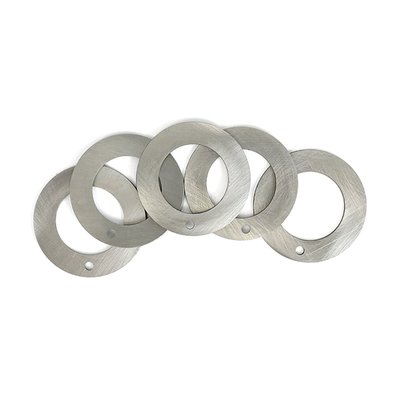

Flywheel washer SV, .066" (outside)

#519010

Stock:Yes

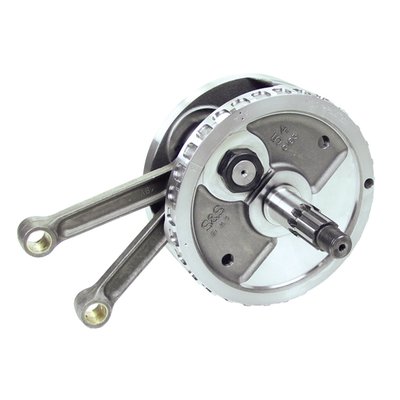

4 -1/4" stroke. Stock replacement for 80" (1340cc) fuel injected Evolution Big Twin models. Used with stock or stock weight pistons like S&S 536052 series. Re-balancing is not required. Note: These flywheels are notched and therefore compatible with fuel injected models. Note: For 90-99 models, with stock 3-piece flywheels with non-removable sprocket & pinion shafts, it is required to use pre-90 pinion shaft parts when converting to any (early) 5-piece flywheels assembly. S&S offers these parts as 904148, a '90-99 Pinion Shaft Conversion Kit'. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 84-99 flywheel assembly for OEM 80" engines

#536058

Stock:Yes

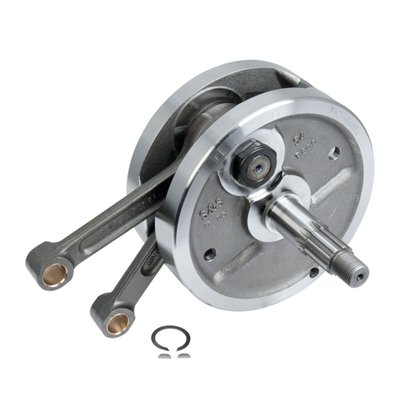

4-5/8" stroke with 8-1/2" diameter flywheels. Stock replacement for S&S engines with carburetor. No hassle in rebuilding or getting the right parts, it's all here in one package. These are exactly set-up like the flywheels used in current S&S production engines.
S&S

S&S, flywheel assembly for 98" V-series 3-5/8 bore engines

#531920

Stock:Yes

Without balancer gear. With full wristpin width connecting rods for use with S&S pistons. Comes fully assembled with flywheels, connecting rods, connecting rod bearings, pinion and sprocket shaft. Note: Required for installation of 923194 / 923193 131" (4.250" bore) and S&S 994438/994437 136" (4.320" bore) big bore cylinder and piston kits. Note: Balancer gear is not included. See 923271 for identical flywheel assembly with balancer gear installed.
S&S

S&S, M8 4-5/8" stroker flywheel assembly

#923271

Stock:No

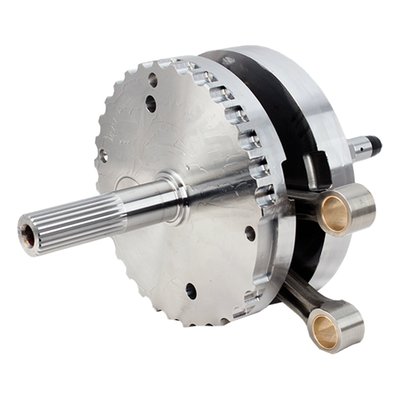

For 111" engines. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1035 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 06-17 4-1/8" stroke flywheel assembly

#531884

Stock:Yes

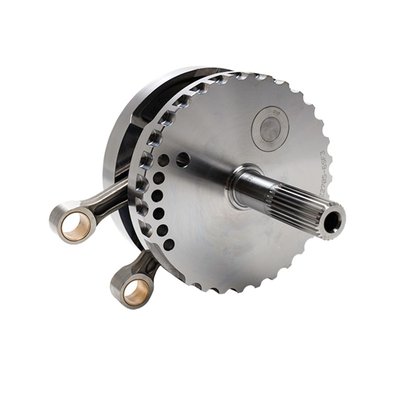

116/124 engines. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1035 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 07-17 Softail 4-5/8" stroke flywheel assembly

#915291

Stock:No

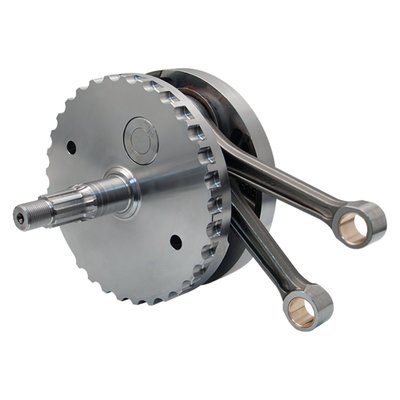

For 116/124" engines. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1035 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 06-17 4-5/8" stroke flywheel assembly

#915289

Stock:Yes

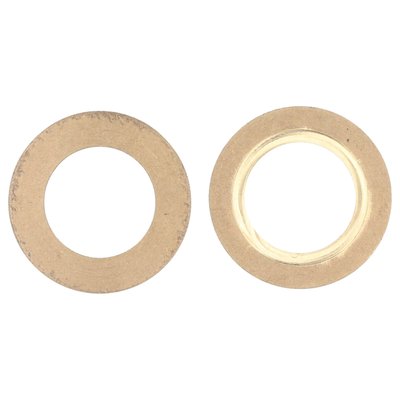

For use with aluminum retainers, fits between connecting rods and flywheels. Repl. 23972-72A
MCS

Flywheel thrust washer set, bronze

#502775

Stock:No

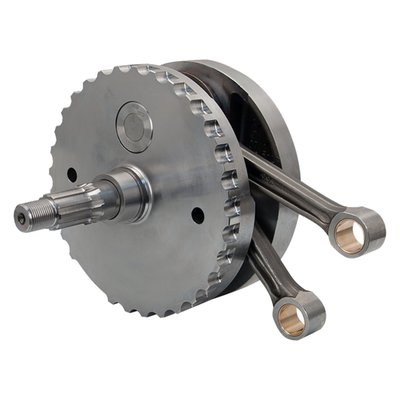

Stock stroke for 88" engines. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1230 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 00-06 Softail 4" stroke flywheel assembly

#915176

Stock:Yes

96/103/106 big bore. 110/117 S&S engines. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1035 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 00-06 Softail 4-3/8" stroke flywheel assembly

#915285

Stock:Yes

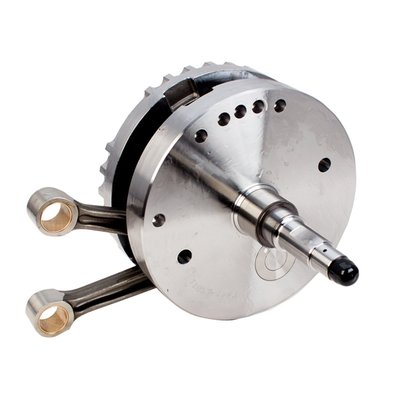

For 96/103/106 big bore. 110/117 engines with S&S pistons. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1035 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 06-17 4-3/8" stroke flywheel assembly

#915287

Stock:Yes

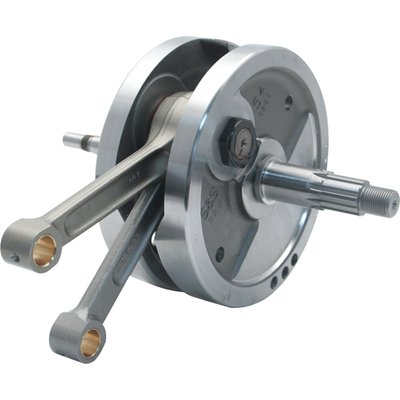

4 -1/4" stroke. Stock replacement for 80" (1340cc) carbureted Evolution Big Twin models. Used with stock or stock weight pistons like S&S 536052 series. Re-balancing is not required. Note: These flywheels are not notched and therefore not compatible with fuel injected models. Note: For 90-99 models, with stock 3-piece flywheels with non-removable sprocket & pinion shafts, it is required to use pre-90 pinion shaft parts when converting to any (early) 5-piece flywheels assembly. S&S offers these parts as 904148, a '90-99 Pinion Shaft Conversion Kit'. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 84-99 flywheel assembly for OEM 80" engines

#536044

Stock:Yes

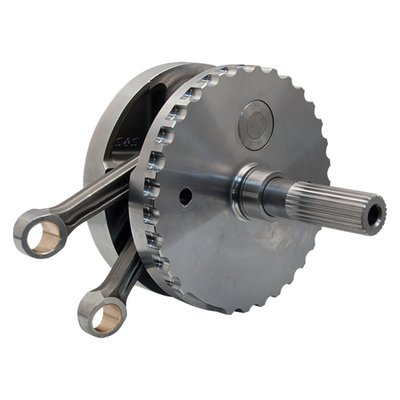

96/103/106/110/117 engines with stock 4-3/8" stroke. S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings. Balanced to 1035 grams total piston weight. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: Following is regarding 03-17 models. S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications. Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution. It is possible to use the stock weak 03-17 sprocket shaft bearing kit (OEM H-D 24004-03B) with S&S flywheels in 03-17 stock cases. However, S&S feels this roller bearing will not take the side loads produced in a high performance motor. S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used. To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available. This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor. Bearing inserts only are available as 978519, bearings only as 508960. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 07-17 Softail 4-3/8" stroke flywheel assembly

#915290

Stock:Yes

MCS

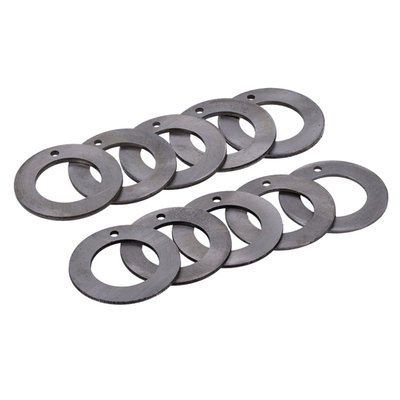

Flywheel washer set SV, std. (outside)

#519001

Stock:Yes

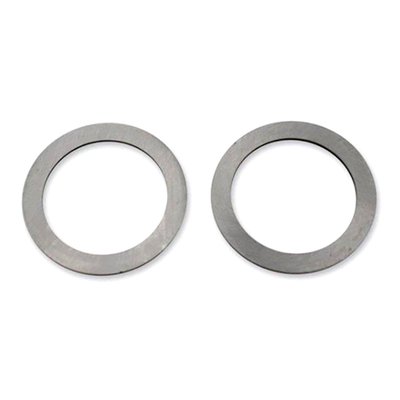

For use with steel retainers, fits between connecting rods and flywheels. Repl. 23972-21B.
MCS

Flywheel thrust washer set, steel (0.065" thick)

#517982

Stock:Yes

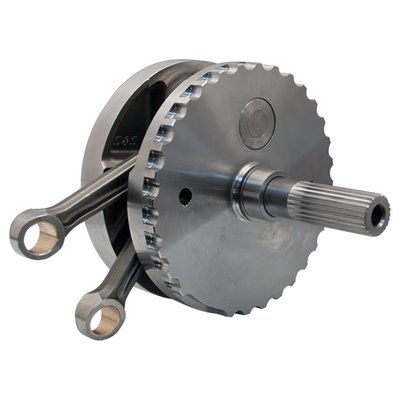

OEM compatible. Stock 96", 103", 110" stroke is 4-3/8". These S&S conrods have a (non Timken®) pressed-on sprocket shaft roller bearing race for use with the stock 24004-03B sprocket shaft bearing, a weaker solution but compatible with OEM components. Complete with tapered wrist pin ends that are compatible with stock H-D pistons. Balanced to 1035 grams total piston weight, which is compatible with OEM. Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact. Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods. The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter. The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins. Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available. Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation. It is of importance that a knowledgeable mechanic will install & make adjustments as required.
S&S

S&S, 06-17 4-3/8" stroke flywheel assembly. For OEM

#531879

Stock:No

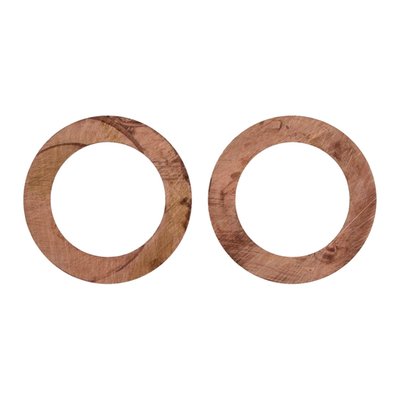

+.005 oversize. For use with aluminum retainers, fits between connecting rods and flywheels. OEM replacement reference none.
MCS

Flywheel thrust washer set, bronze. +.005"

#515681

Stock:Yes
