Cast Iron offers maximum durability and wear resistance for long distance touring. The standard since the invention of the piston engine. Note: Standard non-oversize dimensions (for reference only) are 0.4750" O.D. (12.07mm); 0.2342" I.D. (5.95mm); 1.655" OAL (42.04mm).
Kibblewhite
Discontinued

KPMI, exhaust valve guide. Cast iron. +.010"

#588722

Stock:Yes

Rubber coated fiber. OEM replacement reference 18265-37 / 176-37.
Cometic

Cometic, gasket valve guide. Fiber

#561597

Stock:Yes

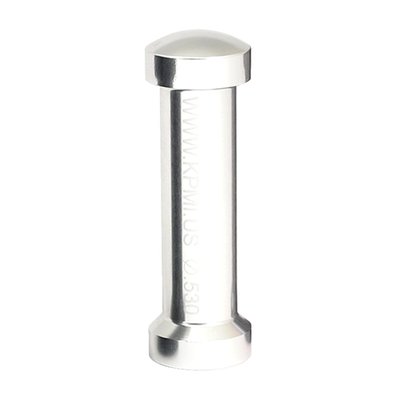

White anodized 6061-T6 aluminum. For 0.530" valve stem size. made to outlast the plastic ones by far. Color coded and laser etched with valve stem size for clear identification. Designed to fit OEM style valve seals.
Kibblewhite

KPMI, valve stem seal installation tool. White

#524088

Stock:Yes

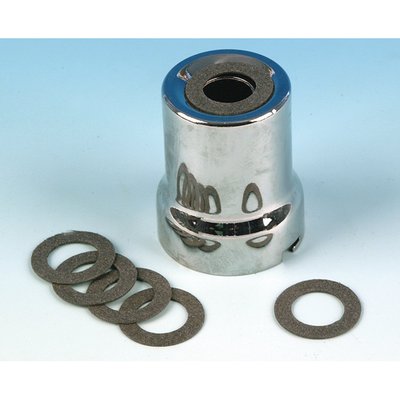

OEM replacement reference 18198-38, 167-38.
James Gaskets

James, valve guide gasket

#518297

Stock:Yes

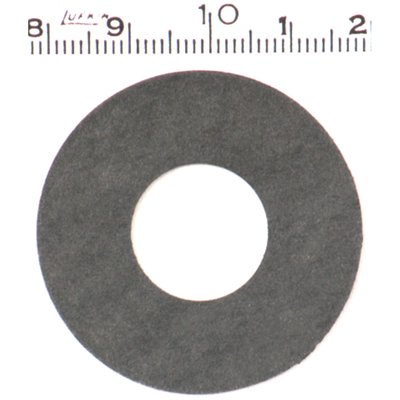

.045" thick paper on a steel core. OEM replacement reference 18265-37 / 176-37.
James Gaskets

James, valve guide gasket. .045" paper/steel core

#518303

Stock:Yes

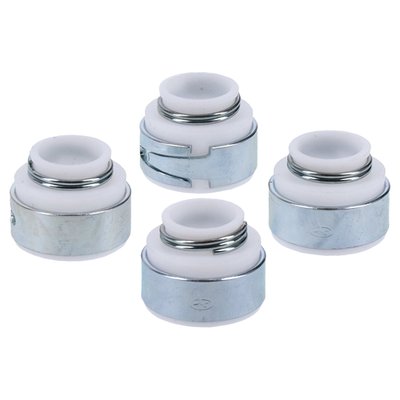

Manufactured with PTFE lining. Kibblewhite Precision Machining valve guide seals are compatible with OEM style valve guides. No machining required. Installation note: Valve guides made of PTFE require another fitment technique than 'regular' or non-PTFE valve guides, this is due to the PTFE material. They are typically 0.020” (0.50mm) smaller than the valve stem and guide top they’re designed to fit. - The guide top should have a decent chamfer - The valve stem should have a decent chamfer, but a mylar seal installation protector / installation capsule (501823 green 5/16" / 0.3125", 501824 Yellow 11/32" / 0.34375", 501825 3/8" / 0.375") is advised for easier installation over the valve stem - You have to kind of roll the seal around the valve tip while exerting downward pressure to get it started - Don't push directly on the very top of the seal to get it on to the guide, you’ll collapse the sealing area and tear the seal - A 12 point 12mm socket catches the shoulder of the guide pretty well and can be used to push the seal on to the guide until it just bottoms out. The choker wire around sealing area and the band around the area that fits the guide, combined with the hardness of the material itself makes the seal a tight fit and little harder to install than regular Viton seals. PTFE material does not have 'memory' and therefore is subject to creep. This creep allows the seal to conform to mating surfaces. Because of the ‘creep’ characteristic, the seal relaxes a bit after installation, and doesn’t drag on the valve stem as hard as it does during installation. The twin-spring design provides continuous tension on the valve guide and the valve stem of the valve during it's lifetime.
Kibblewhite

KPMI, int/exh. valve guide seal kit. PTFE

#524647

Stock:Yes

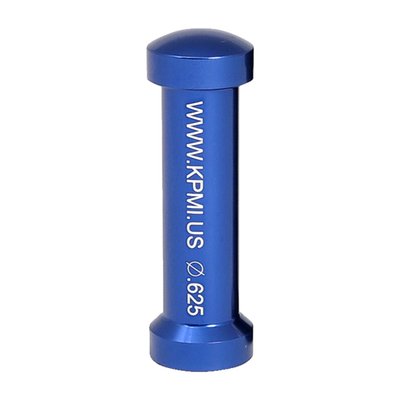

Blue anodized 6061-T6 aluminum. For 0.625" valve stem size. Made to outlast the plastic ones by far. Color coded and laser etched with valve stem size for clear identification. Designed to fit OEM style valve seals.
Kibblewhite

KPMI, valve stem seal installation tool. Blue

#524087

Stock:No

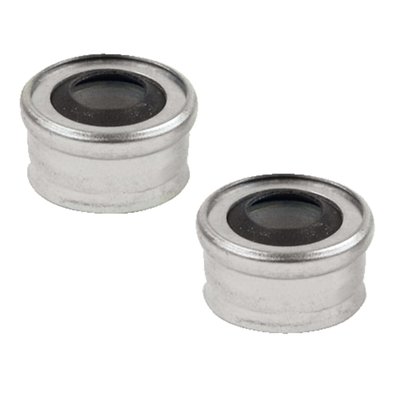

Viton heat resistant rubber. Kibblewhite Precision Machining valve guide seals are compatible with OEM style valve guides. No machining required.
Kibblewhite

Kpmi, valve guide seals. in/ex

#525450

Stock:Yes

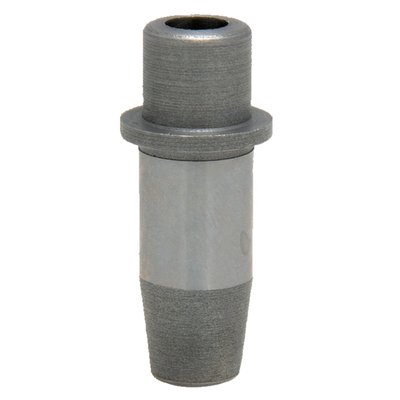

Cast iron. Standard size: 0.4750" O.D. (12.07mm); 0.2342" I.D. (5.95mm); 1.655" OAL (42.04mm). Cast Iron offers maximum durability and wear resistance for long distance touring. The standard since the invention of the piston engine.
Kibblewhite
Discontinued

KPMI, exhaust valve guide. Cast iron. STD

#588719

Stock:No

Cast Iron offers maximum durability and wear resistance for long distance touring. The standard since the invention of the piston engine. Note: Standard non-oversize dimensions (for reference only) are 0.4750" O.D. (12.07mm); 0.2342" I.D. (5.95mm); 1.655" OAL (42.04mm).
Kibblewhite
Discontinued

KPMI, exhaust valve guide. Cast iron. +.001"

#588720

Stock:No

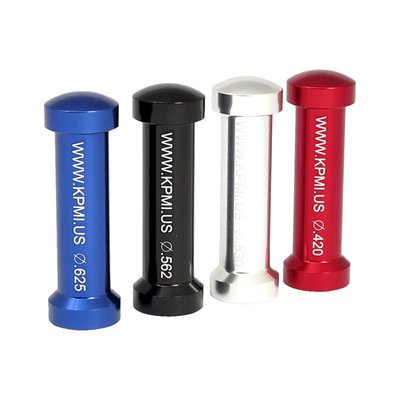

Set of 4 valve stem seal drivers. Includes 524089 black driver, for 0.562" valve guides. A blue driver, for 0.625" valve guides. A red driver, for 0.420" valve guides. The white driver, fits 0.530" valve guides. These are valve seal drivers made for the long haul. Manufactured from tough 6061-T6 aluminum and they will outlast the plastic ones by far. Color coded and laser etched with valve stem size for clear identification. Used to install OEM style valve seals.
Kibblewhite

KPMI, valve stem seal installation tool. Set

#524090

Stock:Yes

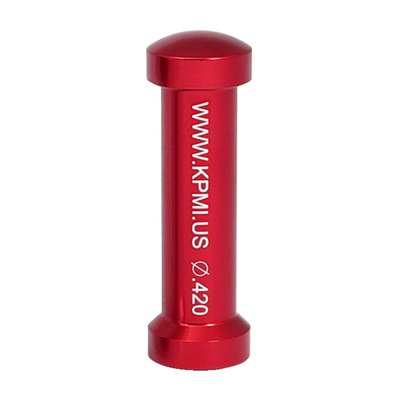

Red anodized 6061-T6 aluminum. For 0.420" valve stem size. made to outlast the plastic ones by far. Color coded and laser etched with valve stem size for clear identification. Designed to fit OEM style valve seals.
Kibblewhite

KPMI, valve stem seal installation tool. Red

#524086

Stock:Yes

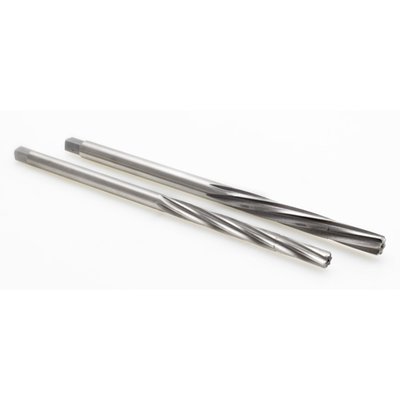

Outside diameter 0.2357" (5.98678mm) HSS. Cutting diameter tolerance +/- .0002". Overall length: 7-1/8" (181mm). Nickel finish. For use with KPMI Manganese Bronze & Cast Iron valve guides only. Note: Not for use on C630 Nickel Aluminum Bronze guides. Note: Once reamer is used on Cast Iron, it is not advisable to then use it on a bronze guide.
Kibblewhite

KPMI, valve guide reamer 6mm. Manganese & cast iron

#588729

Stock:Yes

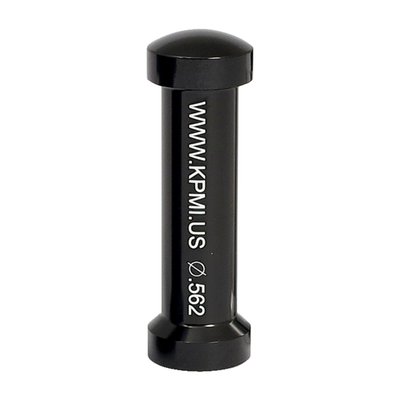

Black anodized 6061-T6 aluminum. For 0.562" valve stem size. Made to outlast the plastic ones by far. Color coded and laser etched with valve stem size for clear identification. Designed to fit OEM style valve seals.
Kibblewhite

KPMI, valve stem seal installation tool. Black

#524089

Stock:Yes

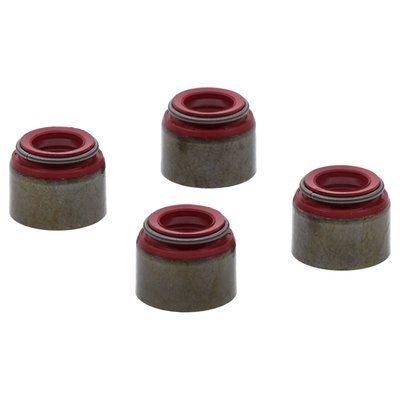

Viton heat resistant rubber. Kibblewhite Precision Machining valve guide seals are compatible with OEM style valve guides. No machining required.
Kibblewhite

KPMI, int/exh. valve guide seal kit. Viton

#524646

Stock:Yes

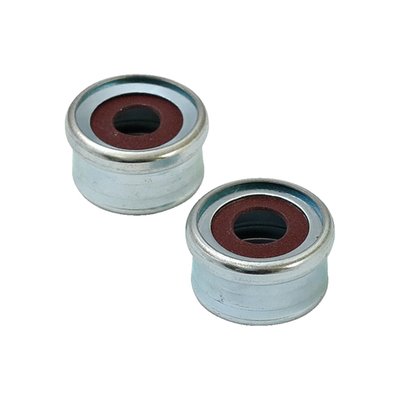

Viton heat resistant rubber. Kibblewhite Precision Machining valve guide seals are compatible with OEM style valve guides. No machining required.
Kibblewhite

KPMI, int/exh. valve guide seal set. Viton

#525451

Stock:Yes
